Filter

Overview

IdealPhotonics' optical filters are optical elements that selectively transmit or reflect light waves of specific wavelengths (or frequencies) to control the spectral composition of light.They allow light of the target wavelength band to pass through while blocking or attenuating other unwanted wavelengths, thereby achieving the filtering, enhancement, or suppression of optical signals.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

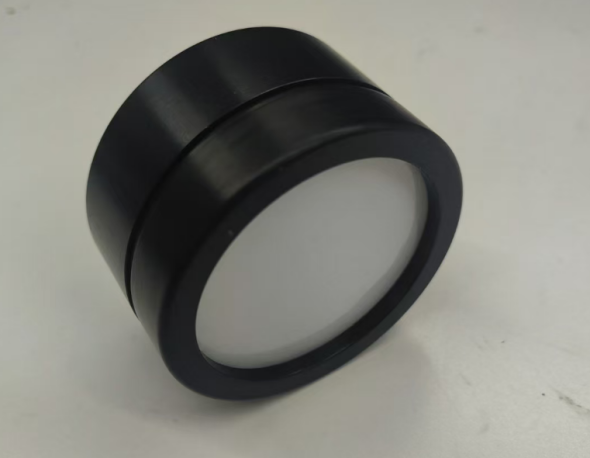

Terahertz Bandpass Filter

The Terahertz Bandpass Filter is a high-performance device specifically designed for the terahertz frequency range, capable of effectively addressing the filtering challenges in this band. The product adopts a specially designed perforated metal film structure, achieving precise filtering performance in the terahertz region. Featuring a narrow bandwidth, high transmission, and excellent out-of-band suppression, the filter also offers significant advantages such as a large optical aperture, compact structure, and lightweight design. It provides reliable technical support for terahertz imaging, spectroscopy, and communication systems.The filter consists of a series of specially designed metal films with perforations, whose structural dimensions are determined by the required frequency point. Customization is available to meet specific application requirements, with selectable center frequencies covering a range from 0.3 THz to 7 THz. These metal films are mounted on metal rings inside a cylindrical metal housing. The housing is made of aluminum alloy with a black anodized finish.To prevent contamination and physical damage, white or transparent polymer membranes are applied to both sides, ensuring a sufficiently large effective optical aperture while enhancing device signal-to-noise ratio. Two types of effective optical apertures are available:Round: standard clear aperture/outer diameter Φ54 mm / Φ64 mmSquare: standard clear aperture 60 mm × 60 mm / outer diameter Φ100 mm(All dimensions can be customized.)Additionally, the product supports customization of the optical aperture to meet demanding requirements for special optical paths or higher energy throughput. A clear product label is attached to the housing surface, indicating key information such as product model and center frequency.

Product InformationModel Center Frequency Operate

Terahertz Bandpass Filter MP-IP-WTF-THZ-64 0.3 THz ~ 7 THz Add to Cart

0 Selected Items Add to Cart

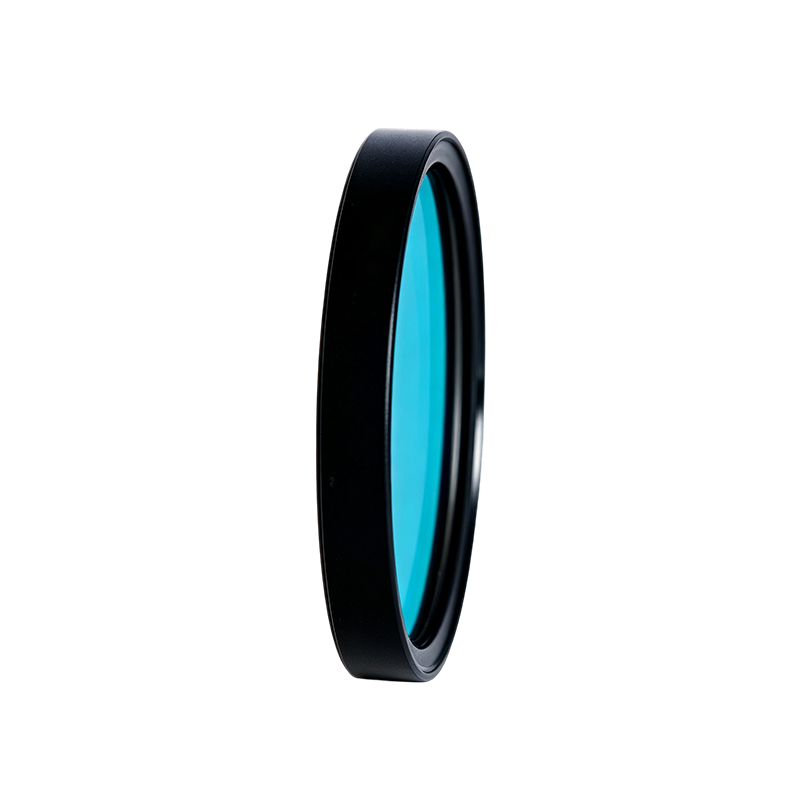

UV filter

This product is systematically classified based on multiple dimensions such as spectral characteristics, working principles, and wavelength ranges, covering everything from narrowband to broadband, from absorption-type to interference-type, and from UVA to UVC. It possesses core advantages such as high cut-off depth, precise wavelength selectivity, excellent environmental stability, and high damage threshold. It can be widely applied in modern scientific and technological fields that have strict requirements for ultraviolet (UV) spectral control, such as chemical analysis instruments, biomedical equipment, environmental monitoring systems, UV communication, and industrial flaw detection.

Product InformationModel Laser WavelengthTransmission Band Operate

224.3 nm Ultrasteep Long Pass Filter MP-LPF-224 224.3 nmTavg > 90% 235 -505.9 nm Add to Cart

244 nm Ultrasteep Long Pass Filter MP-LPF-244 244 nmTavg > 90% 247.6 – 550.4 nm Add to Cart

248.6 nm Laser Line Bandpass Filter MP-LLF-248 248.6 nmT > 40% 248.6 nm Add to Cart

248.6 nm Ultrasteep Long Pass Filter MP-LPF-248 248.6 nmTavg > 90% 261 – 560.8 nm Add to Cart

325 nm Ultrasteep Long Pass Filter MP-LPF-325 325 nmTavg > 90% 329.2 – 733.1 nm Add to Cart

325 nm Laser Line Bandpass Filter MP-LLF-325 325 nmT > 80% 325 nm Add to Cart

355 nm Ultrasteep Long Pass Filter MP-LPF-355 355nmTavg > 93% 359.6–800.8 nm Add to Cart

355 nm Laser Line Bandpass Filter MP-LLF-325 355nmT > 80% 355 nm Add to Cart

280 nm Bandpass Filter MP-BPF-280 280 nmTavg > 65% 270 – 290 nm Add to Cart

360 nm Bandpass Filter MP-BPF-360 360 nmTavg > 90% 348 – 371 nm Add to Cart

395 nm Narrow Bandpass Optical Filter MP‑NBP‑395 395 nmTavg > 85% 389.5–400.5 nm Add to Cart

Show All

0 Selected Items Add to Cart

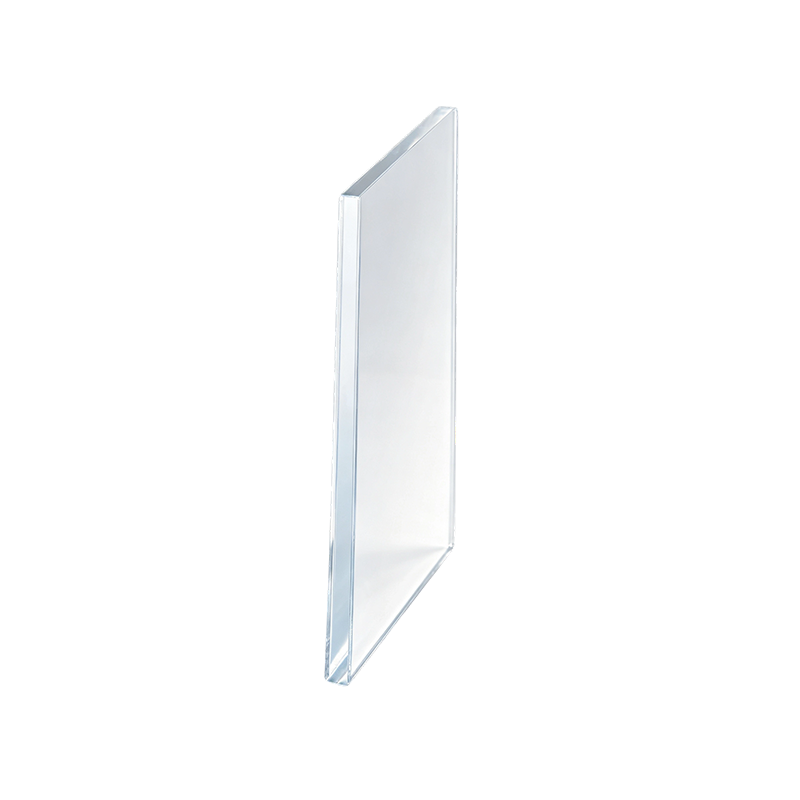

Visible band filter

Visible light band filters are optical components that selectively transmit, cut off, or separate specific colors (wavelengths) of light through absorption or interference effects. They are widely used in photography, display, lighting, and machine vision to correct colors or extract specific spectral information.

Product InformationModel Laser WavelengthTransmission Band Operate

405-488-532-635 nm Multi‑Band Laser Notch Filter MP-MNF-405-488-532-635 ~ 488nm ~ 405nm 400 – 410nm 488nm 532nm 631 – 640nmTavg > 80% 350 – 392 nm Tavg > 93% 418 – 477 nm Tavg > 93% 498.5 – 519.5 nm Tavg > 93% 544.5 – 614 nm Tavg > 93% 656.5 – 1600 nm Add to Cart

405-488-561-635 nm Multi‑Band Laser Notch Filter MP-MNF-405-488-561-635 405-488-561-635 nmTavg > 80% 350 – 392 nm Tavg > 93% 418 – 477 nm Tavg > 93% 498.5 – 547.5 nm Tavg > 93% 498.5 – 547.5 nm Tavg > 93% 656.5 – 1600 nm Add to Cart

405 nm Ultrasteep Raman Long-Pass Filter MP-LPF-405 405 nmTavg > 93 % 410.3 – 913.5 nm Add to Cart

407 nm Ultrasteep Raman Long-Pass Filter MP-LPF-407 407 nmTavg > 93 % 412.3–918 nm Add to Cart

441.6 nm Ultrasteep Raman Long-Pass Filter MP-LPF-442 441.6 nmTavg > 93 % 447.3–996.1 nm Add to Cart

457.9 nm Ultrasteep Raman Long-Pass Filter MP-LPF-458 457.9 nmTavg > 93 % 463.9–1032.9 nm Add to Cart

473 nm Ultrasteep Raman Long-Pass Filter MP-LPF-473 473 nmTavg > 93 % 479.1–1066.9 nm Add to Cart

488 nm Ultrasteep Raman Long-Pass Filter MP-LPF-488 488 nmTavg > 93 % 491.2–1100.8 nm Add to Cart

514.5 nm Ultrasteep Raman Long-Pass Filter MP-LPF-514 514.5 nmTavg > 93 % 521.2–1160.5 nm Add to Cart

532 nm Ultrasteep Raman Long-Pass Filter MP-LPF-532 532 nmTavg > 93 % 538.9–1200 nm Add to Cart

561.4 nm Ultrasteep Raman Long-Pass Filter MP-LPF-561 561.4 nmTavg > 93 % 565–1266.3 nm Add to Cart

632.8 nm Ultrasteep Raman Long-Pass Filter MP-LPF-633 632.8 nmTavg > 93 % 641–1427.4 nm Add to Cart

647.1 nm Ultrasteep Raman Long-Pass Filter MP-LPF-647 647.1 nmTavg > 93 % 655.5–1459.6 nm Add to Cart

664 nm Ultrasteep Raman Long-Pass Filter MP-LPF-664 664 nmTavg > 93 % 672.6–1497.7 nm Add to Cart

671 nm Ultrasteep Raman Long-Pass Filter MP-LPF-671 671 nmTavg > 93 % 679.7–1513.5 nm Add to Cart

406 nm Narrow Bandpass Optical Filter MP-NBP-406 406 nmTavg > 85% 398.5–413.5 nm Add to Cart

460 nm Narrow Bandpass Optical Filter MP-NBP-460 460 nmTavg > 90% 453–467 nm Add to Cart

567 nm Narrow Bandpass Optical Filter MP-NBP-567 567 nmTavg > 95% 559.5–574.5 nm Add to Cart

427 nm Bandpass Filter MP-BPF-427 427 nmTavg > 93% 422 – 432 nm Add to Cart

442 nm Long-Pass Dichroic Filter MP-LWP-442 464.8 nmTavg > 93% 466.1 – 1200 nm Add to Cart

400 nm Narrow Bandpass Optical Filter MP-NBP-400 400 nmTavg > 90% 394–406 nm Add to Cart

405 nm Laser Line Bandpass Filter MP-LLF-405 405nmT > 90% 405 nm Add to Cart

405 nm Narrow Bandpass Optical Filter MP-NBP-405 405nmTavg > 87% 400–410 nm Add to Cart

460 nm Narrow Bandpass Optical Filter MP-NBP-460 460 nmTavg > 90% 453–467 nm Add to Cart

685 nm Bandpass Filter MP-BPF-685 685 nmTavg > 93% 680 – 690 nm Add to Cart

680 nm Bandpass Filter MP-BPF-680 680 nmTavg > 93% 673.5 – 686.5 nm Add to Cart

671 nm Laser Line Bandpass Filter MP-LLF-671 671nmT > 90% 671 nm Add to Cart

661 nm Bandpass Filter MP-BPF-661 661 nmTavg > 90% 651 – 671 nm Add to Cart

Show All

0 Selected Items Add to Cart

Near-Infrared Filters

A near-infrared filter is an optical component that selectively transmits or blocks light in the near-infrared wavelength range. It is primarily classified into absorption-type filters relying on material absorption and thin-film-type filters relying on interference effects, and is used in imaging, sensing, detection, and other scenarios.

Product InformationModel Laser WavelengthTransmission Band Operate

785 nm Raman Short-pass Edge Filter MP-SPF-785 785 nmTavg > 80 % 350–400 nm Add to Cart

785 nm Raman Edge Longpass Filter MP-LPF-785 785 nmTavg > 93 % 812.1–1200 nm Add to Cart

830 nm Ultra-Steep Long-Wave Pass Filter MP-LPF-830 830 nmTavg > 93 % 835.4–1872.2 nm Add to Cart

808 nm Laser Line Filter MP-LLF-808 808 nmT > 90% 808nm Add to Cart

808 nm Ultra-Steep Long-Wave Pass Filter MP-LPF-808 808 nmTavg > 93 % 813.3–1822.3 nm Add to Cart

980 nm Ultra-Steep Long-Wave Pass Filter MP-LPF-980 980nmTavg > 93% 986.4–2000 nm Add to Cart

1064 nm Ultra-Steep Long-Wave Pass Filter MP-LPF-1064 1064nmTavg > 93% 1070.9–2000 nm Add to Cart

760 nm Narrow Bandpass Optical Filter MP‑NBP‑760 760 nmTavg > 93% 754–766 nm Add to Cart

786 nm Narrow Bandpass Optical Filter MP‑NBP‑786 786 nmTavg > 93% 775–797 nm Add to Cart

860 nm Narrow Bandpass Optical Filter MP‑NBP‑860 860 nmTavg > 93% 854.5–865.5 nm Add to Cart

850 nm Narrow Bandpass Optical Filter MP‑NBP‑850 850 nmTavg > 93% 845–855 nm Add to Cart

1055 nm Narrow Bandpass Optical Filter MP‑NBP‑1055 1055 nmTavg > 93% 1020 – 1090 nm Add to Cart

810 nm Narrow Bandpass Optical Filter MP‑NBP‑810 810 nmTavg > 90% 805 – 815 nm Add to Cart

Show All

0 Selected Items Add to Cart
