484nm Long-Pass Dichroic Filter

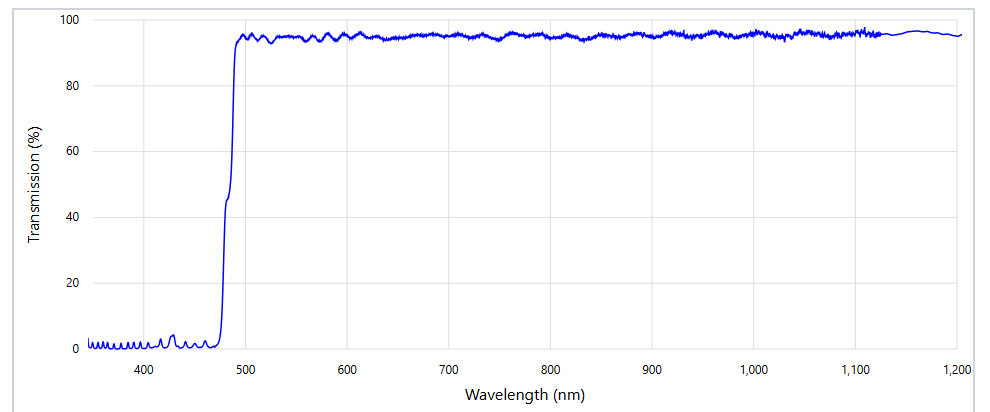

This product is a 484 nm longpass dichroic beamsplitter specifically designed for optical systems with a 45°angle of incidence. It employs a highperformance dielectric multilayer coating process to achieve highly efficient reflection in the 350-475 nm band and high transmission with an average transmittance greater than 93% in the 492.3-1200 nm band. It features steep cuton edge, precise wavelength separation, low wavefront error, and excellent optical stability. The filter meets the optical performance requirements for imagesplitting applications, with a reflected wavefront error below 0.2λ (PV @ 632.8 nm), effectively ensuring imaging quality and system resolution. It is suitable for separating common fluorophore pairs such as DAPI/FITC and BFP/GFP. Widely used in fluorescence microscopy, confocal microscopy, multichannel fluorescence detection, biomedical analysis, flow cytometry, laser beam splitting, and other highprecision optical instruments, it is an ideal optical component for efficient spectral separation and highquality imaging in life sciences, medical diagnostics, and research.
