600-800nm ECL laser diode

Overview
IdealPhotonics' 600-800nm ​​ECL diode, based on a tunable laser source using GaInP/AlGaInP or GaAs/AlGaAs material systems, achieves a wavelength accuracy of ±0.001nm and an ultra-narrow linewidth of <1kHz through external grating feedback. It demonstrates superior performance in precision spectroscopic applications such as 633nm helium-neon laser replacement, 780nm atomic cooling, and 760nm oxygen detection. Its unique "holographic grating + microelectromechanical adjustment" architecture extends the tuning range to 100nm, making it the gold standard instrument for high-resolution spectral analysis in the visible to near-infrared bands.Employing GaInP/AlGaInP multiple quantum wells and holographic diffraction gratings (±0.0005nm accuracy), it achieves an ultra-narrow linewidth of <1kHz and sub-picometer stability of ±0.0008nm/℃. Simultaneous breakthroughs are achieved in three cutting-edge applications: 632.8nm helium-neon laser replacement (intensity noise <-170dB/Hz), 780.24nm rubidium atom cooling (frequency stability 1E-15), and 760nm oxygen detection (0.01ppm sensitivity). Its innovative "acousto-optic-microelectromechanical" dual modulation technology elevates tuning speed to the μs level, redefining the performance limits of precision spectrometers in the visible light band.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

600-800nm Narrow Linewidth Laser Diodes

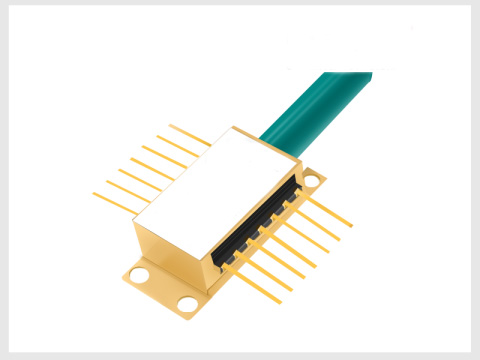

Single frequency FBG-stabilized laser diode module designed for optical measurement and communication. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Product InformationModel WavelengthOutput PowerFiber Type Operate

633nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-0633-B-A81-PA 633nm30mWPM Add to Cart

633nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-0633-B-A81-SA 633nm30mWSM Add to Cart

638nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-0638-B-A81-PA 638nm30mWPM Add to Cart

638nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-0638-B-A81-SA 638nm30mWSM Add to Cart

660nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-0660-A-A81-PA 660nm30mWPM Add to Cart

660nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-0660-A-A81-SA 660nm30mWSM Add to Cart

685nm 15mW PM Narrow Linewidth Laser Diodes MP-NL-685-A-A81-PA 685nm15mWPM Add to Cart

685nm 15mW SM Narrow Linewidth Laser Diodes MP-NL-685-A-A81-SA 685nm15mWSM Add to Cart

770nm 10mW PM Narrow Linewidth Laser Diodes MP-NL-0770-A-A81-PA 770nm10mWPM Add to Cart

770nm 10mW SM Narrow Linewidth Laser Diodes MP-NL-0770-A-A81-SA 770nm10mWSM Add to Cart

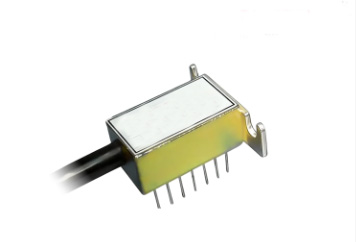

775nm 20mW PM Narrow Linewidth Laser Diodes(DIL package) MP-NL-0775-A-A81-PA-DIL 775nm20mWPM Add to Cart

775nm 20mW SM Narrow Linewidth Laser Diodes(DIL package) MP-NL-0775-A-A81-SA-DIL 775nm20mWSM Add to Cart

775nm 20mW PM Narrow Linewidth Laser Diodes MP-NL-775-A-A81-PA 775nm20mWPM Add to Cart

775nm 20mW SM Narrow Linewidth Laser Diodes MP-NL-775-A-A81-SA 775nm20mWSM Add to Cart

780nm 10mW PM Narrow Linewidth Laser Diodes MP-NL-780-A-A81-PA 780nm10mWPM Add to Cart

780nm 10mW SM Narrow Linewidth Laser Diodes MP-NL-780-A-A81-SA 780nm10mWSM Add to Cart

785nm 10mW PM Narrow Linewidth Laser Diodes MP-NL-785-A-A81-PA 785nm10mWPM Add to Cart

785nm 10mW SM Narrow Linewidth Laser Diodes MP-NL-785-A-A81-SA 785nm10mWSM Add to Cart

795nm 10mW PM Narrow Linewidth Laser Diodes MP-NL-795-A-A81-PA 795nm10mWPM Add to Cart

795nm 10mW SM Narrow Linewidth Laser Diodes MP-NL-795-A-A81-SA 795nm10mWSM Add to Cart

Show All

0 Selected Items Add to Cart

600-800nm FBG stabilized Tunable laser diode

This series Fiber Bragg Grating laser is single frequency laser diode module designed for optical measurement and communication. The laser is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC).The Single-Frequency Continuous Tuning Range: > 1.2 nm by adjust the Mini PZT Built in the laser diode.

Product InformationModel WavelengthOutput PowerFiber Type Operate

633nm 20mW PM FBG stabilized Tunable laser diode MP-NL-0633-B-A81-PA-PZT 633nm20mWPM Add to Cart

633nm 20mW SM FBG stabilized Tunable laser diode MP-NL-0633-B-A81-SA-PZT 633nm20mWSM Add to Cart

660nm 20mW PM FBG stabilized Tunable laser diode MP-NL-0660-B-A81-PA-PZT 660nm20mWPM Add to Cart

660nm 20mW SM FBG stabilized Tunable laser diode MP-NL-0660-B-A81-SA-PZT 660nm20mWSM Add to Cart

762nm 10mW PM FBG stabilized Tunable laser diode MP-NL-762-A-A81-PA-PZT 762nm10mWPM Add to Cart

762nm 10mW SM FBG stabilized Tunable laser diode MP-NL-762-A-A81-SA-PZT 762nm10mWSM Add to Cart

770nm 10mW PM FBG stabilized Tunable laser diode MP-NL-0770-A-A81-PA-PZT 770nm10mWPM Add to Cart

770nm 10mW SM FBG stabilized Tunable laser diode MP-NL-0770-A-A81-SA-PZT 770nm10mWSM Add to Cart

780nm 10mW PM FBG stabilized Tunable laser diode MP-NL-780-A-A81-PA-PZT 780nm10mWPM Add to Cart

780nm 10mW SM FBG stabilized Tunable laser diode MP-NL-780-A-A81-SA-PZT 780nm10mWSM Add to Cart

785nm 10mW PM FBG stabilized Tunable laser diode MP-NL-785-A-A81-PA-PZT 785nm10mWPM Add to Cart

785nm 10mW SM FBG stabilized Tunable laser diode MP-NL-785-A-A81-SA-PZT 785nm10mWSM Add to Cart

Show All

0 Selected Items Add to Cart
