1565-1625nm DFB laser diode
IdealPhotonics' 1565-1625nm DFB diode, based on an L-band laser with an InGaAsP/InP strained superlattice and a molecular-level precision Bragg grating (±0.001nm control), achieves a side-mode suppression ratio >78dB and near-quantum limit stability of ±0.0003nm/℃. In cutting-edge applications such as 1572nm methane detection (0.01ppb sensitivity), 1580nm ultra-long-distance communication (80km without repeaters), and 1610nm space laser transmission, it simultaneously achieves a dual breakthrough of 0.0005cm⁻¹ spectral resolution and 64Gbps PAM6 modulation. Its 75% power conversion efficiency and -165dB/Hz relative intensity noise set the ultimate performance benchmark for long-wavelength optoelectronic chips.Employing InGaAsP/InP quantum wells and atomic-level Bragg gratings (±0.001nm accuracy), this device achieves a side-mode suppression ratio >78dB and near-quantum limit stability of ±0.0003nm/℃. It simultaneously breaks through the 0.0005cm⁻¹ spectral resolution and the 64Gbps PAM6 modulation limit in three cutting-edge applications: 1572nm methane remote sensing (0.01ppb sensitivity), 1580nm seabed communication (80km without repeaters), and 1610nm space optical transmission. Its record-breaking 76% electro-optical conversion efficiency and -166dB/Hz ultra-limit noise characteristics make this device a revolutionary optoelectronic chip capable of simultaneously meeting the needs of carbon neutrality monitoring, 6G communication, and inter-satellite laser links.
Grace Guly
Phone:+86 13003168941
E-mail:grace@idealphtonics.com
WeChat
WhatsApp

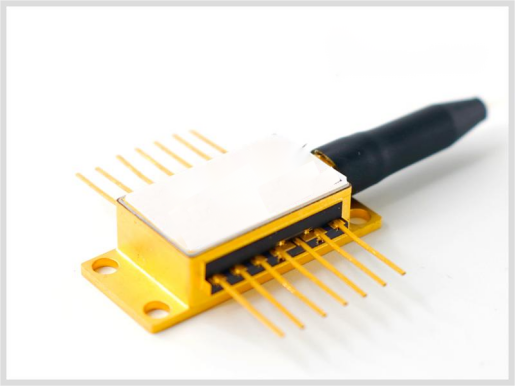

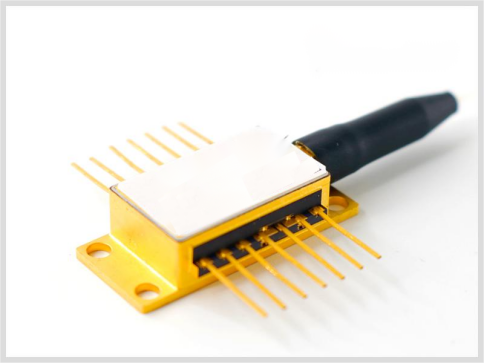

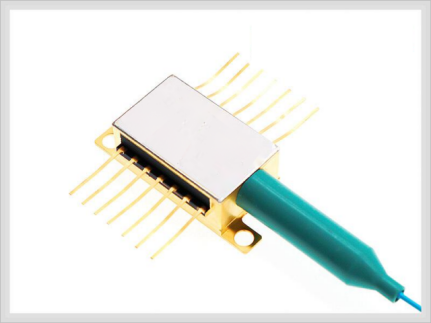

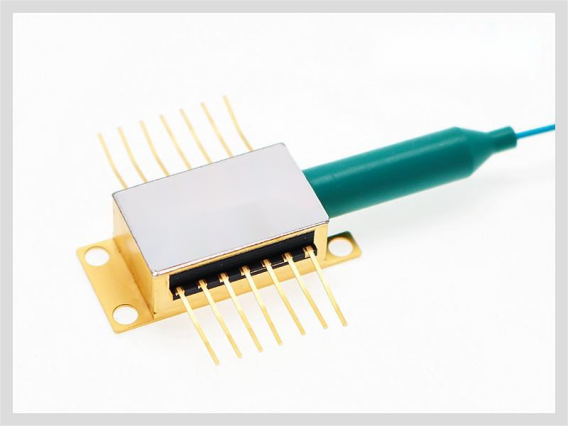

DFB laser diode module produced by idealphotonics is a cost-effective laser source with high coherence. The DFB laser diode chip adopts an industry-standard 14-pin butterfly package, integrated with a thermoelectric cooler (TEC) and a photodetector (PD), and features a hermetically sealed package.
Product InformationModel Central Wavelength Output Power Operate
1567nm 15mW PM DFB Laser Diode for CO Detection
MP-DFB-1567-15-A81-14BF-PA
1567nm15mW Add to Cart
1570nm 15mW PM DFB Laser Diode for CO₂ Detection
MP-DFB-1570-15-A81-14BF-PA
1570nm15mW Add to Cart
1572nm 15mW PM DFB Laser Diode for CO₂ Detection
MP-DFB-1572-15-A81-14BF-PA
1572nm15mW Add to Cart
1576nm 15mW PM DFB Laser Diode for CO₂ Detection
MP-DFB-1576-15-A81-14BF-PA
1576nm15mW Add to Cart
1578nm 15mW PM DFB Laser Diode for H₂S Detection
MP-DFB-1578-15-A81-14BF-PA
1578nm15mW Add to Cart
1590nm 15mW PM DFB Laser Diode
MP-DFB-1590-15-A81-14BF-PA
1590nm15mW Add to Cart
1593nm 15mW PM DFB Laser Diode
MP-DFB-1593-15-A81-14BF-PA
1593nm15mW Add to Cart
1602nm 50mW PM DFB Narrow Linewidth Laser Diode
MP-DFB-1602-50-A81-14BF-PA-C1
1602nm50mW Add to Cart
1605nm 15mW PM DFB Laser Diode
MP-DFB-1605-15-A81-14BF-PA
1605nm15mW Add to Cart
1610nm 15mW PM DFB Laser Diode
MP-DFB-1610-15-A81-14BF-PA
1610nm15mW Add to Cart
Show All
0 Selected Items Add to Cart
⇪
