750-830nm VCSEL laser diode

Overview

IdealPhotonics' 750-830nm VCSEL diodes are based on the mature GaAs/AlGaAs material system, offering both excellent performance and reliability. They have key application value in communications, sensing, and other fields, and are continuously being developed towards higher power and higher data rates.Based on the highly mature GaAs/AlGaAs material system, they combine high efficiency, high reliability, and low cost. They hold a dominant position in the communications and sensing fields and are being developed towards higher power and higher data rates.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

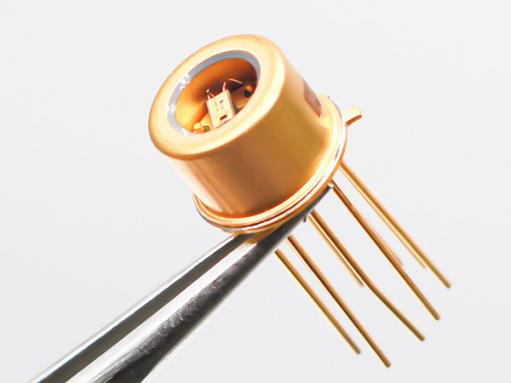

VCSEL single-mode vertical cavity surface emitting laser 760nm 0.3mW

The 760nm single-mode vertical cavity surface emitting laser (VCSEL) has the advantages of high output power, narrow linewidth, and good consistency. With a tuning range of 2nm, it is designed specifically for tunable semiconductor laser absorption spectroscopy (TDLAS) applications and has built-in anti-static (ESD) protection TO39 packaging

Product InformationModel Emission wavelengthOutput power Operate

760nm single mode vertical cavity surface emitting laser VCSEL TO39 P760/01_2 MP-VCS-760-0.3-TO39-SM-TEC 760nm0.3mW Add to Cart

0 Selected Items Add to Cart

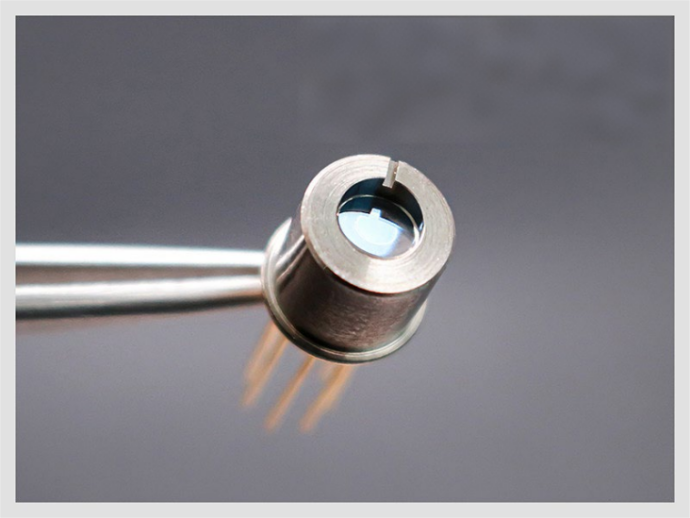

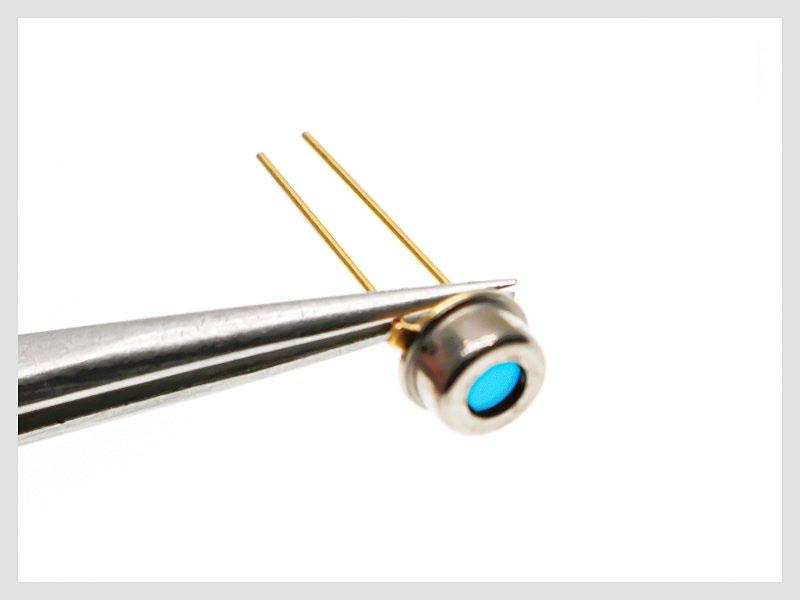

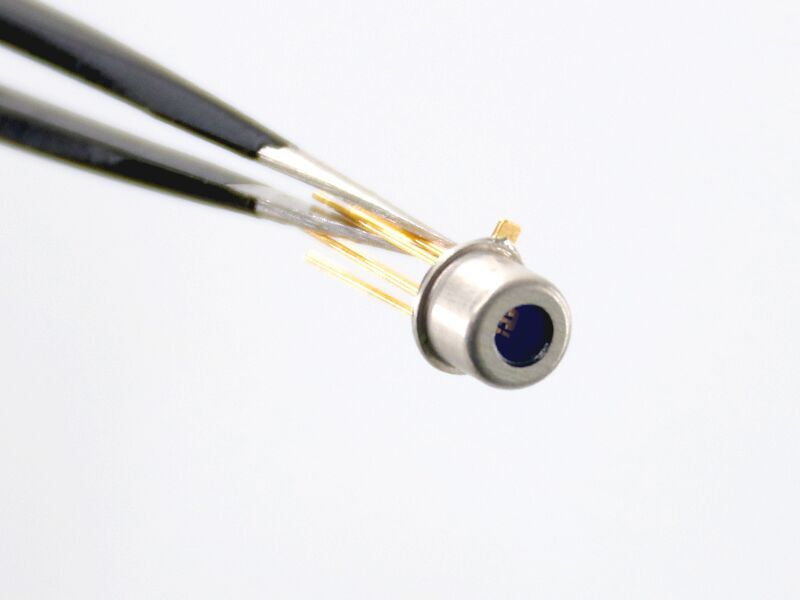

750-830nm VCSEL Laser Diode TO package

The  vertical-cavity surface-emitting laser is a GaAsP/AlGaAs single-mode semiconductor laser grown via Metal-Organic Vapor Phase Epitaxy (MOVPE) process. Adopting TO39 metal hermetic package, it realizes wavelength tuning by adjusting laser drive current and operating temperature. The package integrates a built-in Thermoelectric Cooler (TEC) and a monitoring Photodetector (PD).

Product InformationModel Center Wavelength Operate

760nm 0.5mW SM VCSEL laser diode with TEC MP-VCS-760-0.5-A81-TO39-SM-TEC 760nm Add to Cart

760nm 0.5mW SM VCSEL laser diode without TEC MP-VCS-760-0.5-A82-TO46-SM 760nm Add to Cart

763nm 0.5mW SM VCSEL laser diode with TEC MP-VCS-763-0.5-A82-TO39-SM-TEC 763nm Add to Cart

763nm 0.5mW SM VCSEL laser diode without TEC MP-VCS-763-0.5-A82-TO46-SM 763nm Add to Cart

794.7nm 0.5mW SM VCSEL laser diode with TEC MP-VCS-794.7-0.5-A81-TO5-SM-TEC 794.7nm Add to Cart

760nm 1mW TO5 SM VCSEL laser diode MP-VCS-760-1-TO5-SM-TEC 760nm Add to Cart

763nm 1mW TO8 SM VCSEL laser diode MP-VCS-763-1-TO8-SM-TEC 763nm Add to Cart

795nm 0.1mW TO46 VCSEL Laser Diode with TEC MP-VCS-795-0.1-TO46-TEC 795nm Add to Cart

Show All

0 Selected Items Add to Cart

795nm VCSEL GaAs Chip

A Vertical-Cavity Surface-Emitting Laser (VCSEL) is a type of semiconductor laser whose laser beam emits perpendicularly from the top surface.Developed based on Gallium Arsenide (GaAs) semiconductor material, it is distinct from LEDs (Light-Emitting Diodes) and LDs (Laser Diodes). Its structure consists of mirror layers, an active region, and metal contact layers. The two emission mirrors are P-type and N-type Distributed Bragg Reflectors (DBR). The active region is composed of quantum wells. An ohmic contact is formed by depositing a metal contact layer on the surface of the P-type DBR, with a circular emission aperture fabricated on the P-type DBR for laser output.Die parameters: 2222; 795 nm; Single-mode; 1 M; S5, S6, S7; 0.13 mW; chip size 0.16×0.20 mm

Product InformationModel Center Wavelength Operate

795nm 0.13mW GaAs SM Low-Power VCSEL Die(Group 1) MP-VCS-795-0.13-DIE1-SM 795nm Add to Cart

795nm 0.13mW GaAs SM Low-Power VCSEL Die(Group 2) MP-VCS-795-0.13-DIE2-SM 795nm Add to Cart

795nm 0.13mW GaAs SM Low-Power VCSEL Die(Group 3) MP-VCS-795-0.13-DIE3-SM 795nm Add to Cart

795nm 0.13mW GaAs SM Low-Power VCSEL Die(Group 4) MP-VCS-795-0.13-DIE4-SM 795nm Add to Cart

795nm 0.13mW GaAs SM Low-Power VCSEL Die(Group 5) MP-VCS-795-0.13-DIE5-SM 795nm Add to Cart

Show All

0 Selected Items Add to Cart
