Photonic Crystal Fiber(PCF)

Photonic Crystal Fiber(PCF)

Overview

Photonic Crystal Fiber is a novel microstructured optical fiber based on the photonic bandgap effect or an enhanced total internal reflection principle. Its cladding region features periodically arranged micro air holes, and by controlling the size, spacing, and arrangement of these holes, it enables flexible dispersion management, endless single-mode transmission, high nonlinearity, and controllable birefringence—capabilities difficult to achieve with conventional fibers. This unique structure makes it an ideal medium for light transmission in advanced applications such as supercontinuum generation, nonlinear frequency conversion, and precision fiber-optic sensing.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

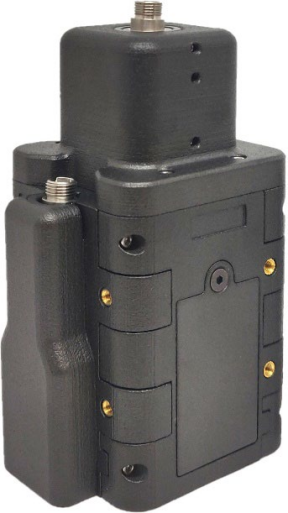

Fixed 2D MOT Beam Delivery Module

The Fixed 2D MOT Beam Delivery Module is a stationary two-dimensional magneto-optical trap (2D MOT) beam delivery system designed for cold atom physics experiments, providing a stable and pre-aligned optical path for laser cooling and atomic beam collimation.

Product InformationModel DimensionsTypical Atom Flux Operate

Fixed 2D MOT Beam Delivery Module MP-MOT-67-67-112 67 mm × 67 mm × 112 mm 2.63 in × 2.63 in × 4.41 inm>10⁹ pre‑cooled atoms per second Add to Cart

0 Selected Items Add to Cart

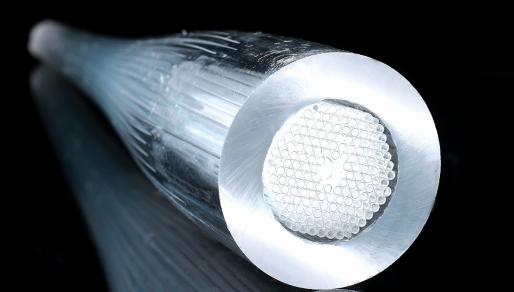

Photonic Crystal Fiber

Photonic crystal fiber (PCF) is a specialty fiber that achieves light field confinement and propagation characteristics control by introducing periodic or specifically arranged microstructure air holes in the fiber cladding.

Product InformationModel Operating WavelengthCore / Cladding DiameterAttenuation Operate

Fluorine-Doped Core Photonic Crystal Fiber MP‑FD‑PCF‑1550‑5.5/125 1550 nm5.5 μm / 125.0±2.0 μm≤10.0 dB/km Add to Cart

Multi-Core Photonic Crystal Fiber MP‑MC‑PCF‑1550‑4.5/125 1550 nm4.5 μm / 125.0±2.0 μm≤10.0 dB/km Add to Cart

Photosensitive Photonic Crystal Fiber MP-PS-PCF-1550-0.6/125 1550 nm0.6 μm / 125.0±2.0 μm≤0.6 dB/km Add to Cart

Highly Nonlinear Photonic Crystal Fiber MP-HN-PCF-1550-3.5/125 1550 nm3.5μm / 125.0±2.0 μm≤5.0 dB/km Add to Cart

0 Selected Items Add to Cart
