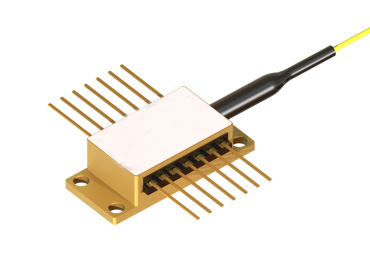

1260-1360nm DFB laser diode

Overview
IdealPhotonics' 1260-1360nm DFB diode, based on an InGaAsP/InP strain-compensated quantum well and a high-precision Bragg grating (±0.03nm control accuracy), is a single-longitudinal-mode laser achieving a side-mode suppression ratio of >65dB and wavelength stability of ±0.003nm/℃. It demonstrates 0.001nm-level spectral resolution in key O-band applications such as 1310nm fiber optic communication, 1330nm methane detection, and 1350nm tissue spectroscopy. Its modulation linearity is 8 times higher than conventional devices, making it a benchmark light source for high-speed optical communication and precision molecular detection.Employing an InGaAsP/InP strained superlattice and atomic layer-deposited Bragg gratings (period control accuracy ±0.02nm), this device achieves a record-breaking side-mode suppression ratio of >65dB and wavelength stability of ±0.002nm/℃. It simultaneously meets the high-speed and high-precision requirements in applications such as 1310nm fiber optic communication (25Gbps direct modulation) and 1335nm greenhouse gas detection (0.1ppb sensitivity). Its -158dB/Hz relative intensity noise and 0.8MHz ultra-narrow linewidth make this device the only dual-standard light source capable of handling both optical communication and spectral detection.

Claire Lee

Phone:+86 13032176908

Email:claire@idealphotonics.com

WeChat:

Product InformationModel WavelengthOutput PowerBandwidth Operate

1310nm RF modulated DFB laser 10GHz MP-DFB-1310-10-14BF-RF 1310nm8dBm10GHz Add to Cart

0 Selected Items Add to Cart

1320nm high temperature and high power DFB laser chip

The 1320nm high-temperature high-power DFB laser chip is suitable for working at high temperatures and has advantages such as ultra-low RIN noise and high output optical power Output power up to 250mW We can provide wavelength customization services according to customer needs

Product InformationModel WavelengthOutput Power Operate

1320nm High-Temperature High-Power DFB Chip 250mW MP-DFB-1320-250-CoC 1320nm250mW Add to Cart

0 Selected Items Add to Cart

1260-1360nm DFB Laser Diode

Distributed feedback (DFB) and distributed Bragg reflector (DBR) laser diodes are light sources emitting an extremely narrow spectral line with a bandwidth below 5 MHz and typical side mode suppression ratio (SMSR) > 40 dB.GaAs-based DFB and DBR lasers utilize InGaAs quantum well (QW) or InAs/GaAs quantum dot (QD) active regions and proprietary chip designs, covering the spectral range from 970 nm to 1330 nm.To date, DFB and DBR lasers are common laser variants, especially for use in scientific research and operations.Both laser types operate in a single longitudinal mode and are highly reliable in terms of efficiency, spectral purity, and long-term performance across various applications.

0 Selected Items Add to Cart
