900-1100nm ECL laser diode

Overview
IdealPhotonics' 900-1100nm ECL diode, based on an external cavity tunable laser using InGaAs/GaAs materials, achieves a wavelength accuracy of 0.0008nm and a linewidth of <3kHz through transmission grating feedback and precision piezoelectric drive technology. It exhibits excellent stability of ±0.0015nm/℃ in near-infrared applications such as 980nm fiber amplification, 1064nm precision machining, and 1080nm bioimaging. Its innovative "acousto-optic-electrothermal dual-tuning" architecture extends the tuning range to 150nm, making it a benchmark device for high-power precision spectral detection in the short-wave infrared band.Employing InGaAs/GaAs quantum wells and transmission-type blazed gratings (±0.0006nm accuracy), it achieves an ultra-narrow linewidth of <2.5kHz and sub-picometer stability of ±0.001nm/℃. It achieves simultaneous breakthroughs in three major industrial-medical cross-domain applications: 976nm fiber laser pumping (2W output), 1064nm precision machining (μm-level accuracy), and 1080nm deep tissue imaging. Its innovative "acousto-optic-electrothermal" hybrid tuning technology increases the spectral scanning speed to 100Hz, and combined with a 150nm ultra-wide tuning range, it redefines the performance paradigm of short-wave infrared high-power precision spectrometers.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

900-1100nm Narrow Linewidth Laser Diodes

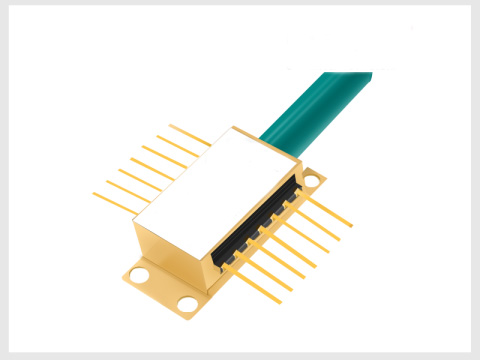

Single frequency FBG-stabilized laser diode module designed for optical measurement and communication. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Product InformationModel WavelengthOutput PowerFiber Type Operate

905nm 10mW PM Narrow Linewidth Laser Diodes MP-NL-905-A-A81-PA 905nm10mWPM Add to Cart

905nm 10mW SM Narrow Linewidth Laser Diodes MP-NL-905-A-A81-SA 905nm10mWSM Add to Cart

915nm 6mW PM Narrow Linewidth Laser Diodes MP-NL-915-A-A81-PA 915nm6mWPM Add to Cart

915nm 6mW SM Narrow Linewidth Laser Diodes MP-NL-915-A-A81-SA 915nm6mWSM Add to Cart

930nm 20mW PM Narrow Linewidth Laser Diodes MP-NL-930-A-A81-PA 930nm20mWPM Add to Cart

930nm 20mW SM Narrow Linewidth Laser Diodes MP-NL-930-A-A81-SA 930nm20mWSM Add to Cart

940nm 20mW PM Narrow Linewidth Laser Diodes MP-NL-940-A-A81-PA 940nm80mWPM Add to Cart

940nm 20mW SM Narrow Linewidth Laser Diodes MP-NL-940-A-A81-SA 940nm80mWSM Add to Cart

1030nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-1030-A-A81-PA 1030nm30mWPM Add to Cart

1030nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-1030-A-A81-SA 1030nm30mWSM Add to Cart

1053nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-1053-A-A81-PA 1053nm30mWPM Add to Cart

1053nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-1053-A-A81-SA 1053nm30mWSM Add to Cart

1064nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-1064-A-A81-PA 1064nm30mWPM Add to Cart

1064nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-1064-A-A81-SA 1064nm30mWSM Add to Cart

1080nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-1080-B-A81-PA 1080nm30mWPM Add to Cart

1080nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-1080-B-A81-SA 1080nm30mWSM Add to Cart

Show All

0 Selected Items Add to Cart

900-1100nm FBG stabilized Tunable laser diode

This series Fiber Bragg Grating laser is single frequency laser diode module designed for optical measurement and communication. The laser is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC).The Single-Frequency Continuous Tuning Range: > 1.2 nm by adjust the Mini PZT Built in the laser diode.

Product InformationModel WavelengthOutput PowerFiber Type Operate

1064nm 10mW PM FBG stabilized Tunable laser diode MP-NL-1064-A-A81-PA-PZT 1064nm10mWPM Add to Cart

1064nm 10mW SM FBG stabilized Tunable laser diode MP-NL-1064-A-A81-SA-PZT 1064nm10mWSM Add to Cart

1080nm 10mW PM FBG stabilized Tunable laser diode MP-NL-1080-A-A81-PA-PZT 1080nm10mWPM Add to Cart

1080nm 10mW SM FBG stabilized Tunable laser diode MP-NL-1080-A-A81-SA-PZT 1080nm10mWSM Add to Cart

0 Selected Items Add to Cart

900-1100nm Ultra-Narrow Linewidth Single-Frequency Laser Diode

The 1064 nm ultra-narrow linewidth single-frequency laser is a high-performance semiconductor laser thatintegrates silicon photonic chip technology, precise optical path design, and advanced packaging processes.

Product InformationModel Center WavelengthOutput PowerLinewidth Operate

1064nm Ultra-Narrow Linewidth Single-Frequency Laser Diode MP-UNL-1064-20-SA 1064nm20mW 20kHz Add to Cart

0 Selected Items Add to Cart
