PLD laser diode

Overview
IdealPhotonics' PLD diode is based on a thin-film fabrication technology using high-energy pulsed lasers (typically KrF/ArF excimer lasers or Nd:YAG lasers) to bombard targets. It achieves atomic-level material exfoliation and deposition in a vacuum/reactive gas environment using nanosecond-level pulses (energy density 1-10 J/cm²). Its innovative "dual-beam synchronous control" system can fabricate various functional thin films, including superconducting (e.g., YBCO), ferroelectric (e.g., PZT), and two-dimensional materials (e.g., graphene). These films exhibit high compositional fidelity (>99%) and film thickness control precision down to a single atomic layer (±0.01 nm), making them a core fabrication tool in cutting-edge fields such as quantum devices and flexible electronics.Employing high-energy pulsed lasers (such as 248nm KrF or 193nm ArF) and multi-target synergistic sputtering technology, atomic-level precision (±0.005nm) thin film deposition is achieved in an ultra-high vacuum environment of 10⁻⁶ Pa. Its innovative "real-time plasma spectral monitoring" system enables the control of compositional deviations in multi-component oxides (such as YBCO superconducting films).

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

870/905nm PLD Diode

These laser diodes feature high peak power under pulsed operation. Different variants offer varying peak output powers and emission widths.

Product InformationModel Working wavelengthOutput power Operate

870nm 20W 100ns Pulsed Laser Diode MP-PLD-NS-100-870-20W 870nm20W Add to Cart

870nm 21W 100ns Pulsed Laser Diode MP-PLD-NS-100-870-21W 870nm21W Add to Cart

905nm 21W 100ns Pulsed Laser Diode MP-PLD-NS-100-905-21W 905nm21W Add to Cart

905nm 75W 100ns Pulsed Laser Diode MP-PLD-NS-100-905-75W 905nm75W Add to Cart

905nm 100W 100ns Pulsed Laser Diode MP-PLD-NS-100-905-100W 905nm100W Add to Cart

Show All

0 Selected Items Add to Cart

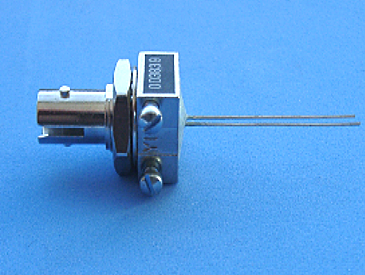

905nm PLD Diode FC or ST

This 905nm pulsed laser is designed for triggering light-triggered thyristors (LTTs), light-triggered integrated power circuits (IGBTs), Licht-zündbare thyristors (LZTs), or integrated circuits.

Product InformationModel Center wavelengthPeak output powerPulse Width (FWHM) Operate

905nm 75W 30ns FC Pulsed Laser MP-PLD-NS-30-905-75W-FC 905 nm75W30ns Add to Cart

905nm 75W 30ns ST Pulsed Laser MP-PLD-NS-30-905-75W-ST 905 nm75W30ns Add to Cart

0 Selected Items Add to Cart

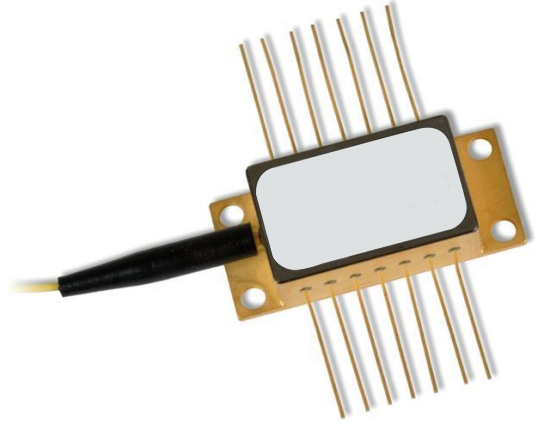

Pulsed DFB Laser Diode

This product offers a broad portfolio of high-power single-spatial-mode laser diodes, suitable for any wavelength within the 780nm to 1340nm range.It is available with a TO-9 (9mm) free-space light output package or a standard 14-pin butterfly package with fiber pigtail output (both single-mode and polarization-maintaining pigtails are optional). The polarization extinction ratio (PER) of laser diodes with polarization-maintaining (PM) pigtail output is typically >18dB.These fiber-coupled laser diodes can be configured for CW (up to 600mW) or pulsed operation, and are optionally available with fiber Bragg grating (FBG) versions for spectral stabilization.The pulsed laser diodes from Idealphotonics are specifically designed for seed source applications, featuring low-noise peak optical power up to 1.2W, and a broadened spectrum that suppresses stimulated Brillouin scattering (SBS) in high-power fiber lasers.Each laser diode product line undergoes a qualification program to demonstrate high reliability. All provided lasers pass individual screening procedures and are accompanied by detailed factory test reports.

Product InformationModel Peak WavelengthOutput PowerPulse Duration (Width)Fiber Type Operate

1064nm 300mW 50ps PM Pulsed DFB Laser Diode MP-DFB-PS-1064-300-14BF-PA 1027-1080 nm300 mW50 psPM-980 Add to Cart

1064nm 300mW 50ps SM Pulsed DFB Laser Diode MP-DFB-PL-1064-300-14BF-SA 1027-1080 nm300 mW50 psHI-1060 Add to Cart

0 Selected Items Add to Cart

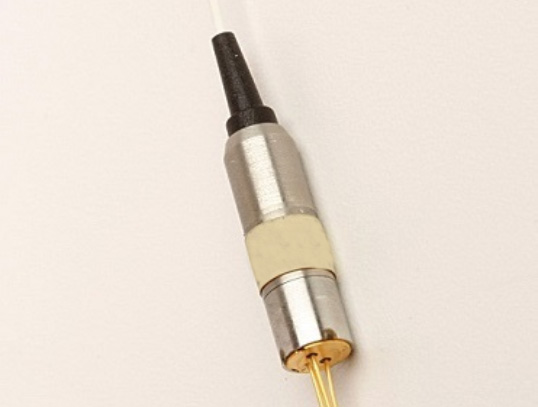

450nm Pulsed Laser Diode Module, 2W, Spectral Width (RMS) 1nm

The laser diode module is a 450 nm GaN laser diode in a 3-pin coaxial package. The laser diode is optically coupled with 200/230/500µm fiber pigtails. The device includes an ESD (electrostatic discharge) protection diode.The laser diode module is designed specifically for uncooled optical metrology applications requiring pulsed optical power, and it meets RoHS standards.

Product InformationModel Center wavelengthSpectral widthPeak optical power Operate

450nm 2W Pulsed Laser Diode Module MP-PLD-450-2-TO56 450 nm(RMS)1nmmin 2W Add to Cart

0 Selected Items Add to Cart
