1200-1400nm Broadband Semiconductor Optical Amplifier

Safety and operation instructions: The light emitted by this device is invisible and harmful to human eyes. When the device is running, please avoid looking directly at the fiber optic connector. When operating with the connector open, appropriate laser safety goggles must be worn.

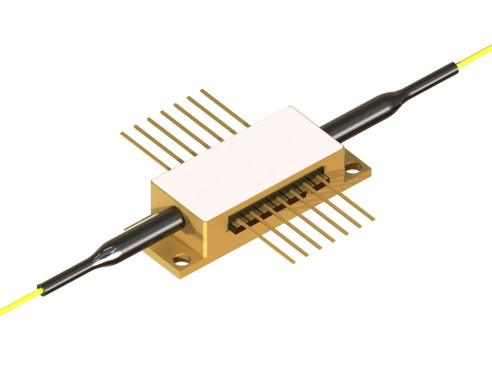

C/O band SOA nonlinear semiconductor optical amplifier 1550nm 14dBm/1310nm 7dBm

SOA nonlinear semiconductor optical amplifier is a polarization insensitive optical amplifier with advanced epitaxial chip growth and optoelectronic packaging technology, which can achieve high output saturation power, low noise figure, and large gain over a wide spectral bandwidth.

1200-1400nm BOA Diode

BOA is an optical amplifier that utilizes semiconductor materials as the gain medium. Its structure resembles that of a Fabry-Perot laser diode, but through specialized designs such as anti-reflection coatings and tilted waveguides, the end-face reflectivity is reduced to below 0.001%, thereby avoiding self-oscillation and ensuring stable operation in the amplification state.

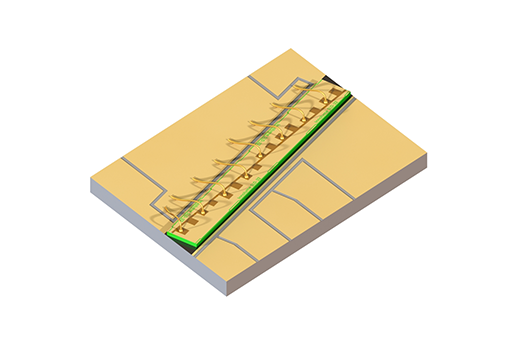

1200-1400nm BOA on submount

A high-power chip on submount packaged boost optical amplifier designed for applications that require maximum output power and flexible system integration. This product uses advanced quantum dot gain materials and proprietary anti reflection coating technology, and can achieve an output power of up to 550mW in a submount package, significantly higher than the fiber coupled versions of the same series (>400mW)
