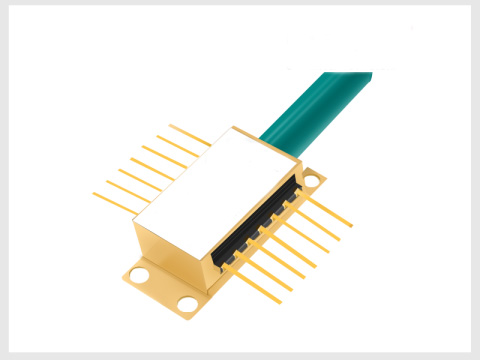

1100-1600nm ECL laser diode

Overview

IdealPhotonics' 1100-1600nm ECL diode, based on an external cavity tunable laser using InGaAsP/InP materials, achieves a wavelength accuracy of 0.0005nm and a linewidth of <5kHz through a blazed grating and silicon-based microelectromechanical systems (MEMS) composite feedback technology. It exhibits quantum-level stability of ±0.001nm/℃ in cross-band applications such as 1310/1550nm fiber optic communication, 1380nm water vapor detection, and 1530nm methane sensing. Its innovative "photonic crystal-microfluidic" dual-tuning architecture extends the tuning range beyond 200nm, making it the ultimate solution for ultra-wideband, high-precision spectral analysis covering the O/E/S/C/L bands.Employing InGaAsP/InP multiple quantum wells and silicon-based MEMS blazed gratings (±0.0004nm accuracy), a near-quantum limit stability of ±0.0008nm/℃ and an ultra-narrow linewidth of <4kHz were achieved. Simultaneous breakthroughs were made in three strategic applications: 1310/1550nm dual communication windows (64Gbps PAM6), 1383nm water molecule detection (0.01ppb sensitivity), and 1532nm greenhouse gas monitoring. Its innovative "photonic crystal-microfluidic" dual-tuning technology extends the scanning range to 220nm while maintaining 0.0005nm resolution, redefining the performance limits of ultra-wideband high-precision spectroscopic analysis instruments.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

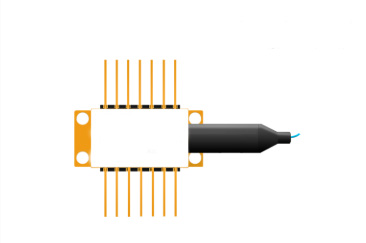

1100-1600nm Narrow Linewidth Laser Diodes

This is a high-performance continuous-wave (CW) narrow linewidth laser diode, specifically designed to meet the requirements of dense wavelength division multiplexing (DWDM) and coarse wavelength division multiplexing (CWDM) systems within the 1100-1600nm wavelength range. As a core light source in the field of optical communication and fiber-optic sensing, this series of lasers perfectly combines narrow linewidth characteristics with precise wavelength stability, delivering exceptional signal fidelity for long-distance transmission and high-precision measurements.

Product InformationModel WavelengthOutput PowerFiber Type Operate

1550nm 5mW PM Narrow Linewidth Laser Diodes MP-NL-1550-A-A81-PA 1550nm5mWPM Add to Cart

1550nm 5mW SM Narrow Linewidth Laser Diodes MP-NL-1550-A-A81-SA 1550nm5mWSM Add to Cart

1572nm 30mW PM Narrow Linewidth Laser Diodes MP-NL-1572-A-A81-PA 1572nm30mWPM Add to Cart

1572nm 30mW SM Narrow Linewidth Laser Diodes MP-NL-1572-A-A81-SA 1572nm30mWSM Add to Cart

0 Selected Items Add to Cart

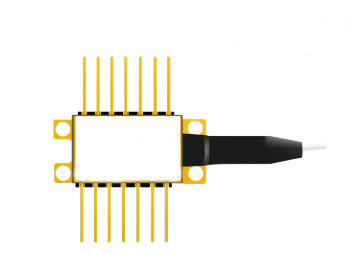

1100-1600nm FBG stabilized Tunable laser diode

This series Fiber Bragg Grating laser is single frequency laser diode module designed for optical measurement and communication. The laser is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC).The Single-Frequency Continuous Tuning Range: > 1.2 nm by adjust the Mini PZT Built in the laser diode.

Product InformationModel WavelengthOutput PowerFiber Type Operate

1557nm 10mW PM FBG stabilized Tunable laser diode MP-NL-1557-A-A81-PA-PZT 1557nm10mWPM Add to Cart

1557nm 10mW SM FBG stabilized Tunable laser diode MP-NL-1557-A-A81-SA-PZT 1557nm10mWSM Add to Cart

1560nm 10mW PM FBG stabilized Tunable laser diode MP-NL-1560-A-A81-PA-PZT 1560nm10mWPM Add to Cart

1560nm 10mW SM FBG stabilized Tunable laser diode MP-NL-1560-A-A81-SA-PZT 1560nm10mWSM Add to Cart

0 Selected Items Add to Cart

1100-1600nm Ultra-Narrow Linewidth Single-Frequency Laser Diode

The ultra-narrow linewidth single-frequency laser is a high-performance semiconductor laser thatintegrates silicon photonic chip technology, precise optical path design, and advanced packaging processes.

Product InformationModel WavelengthOutput PowerLinwidth Operate

1532nm PM Ultra-Narrow Linewidth Single-Frequency Laser Diode MP-U-NL-1532-A-A81-PA 1532nm60mW5kHz Add to Cart

1532nm SM Ultra-Narrow Linewidth Single-Frequency Laser Diode MP-U-NL-1532-A-A81-SA 1532nm60mW5kHz Add to Cart

1550nm PM Ultra High power Narrow Linewidth Laser Diodes MP-HP-NL-1550-B-A81-PA 1550nm100mW500kHz Add to Cart

1550nm SM Ultra High power Narrow Linewidth Laser Diodes MP-HP-NL-1550-B-A81-SA 1550nm100mW500kHz Add to Cart

1550nm PM Ultra-Narrow Linewidth Single-Frequency Laser Diode MP-U-NL-1550-A-A81-PA 1550nm10mW5kHz Add to Cart

1550nm SM Ultra-Narrow Linewidth Single-Frequency Laser Diode MP-U-NL-1550-A-A81-SA 1550nm10mW5kHz Add to Cart

Show All

0 Selected Items Add to Cart
