Fiber laser

Overview

Idealphotonics' fiber lasers are laser systems that use rare-earth-doped optical fibers as the gain medium, generating laser output through stimulated emission within the fiber. Fiber lasers, with their high efficiency, high reliability, excellent beam quality, and flexible wavelength output, have become a benchmark in modern laser technology.All-fiber integrated design; ultra-high electro-optical conversion efficiency; diffraction-limited beam quality; wide power coverage range; excellent thermal management performance; wavelength flexibility and scalability.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

1.2-2.3 μ m Raman fiber laser source

Xiaoxiao Photon's customized Raman fiber laser source provides up to 20W output power in a wide wavelength range of 1090-2400nm, making it suitable for many applications including but not limited to EDFA pumping, Raman amplification, optical component testing, and research and development.

Product InformationModel Center wavelength Average power 3dB bandwidth ASE suppression Operate

1240nm 10W 3nm Bandwidth Raman Fiber Laser Source MP-FLS-RM-1240-10W-SM 1240nm10W3nm>30dB Add to Cart

1320nm 0.6W 3nm Bandwidth Raman Fiber Laser Source MP-FLS-RM-1320-0.6W-SM 1320nm0.6W3nm>30dB Add to Cart

1480nm 5W 3nm Bandwidth Raman Fiber Laser Source MP-FLS-RM-1480-5W-SM 1480nm5W3nm>30dB Add to Cart

1688nm 0.6W 3nm Bandwidth Raman Fiber Laser Source MP-FLS-RM-1688-0.6W-SM 1688nm0.6W3nm>30dB Add to Cart

0 Selected Items Add to Cart

1064nm high-power fiber laser 2W/10W

Product InformationModel WavelengthOutput PowerConnector Operate

1064nm High Power PM Fiber Laser 10W MP-FLS-1064-B-10-PA 1064nm10WFC/APC Add to Cart

1064nm High Power PM Fiber Laser 2W MP-FLS-1064-B-2-PA 1064nm2WFC/APC Add to Cart

1064nm High Power SM Fiber Laser 10W MP-FLS-1064-B-10-SA 1064nm10WFC/APC Add to Cart

1064nm High Power SM Fiber Laser 2W MP-FLS-1064-B-2-SA 1064nm2WFC/APC Add to Cart

0 Selected Items Add to Cart

1550nm high-power single-mode fiber laser

Product InformationModel WavelengthOutput PowerFiber Mode Operate

1550nm High Power Single Mode Fiber Laser 3W MP-FLS-1550-B-3-SA 1550nm3WSMF-28e Add to Cart

1550nm High Power PM Fiber Laser 10W MP-FLS-1550-B-10-PA 1550nm10WPM Add to Cart

1550nm High Power PM Fiber Laser 2W MP-FLS-1550-B-2-PA 1550nm2WPM Add to Cart

1550nm High Power SM Fiber Laser 10W MP-FLS-1550-B-10-SA 1550nm10WSMF-28e Add to Cart

1550nm High Power SM Fiber Laser 2W MP-FLS-1550-B-2-SA 1550nm2WSMF-28e Add to Cart

Show All

0 Selected Items Add to Cart

1.5um Narrow Linewidth Single Frequency Fiber Laser Source

The narrow linewidth single-frequency fiber laser source features high efficiency, excellent beam quality, compact design, and high stability and reliability. It is widely used in industrial processing, material treatment, medical, scientific research, and communication fields.

Product InformationModel Center WavelengthAverage PowerLinewidthASE Suppression Operate

1520nm 20mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1520-20-5k-B 1520nm20mW<5kHz>50dB Add to Cart

1520nm 50mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1520-50-5k-B 1520nm50mW<5kHz>50dB Add to Cart

1550nm 20mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1550-20-5k-B 1520nm20mW<5kHz>50dB Add to Cart

1550nm 50mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1550-50-5k-B 1550nm50mW<5kHz>50dB Add to Cart

1580nm 20mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1580-20-5k-B 1580nm20mW<5kHz>50dB Add to Cart

1580nm 50mW Narrow Linewidth Single-Frequency Fiber Laser Source MP-NL-1580-50-5k-B 1580nm50mW<5kHz>50dB Add to Cart

Show All

0 Selected Items Add to Cart

1-3um Fiber Laser Source

The fiber laser source features high efficiency, excellent beam quality, compact design, and high stability and reliability. It is widely used in industrial processing, material treatment, medical, scientific research, and communication fields.

Product InformationModel Center WavelengthAverage Power3dB BandwidthASE Suppression Operate

1050nm 10W 0.05nm Bandwidth Fiber Laser Source MP-FLS-1050-10W 1050nm10W<0.05nm>50dB Add to Cart

1550nm 5W 0.05nm Bandwidth Fiber Laser Source MP-FLS-1550-5W 1550nm5W<0.05nm>50dB Add to Cart

1650nm 0.9W 0.05nm Bandwidth Fiber Laser Source MP-FLS-1650-0.9W 1650nm0.9W<0.05nm>50dB Add to Cart

2000nm 20W 1nm Bandwidth Fiber Laser Source MP-FLS-2000-20W 2000nm20W<1nm>50dB Add to Cart

0 Selected Items Add to Cart

Industrial High-Power Picosecond Quasi-Continuous Fiber Laser

The Industrial High-power Picosecond Quasi-Continuous Fiber Laser is a high-power picosecond quasi-continuous fiber laser specially designed for industrial processing scenarios, achieving efficient and precise processing with High pulse energy and excellent beam quality.

Product InformationModel Center WavelengthOutput PowerPulse Duration Operate

515nm 80W 30ps Industrial High-Power Picosecond Quasi-Continuous Fiber Laser MP-FLS-515-P-PS30-30M-80 515nm80W@30MHz30ps Add to Cart

0 Selected Items Add to Cart

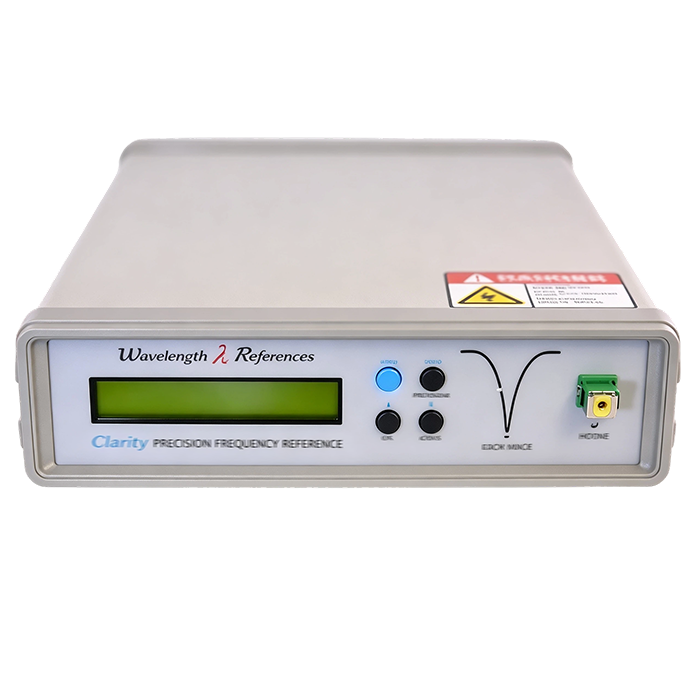

Acetylene Calibration Source Laser Absolute Accuracy

Acetylene Calibration Source Laser Absolute Accuracy is a calibration light source that uses the absorption spectral lines of acetylene molecules as the absolute frequency reference. It can achieve precise traceability of laser wavelengths and high-precision calibration, ensuring the accuracy of measurement results.

Product InformationModel Output WavelengthOutput PowerAbsoluted Accuracy Operate

1532nm 3mW Acetylene Calibration Source Laser Absolute Accuracy 2MHz MP-LFR-1532-3-SA 1532.83041nm±0.07pmup to 3mW(tunable)±2MHz Add to Cart

0 Selected Items Add to Cart

Mid-Infrared Continuous-Wave Power Fiber Laser

Mid-infrared continuous-wave fiber lasers are mainly classified into three categories according to their operating mechanisms: rare-earth-doped fiber lasers, nonlinear fiber lasers, and gas-filled fiber lasers, among which rare-earth-doped fluoride fiber lasers represent the current mainstream technological approach.

Product InformationModel Center WavelengthOutput PowerLinewidth Operate

2.8um 10W Mid-Infrared Continuous-Wave Power Fiber Laser MP-FLS-2800-C-10 2.825um(nominal)10W<1nm Add to Cart

3.2um 5W Mid-Infrared Continuous-Wave Power Fiber Laser MP-FLS-3250-C-5 3.25um(nominal)5W<1nm Add to Cart

0 Selected Items Add to Cart
