Automatic Calibration

The wavelength meter can be automatically recalibrated at user-defined intervals, ranging from several weeks to the time between individual measurements. This automatic process requires no user intervention and takes less than one second before returning to measurement. When used with the PID option, laser runaway is prevented.

External Calibration Source

Idealphotonics offers various frequency-stabilized narrow-linewidth laser sources for different applications, with absolute accuracy down to ±0.5 MHz. They are ideal for fast and accurate calibration of our entire range of HighFinesse wavelength meters.

Integrated Calibration Source

Standard wavelength meters with absolute accuracy up to 60 MHz feature automatic calibration via an integrated calibration source. In this way, our wavelength meters can guarantee the highest measurement accuracy and stability.

Technical Specifications

Calibration Source ParametersLaser Head

Power

Testing and Certification

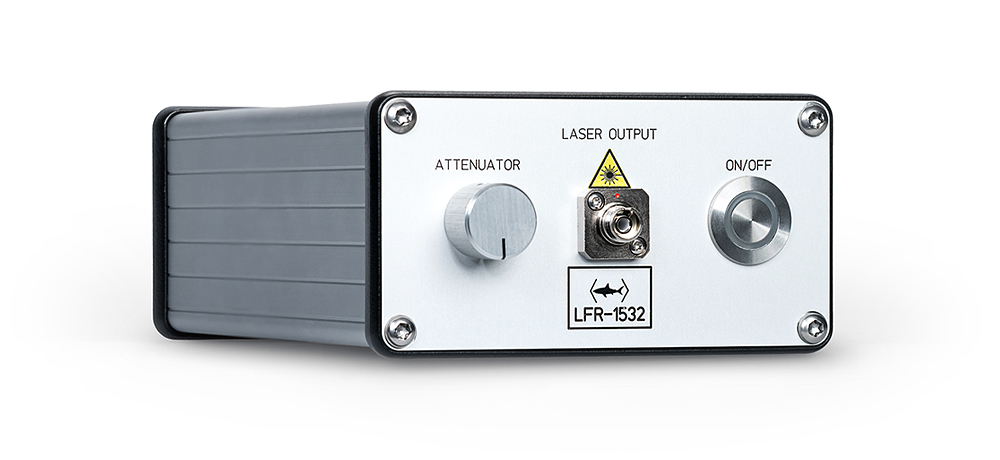

Calibration Source Laser Series Products

1.Other rubidium wavelengths available upon request.

2.Higher power available upon request.

3.After 40 minutes of operation.

Tests

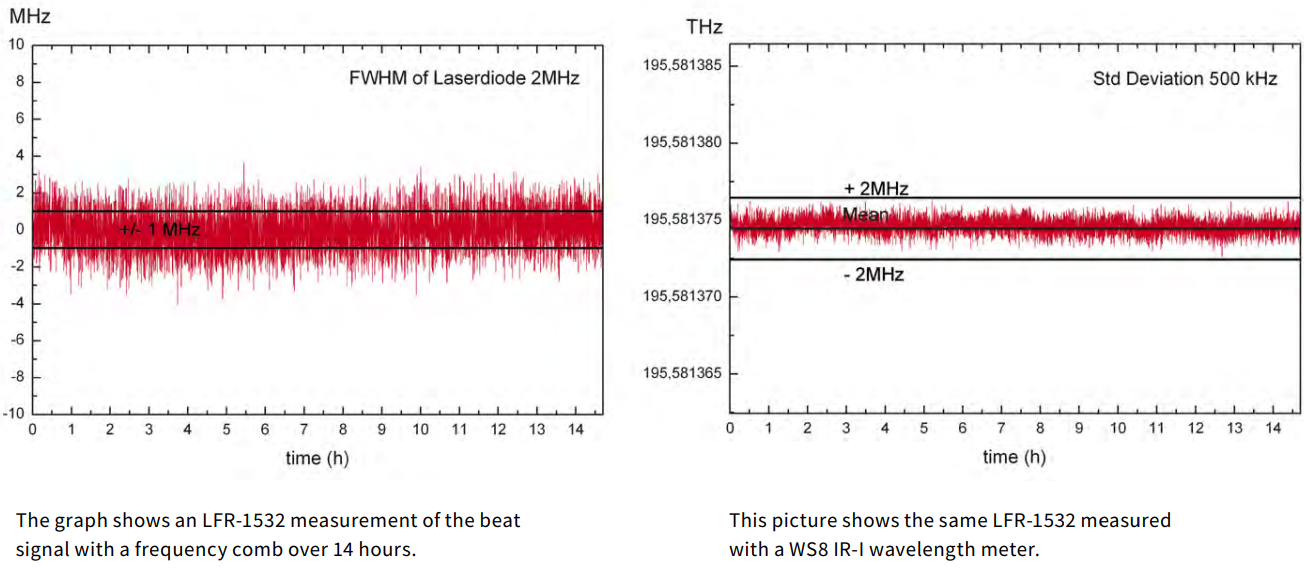

The left graph shows a measurement of the LFR-1532 beat signal with a frequency comb over 14 hours.

The right graph shows the same LFR-1532 measured with the WS8 IR-I wavelength meter.

--
