Home/ Products/ Light Sources/ Coherent Sources/ Fiber laser/ 1.2-2.3 μ m Raman fiber laser source/ 1320nm 0.6W 3nm Bandwidth Raman Fiber Laser Source

    • 1320nm 0.6W 3nm Bandwidth Raman Fiber Laser Source

    The Raman fiber laser source features high efficiency, excellent beam quality, compact design, and high stability and reliability. It is widely used in industrial processing, material treatment, medical, scientific research, and communication fields.

    Product features：Stimulated Raman Scattering (SRS) technology; High power output; All-fiber structure; Narrow linewidth characteristic; Pump compatibility

    Part Number：MP-FLS-RM-1320-0.6W-SM

    Application area：Spectral Analysis | Fiber Optic Sensing | Medical Laser | Industrial Processing | Scientific Research Experiments

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center wavelength Average power 3dB bandwidth ASE suppression

    1320nm 0.6W 3nm >30dB

  • Dimension Drawing
    • General Parameters

    Detailed Parameters

    Parameter

    Unit

    1.2 µm

    1.3 µm

    1.5 µm

    1.7 µm

    2.3 µm

    Wavelength Range

    nm

    1090-1250

    1250-1400

    1400-1510

    1580-1750

    2100-2400

    Output Power

    (LowP/HighP)

    W

    > 0.5 | 50

    > 0.5 | 40

    > 0.5 | 5

    > 0.5 | 10

    > 0.5 | 10

    3dB Bandwidth(LowP/HighP)

    nm

    ~0.3 | ~3

    ~0.3 | ~3

    ~0.3 | ~3

    ~0.3 | ~3

    ~1 | ~3

    ASE Suppression

    dB

    >30

    >30

    >30

    >30

    >25

    Output FIber Type


    SMF,MMF

    Output Connector


    FC, ST, SC or free space

    Polarization


    Random

    Operating Temperature

    °C

    0-50

    Dimensions

    cm

    70 x 190 x 310

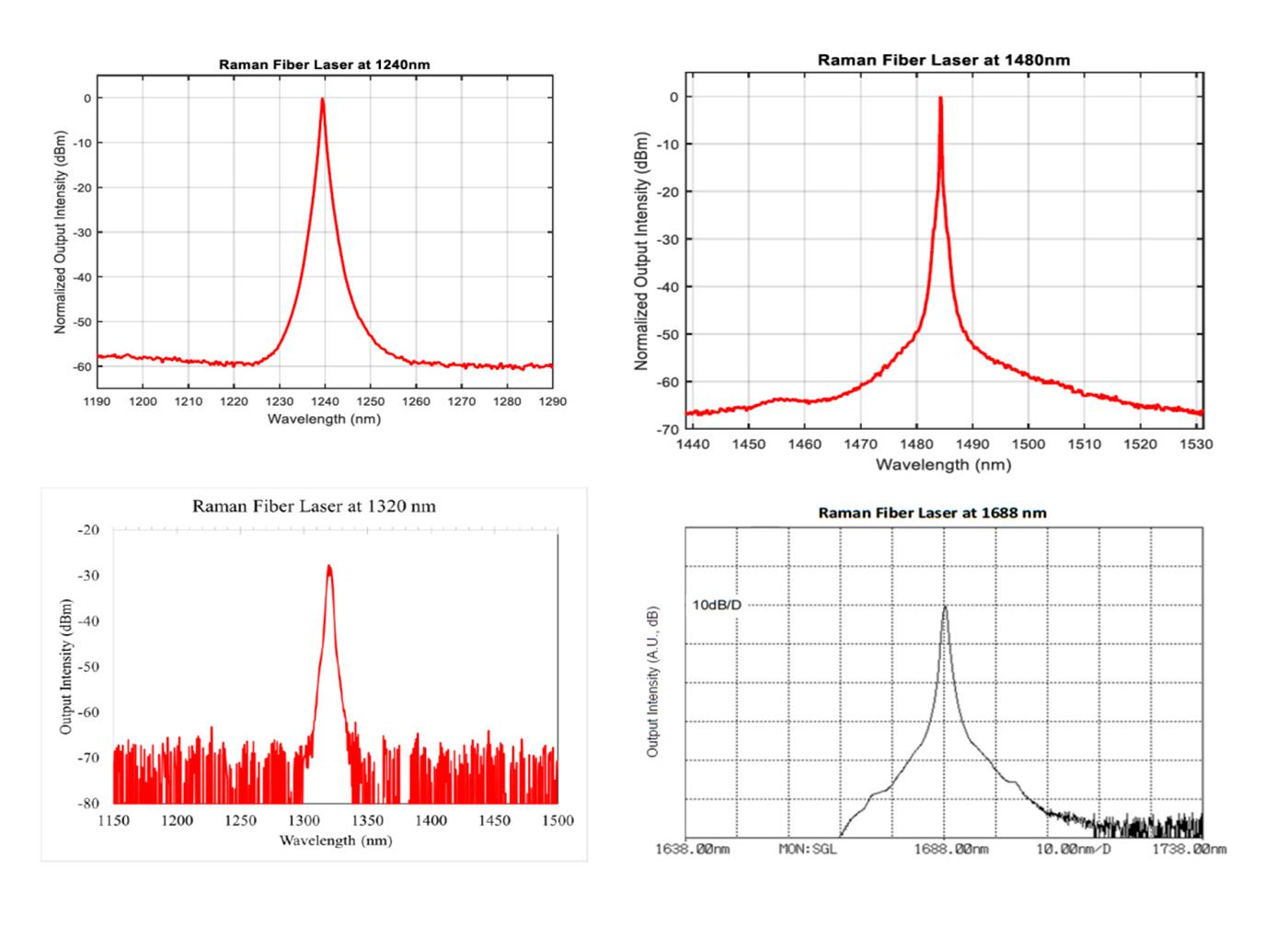

    Characteristic Curves



    Optional Configurations

    --

    Downloads

    No resources available
