Near-IR spectrometer

Overview

IdealPhotonics' near-infrared spectrometer is a non-destructive analytical instrument that utilizes the absorption, scattering, or reflection characteristics of light in the near-infrared band (typically 780–2500 nm) to rapidly determine sample components (such as organic matter, moisture, and proteins) by analyzing their characteristic spectra.It utilizes the 780–2500 nm wavelength range to detect the molecular vibrations of hydrogen-containing groups, enabling rapid and non-destructive quantitative analysis of organic components.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

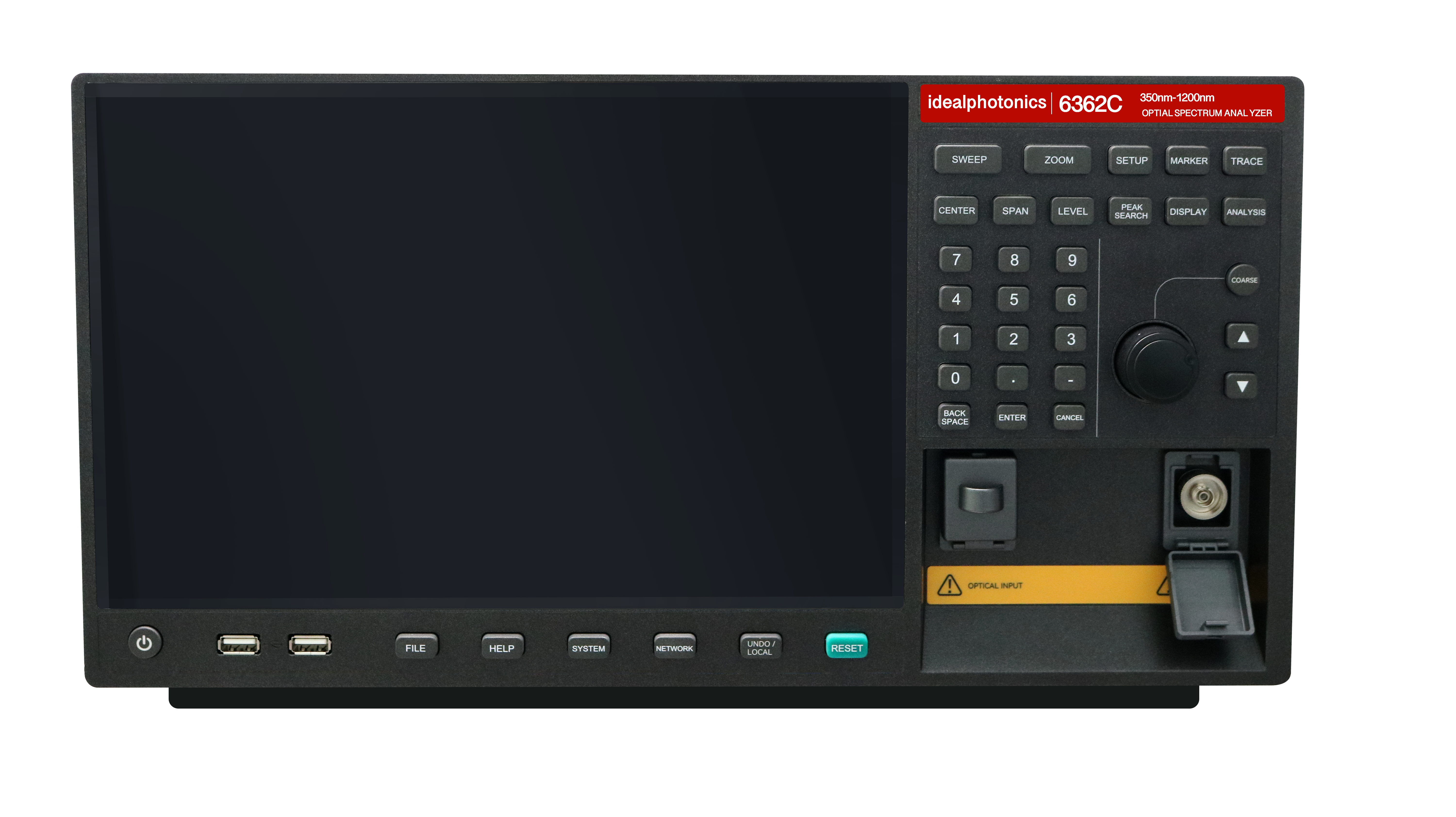

6362C spectrometer

Product InformationModel Wavelength rangeWavelength Accuracy Operate

6362C Spectrometer MP-OSA-VLN-10-0.20 350~1200nm±0.200nm Add to Cart

0 Selected Items Add to Cart

6362D spectrometer

Product InformationModel Wavelength rangeWavelength Accuracy Operate

6362D Spectrometer MP-OSA-NIR-2-0.10 600~1700nm±0.100nm Add to Cart

0 Selected Items Add to Cart

6362E spectrometer

Product InformationModel Wavelength rangeWavelength Accuracy Operate

6362E Spectrometer MP-OSA-NIR-2-0.50 1200~2400nm±0.50nm Add to Cart

0 Selected Items Add to Cart

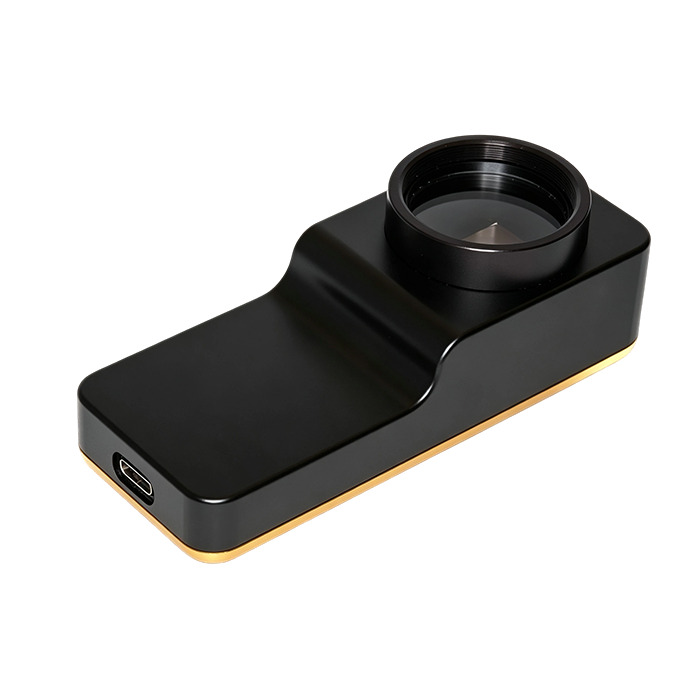

640–2150 nm Miniature Infrared Spectrometer

The 640–2150 nm Miniature Infrared Spectrometer is a compact, portable device that covers a broad spectral range from visible to mid-infrared (640–2150 nm), enabling rapid spectral data acquisition across this wide band. It is suitable for applications such as material characterization, process monitoring, environmental detection, and on-site rapid analysis.

Product InformationModel Wavelength RangeFHWM Operate

1550–1850 nm Miniature Short‑Wave Infrared Spectrometer MP-NIR-1550-1850 1550–1850 nm20nm Add to Cart

1750–2150 nm Miniature Short‑Wave Infrared Spectrometer MP-NIR-1750-2150 1750–2150 nm22nm Add to Cart

640–1050 nm Miniature Near‑Infrared Spectrometer MP-NIR-640-1050 Add to Cart

1350–1650 nm Miniature Short‑Wave Infrared Spectrometer MP-NIR-1350-1650 1350–1650 nm18 nm Add to Cart

0 Selected Items Add to Cart

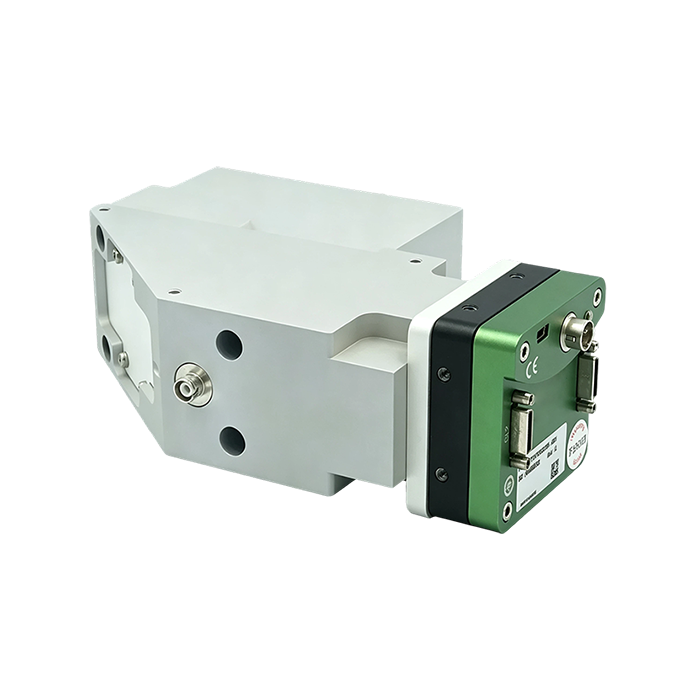

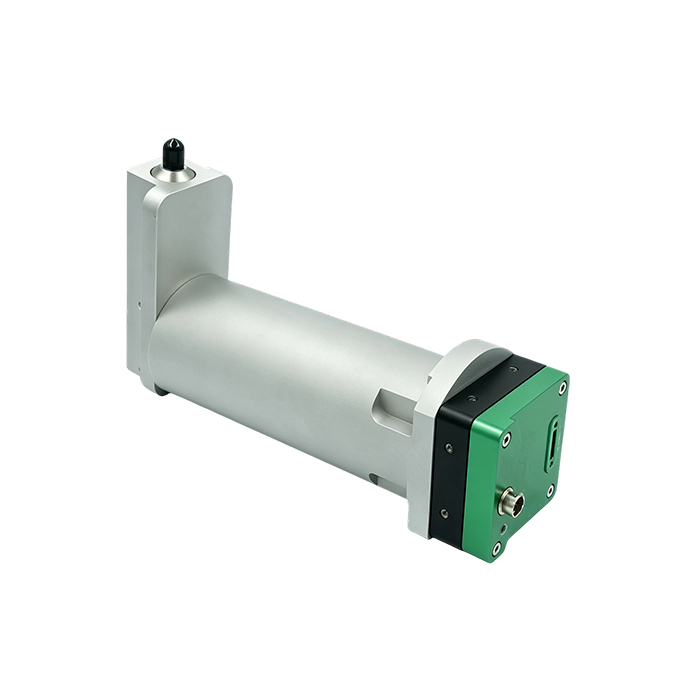

OCT Spectrometer

An OCT spectrometer is an imaging device that utilizes the principle of low-coherence light interference to acquire high-resolution, non-contact two-dimensional or three-dimensional tomographic images of biological tissues or materials by detecting spectral information in parallel.

Product InformationModel Wavelength RangeSpectral Resolution Operate

780–920nm OCT Spectrometer MP-OCT-780-920 780–920 nm0.09 nm Add to Cart

800–890nm OCT Spectrometer MP-OCT-800-890 800–890 nm0.05 nm (typical) Add to Cart

820–860 nm OCT Spectrometer MP‑OCT‑820‑860 820–860 nm0.02 nm (typical) Add to Cart

795–885 nm OCT Spectrometer MP‑OCT‑795‑885 795–885 nm0.05 nm (as per specifications) Add to Cart

826–854 nm OCT Spectrometer MP-OCT-826-854 826–854 nm0.015 nm Add to Cart

Show All

0 Selected Items Add to Cart

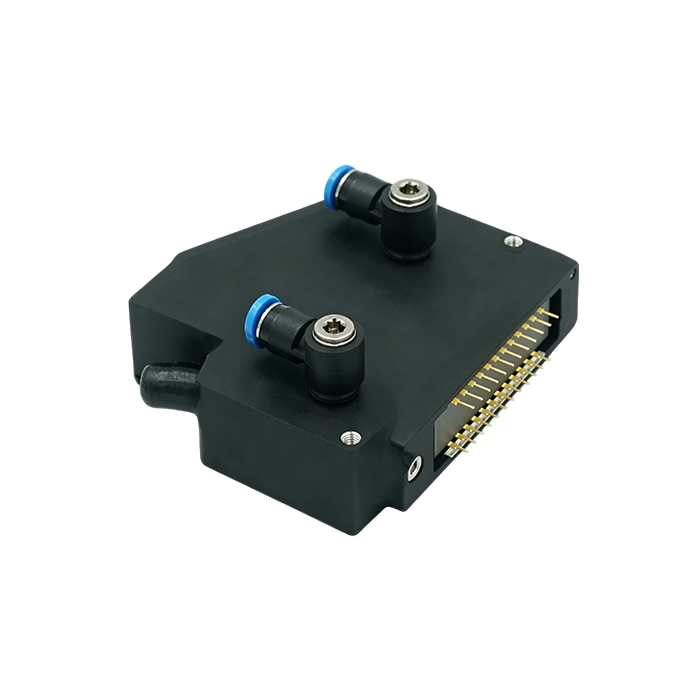

LIBS Spectrometer

The 178-409nm LIBS spectrometer is a compact deep-UV spectral module specifically designed for laser-induced breakdown spectroscopy (LIBS) elemental analysis.

Product InformationModel Wavelength RangeSpectral Resolution Operate

178–409nm LIBS Spectrometer MP-LIBS-178-409 178–409 nm0.3 nm Add to Cart

190–435 nm LIBS Spectrometer MP-LIBS-190-435 190–435 nm0.15–0.2 nm Add to Cart

360–830 nm LIBS Spectrometer MP-LIBS-360-830 360–830 nm0.3 – 0.4 nm Add to Cart

415–957nm LIBS Spectrometer MP-LIBS-415-957 415–957 nm0.4 nm Add to Cart

475–1100 nm LIBS Spectrometer MP-LIBS-475-1100 475 – 1100 nm0.5 nm Add to Cart

Show All

0 Selected Items Add to Cart
