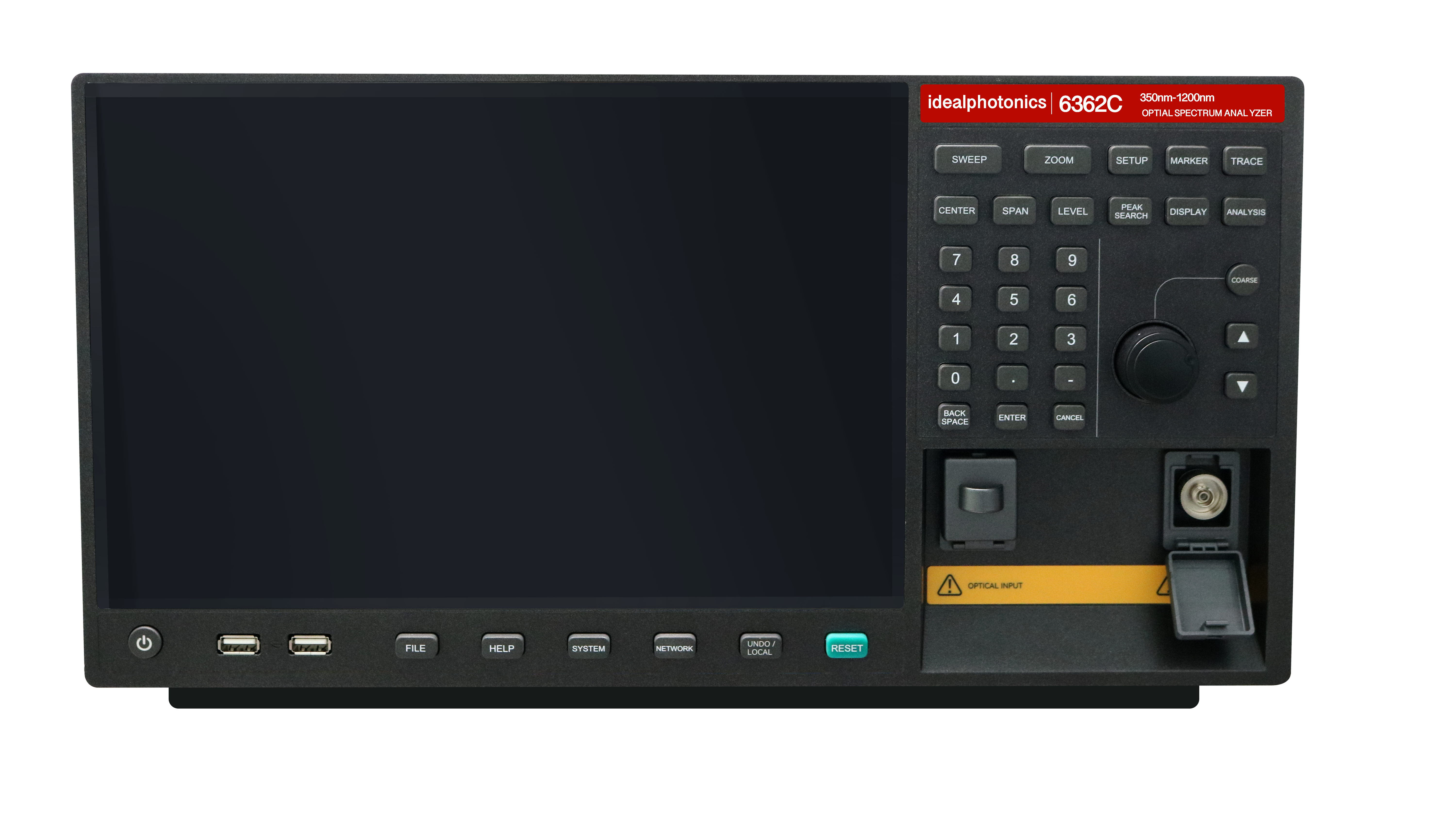

6362C Spectrometer

6362C Spectrometer

It can measure visible light to near-infrared bands, between 350nm and 1200nm, with high wavelength resolution and wide dynamic range, and can clearly characterize spectral details and accurately restore spectral features. It has a wide range of applications and can accelerate the development and manufacturing of short-wavelength lasers, passive devices and LEDs, as well as equipment using these devices in the fields of biomedicine, material processing, consumer products and healthcare.

Product features：350nm~1200nm wide spectral scanning range、 Wavelength accuracy: ±0.05nm、 10pmMin. spectral resolution、 60dB large dynamic range、 -80dBmz high sensitivity、 Applicable to single-mode, multi-mode and large-core optical fibers

Part Number：MP-OSA-VLN-10-0.20

Application area：Acceleration of short wavelength lasers、 Passive devices and LEDs and their use in biomedicine、 Material processing、 Development and manufacturing of devices in consumer products and healthcare

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Wavelength range Wavelength Accuracy

350~1200nm ±0.200nm

Dimension Drawing

General Parameters

Main Parameters:

Parameters	Specifications
Wavelength range	350nm～1200nm
Wavelength Accuracy	±0.200nm
Spectral Resolution Setting	0.02nm, 0.05nm, 0.1nm, 0.2nm, 0.5nm, 1nm, 2nm
Minimum Sampling Resolution	0.001nm
Number of Sampling Points	101~50001, AUTO
Power sensitivity Setting	NORMAL、MID、HIGH1、HIGH2、 HIGH3
Power sensitivity	-60dBm(Sensitivity:HIGH3)
Power accuracy	±1.0dB(850nm, -20dBm≤Input Power≤10dBm, Sensitivity: MID
Dynamic range	60dB(633nm, Peak±0.5nm, Resolution:0.02nm)
Compatible Fiber	SM (9.5/125 μm), GI (50/125 μm, 62.5/125 μm), Large-Core Fiber (up to 800 μm)
Display	12.1-inch Touchscreen
Storage	128GB
Interfaces	USB / Ethernet / VGA
Operating Conditions	Ambient Temperature: 5 °C ~ 35 °C; Humidity: ≤80% Guaranteed Performance Temperature: 18 °C ~ 28 °C
Dimensions (W×H×D)	426 mm × 221 mm × 45 mm
Weight	Approx. 20 kg
Power Supply	100 VAC ~ 240 VAC, 50 Hz / 60 Hz
Maximum Power Consumption	Approx. 100 W

Appendix 1: Model and Part Number Comparison Table

Title

Spectral Range

Span

Wavelength Accuracy

Wavelength resolution settings

Min.Sampling resolution

6362C

Spectrometer

350~120 0nm

0.5nm~850nm(Full range span) ，0nm

±0.05nm(633nm)、

±0.2nm(400~1100nm)

(After calibrating the wavelength using a 633nm He-Ne laser.)

0.02、0.05、0.1、0. 2、0.5、1、2、5、10nm(Full wavelength range)、and 0.01nm(400 ~470nm)

0.001nm

Optional Configurations

Downloads

6362C Spectrometer.pdf
