Nanosecond pulse laser

Overview
''

Account Manager

Name：Claire Lee

Phone：+86 13032176908

Email：claire@idealphotonics.com

WeChat：

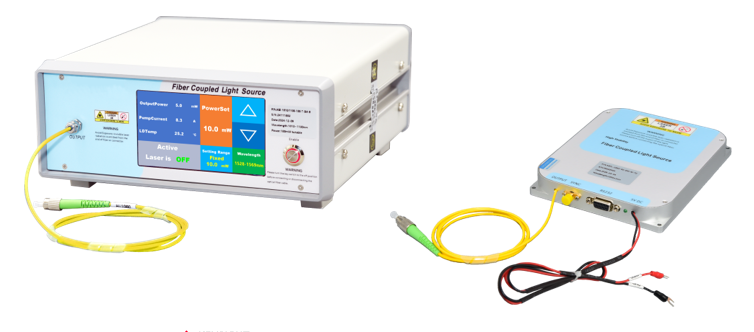

1550nm nanosecond high-power pulse light source

The high-power nanosecond pulse fiber laser uses a high-power gain fiber module, combined with dedicated driving and temperature control circuits, to output high peak and high-energy laser pulses. The laser wavelength and power are stable, and the modular design facilitates system integration. It can be used in laser radar, distributed fiber optic sensing systems, etc.

Product InformationModel Center WavelengthPulse WidthPeak Output Power Operate

1550nm nanosecond high power pulse light source module (pulse width 3ns peak power 4kW) MP-PLS-NS-3-1550-2W-3-M 1550nm3ns4kW Add to Cart

1550nm Nanosecond High-Power Pulsed Light Source, Modular(Pulse width 250ns Peak power 10kW) MP-PLS-NS-250-1550-2W-250-M 1550nm250ns10kW Add to Cart

0 Selected Items Add to Cart

Small pulsed fiber laser 1535/1550nm

Product InformationModel WavelengthPeak PowerRepetition Frequency Operate

Small pulsed fiber laser 1535nm MP-PLS-NS-1535-1W 1535nm1.5kW0.5MHz Add to Cart

Small pulsed fiber laser 1550nm MP-PLS-NS-1550-1W 1550nm1.5kW0.5MHz Add to Cart

0 Selected Items Add to Cart

Miniature pulsed fiber laser 1535nm

Product InformationModel Center WavelengthPeak WavelengthRepetition Frequency Operate

1535nm Micro-pulse fiber laser MP-PLS-NS-4-1535-1W 1535nm700W0.5MHz Add to Cart

0 Selected Items Add to Cart

1550nm desktop high integration polarization maintaining pulse light source (1.2 μ J)

Product InformationModel Center WavelengthPulse WidthPeak Power Operate

1550nm Benchtop highly integrated polarization-maintaining pulse light source (1.2uJ) MP-PLS-NS-20-1550-6W 1550nm20ns6W Add to Cart

0 Selected Items Add to Cart

1550nm highly integrated polarization maintaining pulse light source (modular) 1.2 μ J

Product InformationModel Center WavelengthPulse WidthPeak Power Operate

1550nm highly integrated polarization-maintaining pulse light source module(1.2uJ) MP-PLS-NS-200-1550-6W-M 1550nm200ns6W Add to Cart

0 Selected Items Add to Cart

1550nm high peak power pulsed fiber laser 1W (DTS, LiDAR)

The high peak power pulse light source for eye safety developed by Xiaoxiao Photon. The product has high electro-optical conversion efficiency, small nonlinear effects and ASE, and a wide operating temperature range. It is suitable as an emission light source for solid-state laser Lidar.

Product InformationModel Wavelength Pulse WidthRepetition Rate Operate

1550nm high peak power pulsed fiber laser (solid-state laser Lidar emission source) MP-PLS-NS-1550-1W-SA 1550nm1-10ns0.5MHz Add to Cart

0 Selected Items Add to Cart

25W 1550nm high peak power pulse laser with a spectral width of 15nm (for laser rangefinder)

idealphotonics'  pulsed semiconductor laser is a high brightness CVLL 1550nm pulsed laser diode with a power output of up to 75 watts. CVLL devices are highly suitable for most distance measurement applications that require "eye safe" operation.

Product InformationModel Peak WavelengthSpectral WidthRise Time Operate

1550nm high peak power pulse laser spectrum width 15nm 25W MP-PLD-NS-1550-25W 1550nm15nm1ns Add to Cart

0 Selected Items Add to Cart

1550nm nanosecond pulse fiber laser (for DTS) 50W

Xiaoxiao Photon's 1550nm pulse laser is an efficient ns pulse fiber light source in the safe wavelength range for human eyes. The new ns level pulse driving circuit has stable pulses and low distortion. The optimized low-noise erbium-doped fiber amplifier achieves high peak power and ns level pulse output. This laser is highly suitable for fields such as distributed fiber temperature measurement systems (DTS), laser ranging, and fiber optic sensing.

Product InformationModel Operate

1550nm Nanosecond Pulsed Fiber Laser (DTS) 50W MP-NS-1550-50-SA Add to Cart

0 Selected Items Add to Cart
