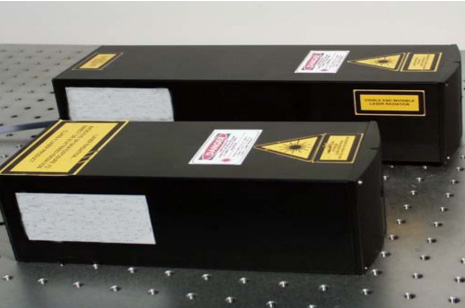

Single frequency narrow linewidth DPSS single longitudinal mode laser 532nm CW

Xiaoxiao Photon provides a 532nm CW single frequency narrow linewidth DPSS laser, which integrates the resonant cavity of the LMX series single longitudinal mode laser into a small optical component with extremely low loss rate using its self-aligned resonant cavity technology and AMR design technology. The self-aligning resonant cavity technology ensures the long-term reliability, temperature stability, and insensitivity to mechanical vibrations of our single longitudinal mode laser resonant cavity. Its 532nm single longitudinal mode laser has a linewidth far less than 1MHz, power stability of ± 1% (up to 0.5% if required), beam quality less than 1.1, and power up to 2W. It is a cost-effective product applied in fields such as Raman detection, interferometry, holographic storage, biological detection, confocal microscopy, and material analysis

1550nm narrow linewidth single frequency laser module 40mW

文档 图片 70/1000 实时翻译 文档图片70/1000实时翻译划译LD-PD INC窄线宽半导体激光模块具有超低RIN噪声和超窄线宽等特点，目前广泛应用于车载LiDAR和光纤传感检测系统。 划译 The LD-PD INC narrow linewidth semiconductor laser module has characteristics such as ultra-low RIN noise and ultra narrow linewidth, and is currently widely used in vehicle mounted LiDAR and fiber optic sensing detection systems.

High power narrow linewidth ECL external cavity semiconductor laser module 1550nm 10mW<5KHz

1550nm narrow linewidth single frequency semiconductor laser module 10mW

The narrow linewidth single frequency laser of LD-PD adopts a unique semiconductor external cavity structure. The typical output bandwidth is less than 3kHz linewidth, and the sensitivity of wavelength to vibration is low. This device has high edge mode suppression ratio, low relative intensity noise, and excellent wavelength stability, making it suitable for various applications in harsh environments. LD-PD narrow linewidth single frequency laser has independent technical recognition, high structural stability, mature technology, and is suitable for mass production. This product complies with Telcordia GR-468 standard and has passed long-term reliability testing.

Single frequency narrow linewidth laser diode module (633/660/785/830/895/1064/1572nm) 30mW

1560nm PPLN waveguide doubling module

Optical frequency doubling has a wide range of applications in laser technology. It can convert infrared laser into visible laser, or convert visible laser into shorter wavelength laser, thereby expanding the coverage range of laser spectral lines. To obtain lasers with shorter wavelengths, multi-stage frequency doubling technology can be used. At present, there are many types of frequency doubling crystals that can achieve considerable frequency doubling conversion efficiency. The nonlinear crystal of Xiaoxiao Photon can achieve nonlinear processes such as sum frequency, difference frequency, and frequency doubling. Taking the 1560nm PPLN frequency doubling crystal as an example, the principle and performance of this product will be introduced. This crystal utilizes second-order nonlinear effects to convert 1560nm light into 780nm light output, achieving optical second harmonic generation. Optical second harmonic, also known as optical second harmonic, refers to the phenomenon where a monochromatic light with a frequency of ω 1 is incident on a nonlinear medium and produces a 2 ω 1 light wave. It is a manifestation of the second-order nonlinear polarization generated by the medium under the action of the fundamental frequency light wave electric field. In addition, the crystal is a waveguide structure with high frequency doubling efficiency. The input and input ends of the waveguide are coupled with polarization maintaining jumpers corresponding to the wavelength band, making it convenient for users to use directly without manual coupling.
