The Idealphotonics narrow linewidth single-frequency laser features a unique semiconductor external cavity structure. The typical output bandwidth is less than 3 kHz, and its wavelength is less sensitive to vibrations. This device offers a high side-mode suppression ratio, low relative intensity noise, and excellent wavelength stability, making it suitable for various applications in harsh environments. The Idealphotonics narrow linewidth single-frequency laser has proprietary patents, with high structural stability and mature technology, making it ideal for mass production. This product complies with the Telcordia GR-468 standard and has passed long-term reliability testing.

Product features：Polarization-maintaining fiber output, linewidth less than 3 kHz、 Low phase noise and relative intensity noise、 Stable structure with low sensitivity to vibrations、 ITU-T wavelengths from 1530 to 1565 nm, customizable upon request、 Operating temperature range: 0 to 70°C、 Complies with Telcordia GR-468 standard

Part Number：MP-NL-1550-10-3k-PA-M

Application area：LiDAR、 Fiber Optic Hydrophone、 Resonant Fiber Optic Gyroscope、 Distributed Fiber Optic Sensing、 Coherent Communication、 Scientific Research

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Wavelength Output Power

1550nm 10mW

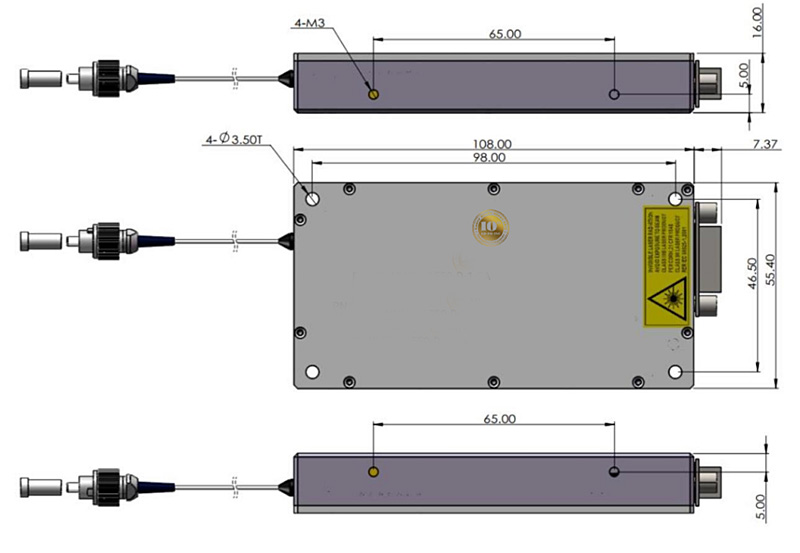

Dimension Drawing

General Parameters

Technical Parameters

Parameters	Unit	Min.	Typ	Max.	Condition
Output Power	dBm		10		Continuous Wave
Power Stability	%		10		0~70 ℃
Power Stability	%			0.3	± 1 ℃
Center Wavelength (ITU-T DWDM)	nm	1530		1565	Standard Development, Std Dev. ± 40 pm
Wavelength Tunable Range	pm		30		Adjust with TEC temperature
Line Width	kHz	A:<3,B:<5,C:<10,D:<100
Relative Intensity Noise	dBc/Hz	-165			@100kHz
Optical Frequency Stability	MHz		3		8-hour in incubator (from two narrow linewidth single-frequency lasers' beat frequency)
SMSR	dB	50
Optical Signal-to-Noise Ratio	dB	60
Polarization Extinction Ratio	dB	20			Slow Axis Alignment
Optical Isolation	dB	40
Voltage	V	4.75	5	5.25
Power Consumption	W			6	0~70 ℃
Operating Temperature	℃	0		70
Dimensions	MM	100 × 57 × 12
