405nm-976nm Highly Stabilized Compact Wavelength-Locked Laser System HiRes

405nm-976nm Highly Stabilized Compact Wavelength-Locked Laser System HiRes

This is a high wavelength stability compact laser system suitable for Raman spectroscopy and high-resolution applications. The system provides exceptionally stable single-mode laser emission with a coherence length of up to 10m, a typical side mode suppression ratio of 40dB, and wavelength stability better than 0.015nm. It is available in several standard output power versions: 75mW, 100mW, 175mW, 225mW, and 500mW. Customization based on wavelength or output power is also available upon request.

Product features：Precision wavelength locking; Narrow linewidth; Compact integrated design; Fast tuning capability; Low noise output

Part Number：MP-WLOK-405-976-HiRes

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power

405nm-976nm up to 500mW

Dimension Drawing

General Parameters

Optical Parameter

Wavelength	Maximum output power	Spectral Linewidth^*3	Coherence length^*3
405 nm	25, 40mW	<160 MHz/0.1 pm	>1.0 m
633 nm	40, 70mW	<20 MHz/0.05 pm	>10.0 m
638 nm	120mW	<150 MHz/0.2 pm	>2.0 m
640 nm	32 mW	<300 MHz/0.5 pm	>1.0 m
658 nm	40mW	<300 MHz/0.5 pm	>1.0 m
785 nm	100mW	<175 MHz/0.4 pm	>1.5 m
785 nm	225 mW	<10 MHz/0.05 pm	>10.0 m
808 nm	120mW	<50 MHz/0.1 pm	>2.0 m
808 nm	450^*2mW	<10 MHz/0.1 pm	>10 m
852 nm	270mW	<18000 MHz/45 pm	>1.5 m
852 nm	550^*2mW	<20 MHz/0.1 pm	>2.0 m
976 nm	270mW	<1500 MHz/5 pm	>20 cm

Beam Specifications

Parameter	Vaule
Beam Diameter	1.1 × 2.2 to 1.2 × 2.8 mm
Divergence Angle	< 1.2 mrad
Spatial Beam Mode	TEM00(except for multimode lasers)
Polarization	Linear polarization > 100:1typical
Beam Pointing	< 5 mrad und < 0.1 mm
Pointing Stability	< 5 µrad/K
Noise	< 2 % RMS
Power Stability	< 1 % (10 h)
Temperature Control Accuracy	< 10 mK
Warm-up Time	5s after ready for use，3 minutes after calibration
Drive Mode	Active current control
Modulationl Mode*	Adjustable constant power, analog and digital external modulation up to 1.5 MHz
Control Mode	Via USB control, optional remote control unit
CDRHClassification	3b, 4（for laser output>500mW）
Dimensions	63.5 × 31.0 × 32.5 mm
Weight	94g（laser head）
Operating Temperature	0°C to 45°C（non-condensing）
Storage Temperature	-25°C to 70°C

Note:

*Modulation may reduce beam quality and stability;

*2 Wayer cooler recommended

*3 Running laser continuously at maximum output power

Laser Controller

The laser head requires a laser controller to provide power and control all operating parameters. For scientific applications and prototyping we recommend using our PowerController. For

industrial integration we also offer the highly compact PowerBox to be directly attached to the laser head or connected via a customized cable. The 532 nm DPSS laser is only available with the PowerBox

Power Supply Control

This laser requires a laser controller to supply power and control all operating parameters. For scientific applications, we recommend using our power supply controller. For industrial integration, we also offer a highly compact power supply box that connects directly to the laser head or via a custom cable.

Power Supply Controller & Technical Parameters

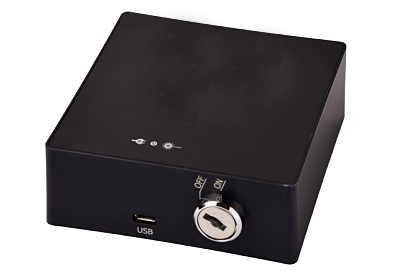

Power Supply Controller
Modulation Input	Analog and digital0-5VDC
Modulation Frequency	up to 0.5 MHz
Digital Interface	USB*1(RS-232 optional)
Control Inputs	Interlock, keyswitch, modulation mode switch
Cable Length	80cm(default）
Power Consumption	12VDC，up to 2A(depend on laser output power）
AC Adapter	100-240VAC，50-60Hz
Dimensions	85.0×85.0×32.5mm
Weight	416g

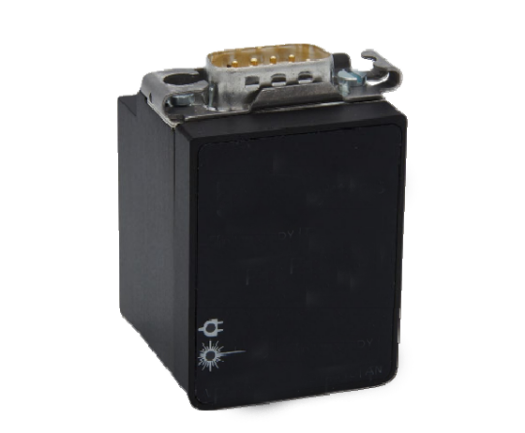

Power Box


Compact Power Sullpy Box
Modulation Input	Analog and digital 0-5VDC
Modulation Frequency	up to 1.5MHz
Digital Interface	USB*1(RS-232optional)
Control Inputs	Interlock
Cable Length	80cm(default）
Power Consumption	12-36VDC，up to 2A(depend on laser output power）
Dimensions	39.0×31.0×32.5mm
Weight	69g

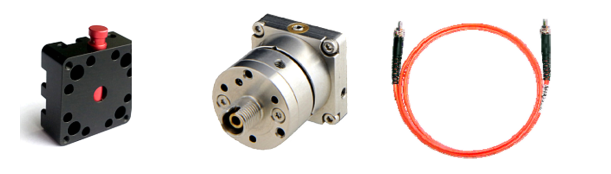

Options & Accessories


•Opto-mechanical shutter

• Diode wavelength selection

• Water cooling base plate

• Heatsink labor kit

• Cooling Ice kit

• RS-232 interface

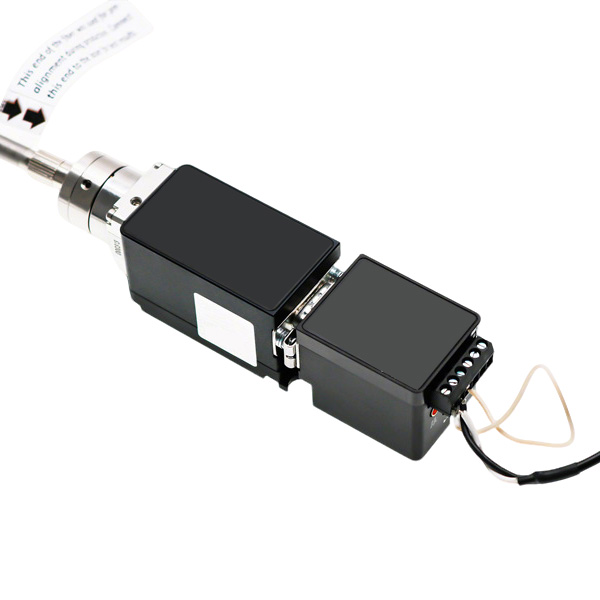

• Fiber coupler

• fibers

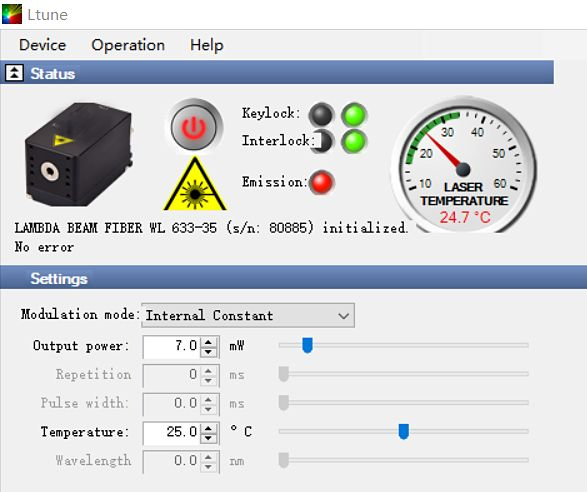

Control software

All operating parameters can be monitored and controlled from a PC using the Ltune laser control software for Windows. Alternatively, the laser can easily be controlled from your own application software. Please refer to the user manual for a detailed description of the communication protocol.

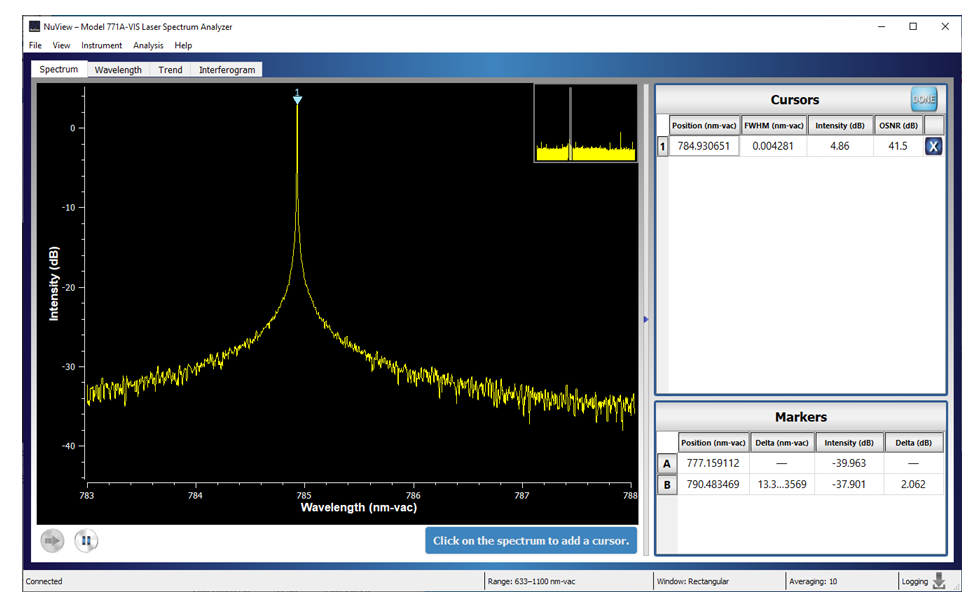

Typical emission spectrum of 785nm 100mW
