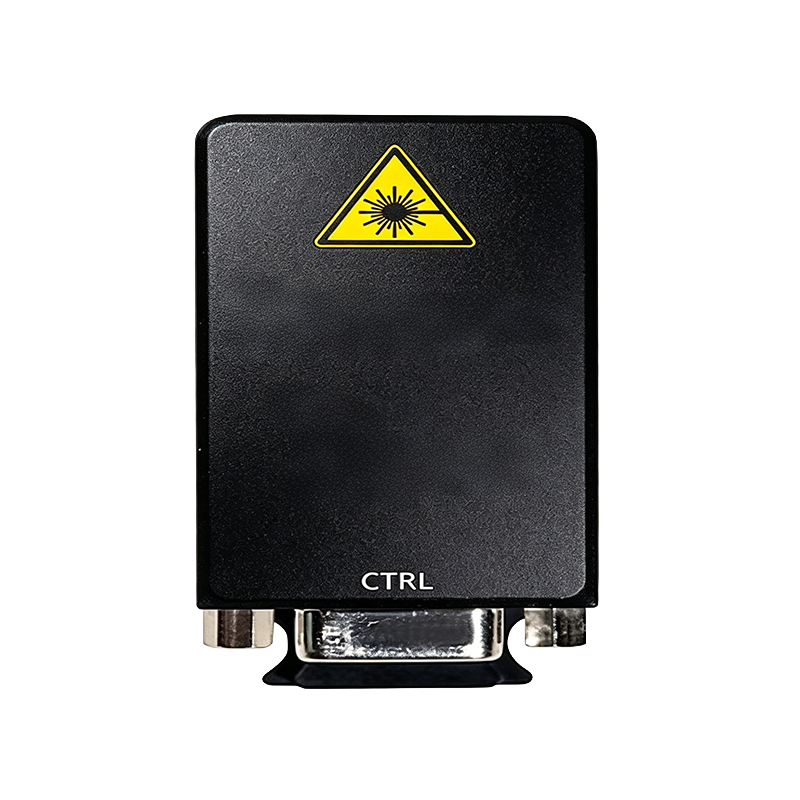

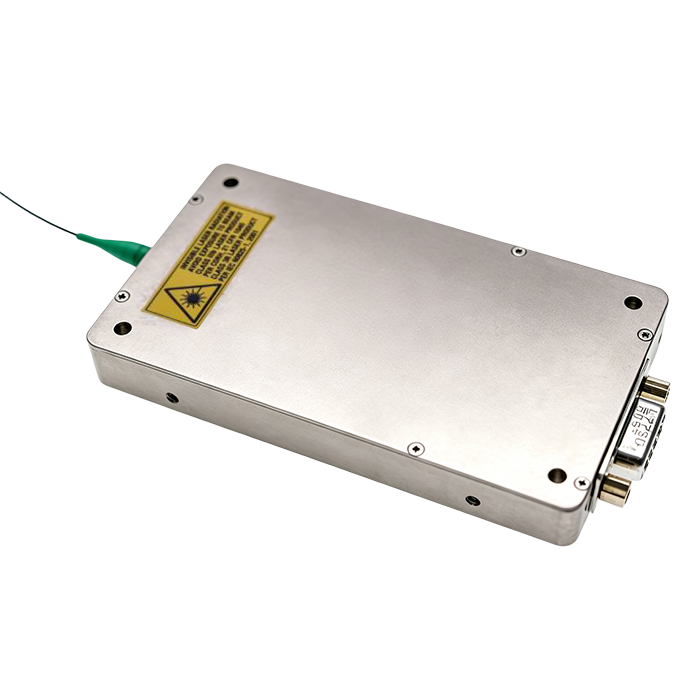

1550 nm Narrow‑Linewidth Laser Module, 10‑30 mW

This narrow linewidth laser module offers excellent performance and reliability (compliant with Telcordia GR‑468). With output power up to 30 mW, very low relative intensity noise (RIN), ultra‑low phase noise and narrow linewidth, particularly good wavelength stability, and strong resistance to vibration, the package is designed with customer needs in mind: high integration, small footprint, and self‑contained module.

Grace Guly

Phone：+86 13003168941

E-mail：grace@idealphtonics.com

WeChat WhatsApp

Product InformationModel Output PowerCenter WavelengthLinewidthFiber Connector Operate

1550±10nm 10mW 5kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-10-10-5k-PA-M 10 mW1550 ± 10 nm< 5 kHzFC/APC Add to Cart

1550±10nm 10mW 15kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-10-110-15k-PA-M 10 mW1550 ± 10 nm< 15 kHzFC/APC Add to Cart

1550nm 30mW 1kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-30-1k-M 30 mW1550nm< 1 kHzFC/APC Add to Cart

1550.12nm 10mW 1kHz Single-Mode Output Narrow Linewidth Laser Module MP-NL-1550-00-10-1k-PA-M 10 mW1550.12nm< 1 kHzFC/APC Add to Cart

1550±2nm 10mW 5kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-02-10-5k-PA-M 10 mW1550 ± 2 nm< 5 kHzFC/APC Add to Cart

1550±2nm 10mW 15kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-02-10-15k-PA-M 10 mW1550 ± 2 nm< 15 kHzFC/APC Add to Cart

1550±2nm 20mW 5kHz Polarization-Maintaining Output Narrow Linewidth Laser Module MP-NL-1550-02-20-5k-PA-M 20 mW1550 ± 2 nm< 5 kHzFC/APC Add to Cart

1550±2nm 20mW 2kHz Single‑Mode Output Narrow Linewidth Laser Module MP-NL-1550-02-20-2k-PA-M 20 mW1550 ± 2 nm2 kHzFC/APC Add to Cart
