    • 190–435 nm LIBS Spectrometer

    The 190-435 nm LIBS spectrometer is a compact spectrometer designed for laser-induced breakdown spectroscopy (LIBS) and high-resolution UV spectroscopic detection. It covers the wavelength range of 190-435 nm and achieves a typical spectral resolution of 0.15-0.2 nm, making it suitable for identifying and analysing adjacent emission lines in the ultraviolet region. The spectrometer employs a high-efficiency transmission grating and a compact Mirror-Grating-Mirror optical architecture, delivering high resolution, high throughput, and good environmental stability in a small footprint. It supports SMA fibre input and SPI / USB 2.0 data interfaces, facilitating easy integration into LIBS elemental analysers, portable spectral analysis systems, and OEM inspection equipment.

    Product features：190–435 nm UV coverage；High spectral resolution；Compact design；High wavelength stability

    Part Number：MP-LIBS-190-435

    Application area：Metal element composition analysis | Ore and mineral composition detection | Soil elemental analysis | Scientific spectral analysis

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Spectral Resolution

    190–435 nm 0.15–0.2 nm

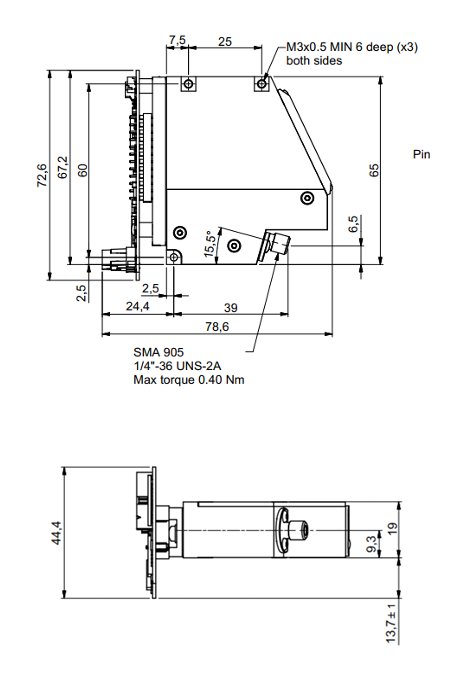

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Wavelength range

    190 - 435 nm

    Wavelength accuracy

    < 0.24 nm

    Spectral resolution

    0.15 - 0.2 nm

    Numerical aperture (NA)

    0.11

    Slit height

    750 µm

    Stray light

    <0.03%

    Optical input type

    SMA fibre input

    Detector type

    CMOS / BT-CCD

    Number of pixels

    2048 / 4096

    Electrical interface

    SPI / USB 2.0

    Temperature wavelength drift

    <0.02 nm/°C

    Operating temperature

    0 - 50 °C

    Storage temperature

    -40 - 65 °C

    Dimensions (W×H×D)

    61 × 65 × 19 mm





    Diffraction Efficiency Curve





    Optional Configurations

    --
