    • 820–860 nm OCT Spectrometer

    The 820-860 nm OCT spectrometer is a high-axial-depth, high-throughput OEM spectral detection module designed for SD-OCT (Spectral-Domain Optical Coherence Tomography) systems. Featuring a 40 nm spectral bandwidth and a 2048-pixel line-scan camera, it delivers a maximum measurement depth of 9.0 mm (in air) and an axial resolution of 9.2 μm (in air). The module incorporates a high-efficiency transmission grating and a stable optomechanical structure, offers USB3 or CameraLink interfaces, and supports multiple high-speed acquisition rates, making it suitable for integration into industrial, medical, and OEM OCT systems.

    Product features：820–860 nm OCT‑dedicated wavelength band；0.02 nm high spectral resolution；High‑speed acquisition；High optical throughput

    Part Number：MP‑OCT‑820‑860

    Application area：Industrial OCT inspection | Medical OCT imaging | 3D / Volume OCT | Internal structure inspection of transparent and semi‑transparent materials

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Spectral Resolution

    820–860 nm 0.02 nm (typical)

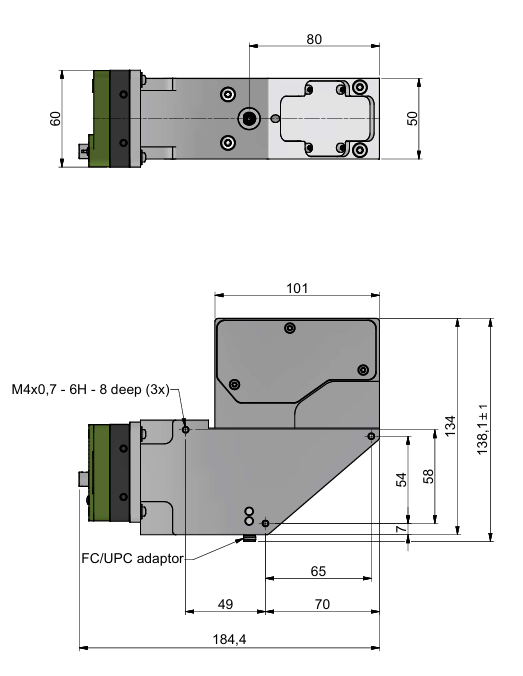

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Wavelength Range

    820–860 nm

    Spectral Bandwidth

    40 nm

    Spectral Resolution

    0.02 nm (typical)

    Maximum Measurement Depth

    9.0 mm (air) / 6.7 mm (water)

    OCT Axial Resolution

    9.2 μm (air) / 6.9 μm (water)

    Pixel Count

    2048

    Pixel Size

    10 × 200 μm

    Acquisition Speed

    20 / 80 / 130 / 250 kHz

    Optical Input

    FC/UPC

    Numerical Aperture (NA)

    0.13

    Data Interface

    9.2 μm (air) / 6.9 μm (water)

    Wavelength Temperature Drift

    <0.002 nm/°C

    Operating Temperature

    10～45°C

    Storage Temperature

    −10～50°C

    Dimensions

    185 × 138 × 60 mm

    Weight

    Approx. 1.4 kg

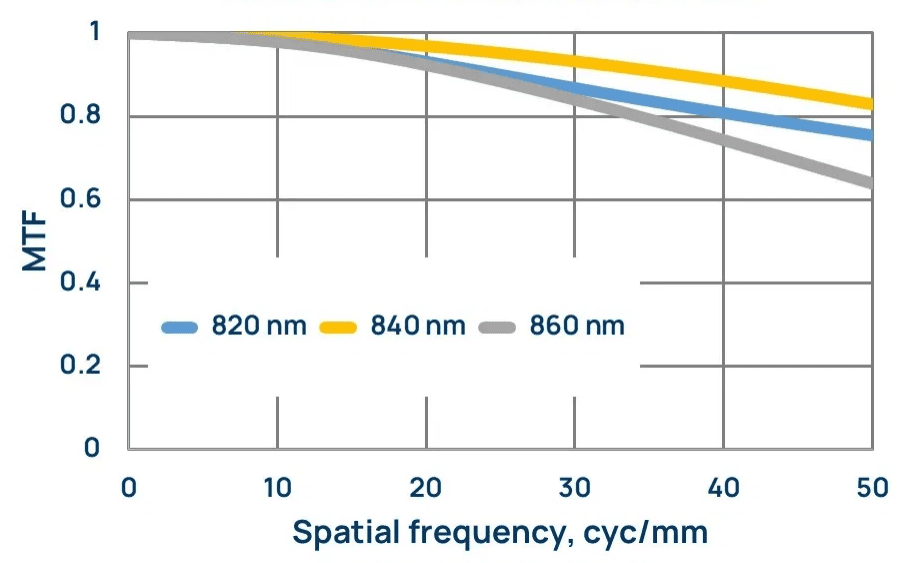

    Spectrometer MTF Performance Curve

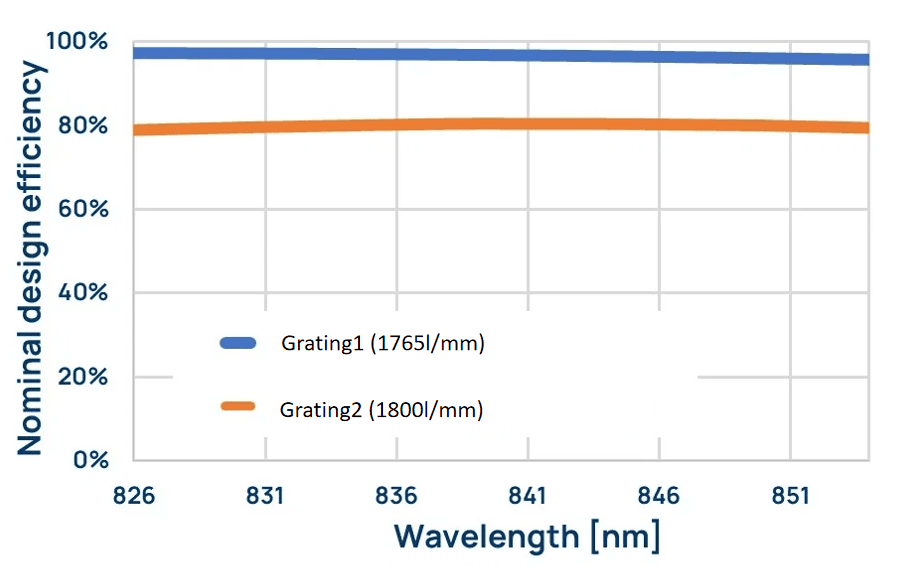

    Grating Efficiency Comparison Curve





    Optional Configurations

    --
