    • 475–1100 nm LIBS Spectrometer

    The 475-1100 nm LIBS spectrometer is a compact, high-resolution spectrometer designed for Laser-Induced Breakdown Spectroscopy (LIBS) elemental analysis applications. It covers the visible to near-infrared range from 475 nm to 1100 nm. The system employs a high-dispersion transmission grating and a Mirror-Grating-Mirror (MGM) optical configuration, combining high resolution, high throughput, and compact size. It effectively resolves adjacent LIBS characteristic spectral lines and is suitable for material elemental identification, qualitative and quantitative spectral analysis.

    Product features：475–1100 nm broad wavelength coverage；High spectral resolution；Compact design；Low stray light

    Part Number：MP-LIBS-475-1100

    Application area：Metal element composition analysis | Ore and mineral composition detection | Soil elemental analysis | Scientific spectral analysis

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Spectral Resolution

    475 – 1100 nm 0.5 nm

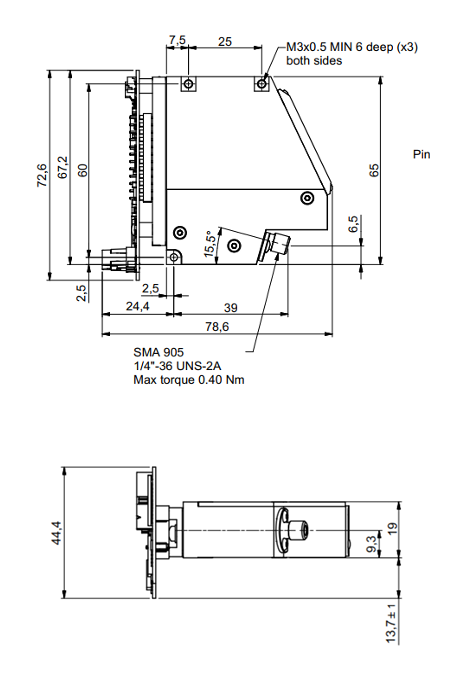

  • Dimension Drawing
    • General Parameters



    Parameter

    Parameter

    Wavelength range

    475–1100 nm

    Wavelength accuracy

    ＜0.24 nm

    Typical resolution

    0.5 nm

    Slit size

    5 × 750 µm

    Numerical aperture (NA)

    0.11

    Monochromatic stray light

    ＜0.03%

    Optical input

    Yes

    Detector type

    CMOS

    Number of pixels

    2048 × 1

    Pixel size

    14 × 200 μm

    Signal-to-noise ratio (SNR)

    380:1

    Dynamic range

    2150:1

    Cylindrical lens

    Equipped

    Electrical interface

    SPI / USB 2.0

    Temperature wavelength drift

    ＜0.02 nm/°C

    Operating temperature

    0 to +50°C, non-condensing

    Storage temperature

    -40 to +65°C, non-condensing

    Spectrometer dimensions

    61 × 65 × 19 mm

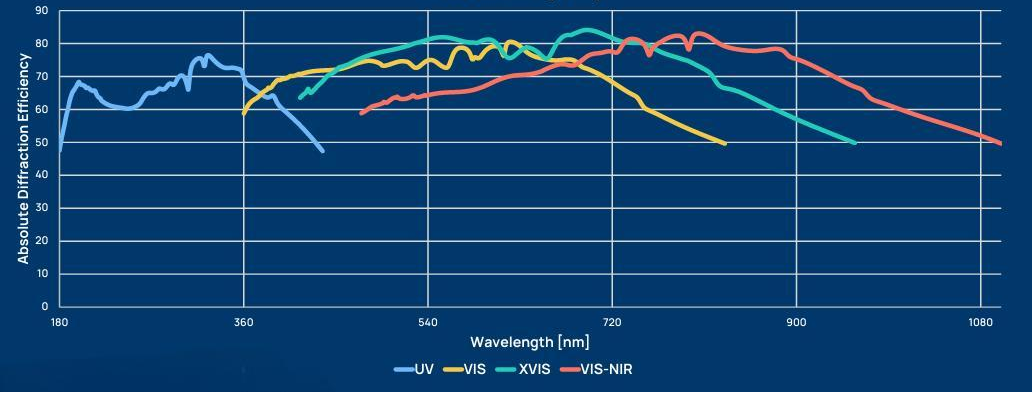

    Diffraction Efficiency Curve





    Optional Configurations

    --

    Downloads

    No resources available
