780–920nm OCT Spectrometer

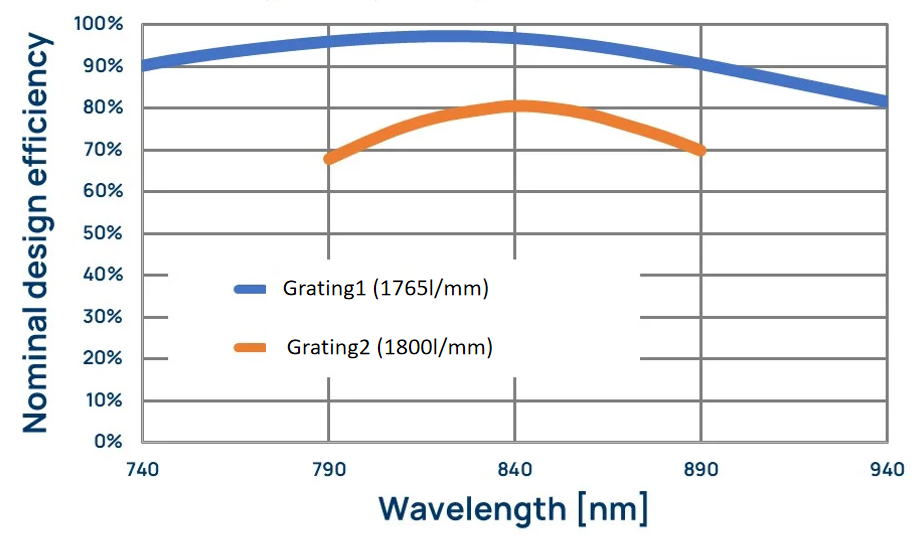

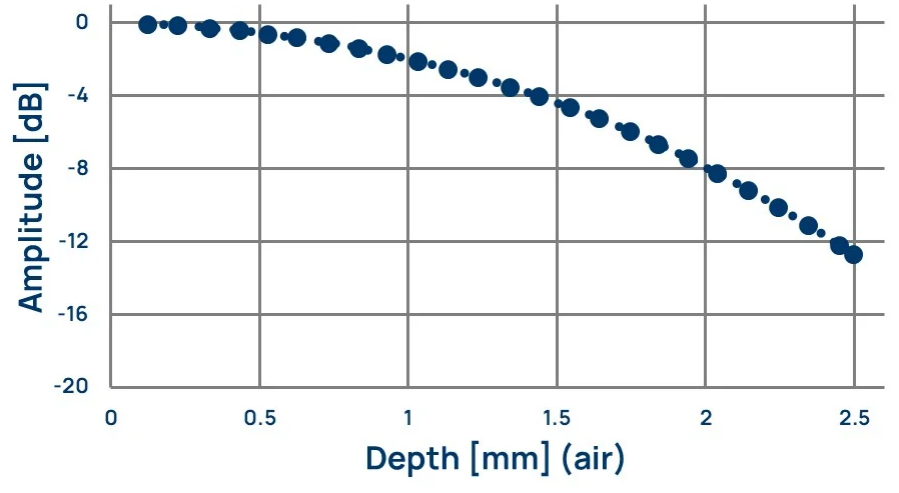

The 780-920nm OCT spectrometer is a broadband, high-speed spectral detection module designed for high-resolution SD-OCT systems. Covering a wavelength range of 780-920 nm, it employs a high-efficiency transmission grating and a 2048-pixel high-speed CMOS line-scan camera, achieving maximum acquisition speeds up to 250 kHz. The product delivers an axial resolution of approximately 2.7 μm in air, combined with high optical throughput, low temperature drift, and excellent roll-off performance. It is suitable for ophthalmic OCT, biomedical imaging, industrial inspection, and research system integration.
