826–854 nm OCT Spectrometer

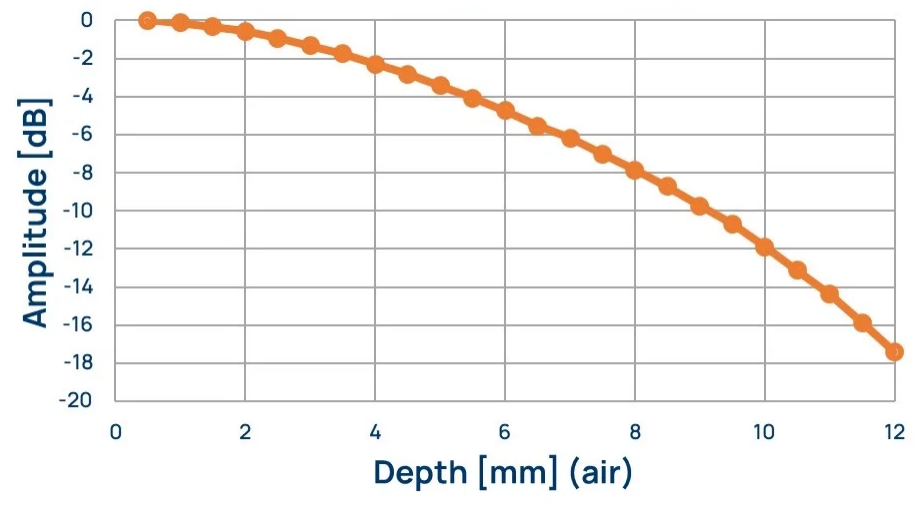

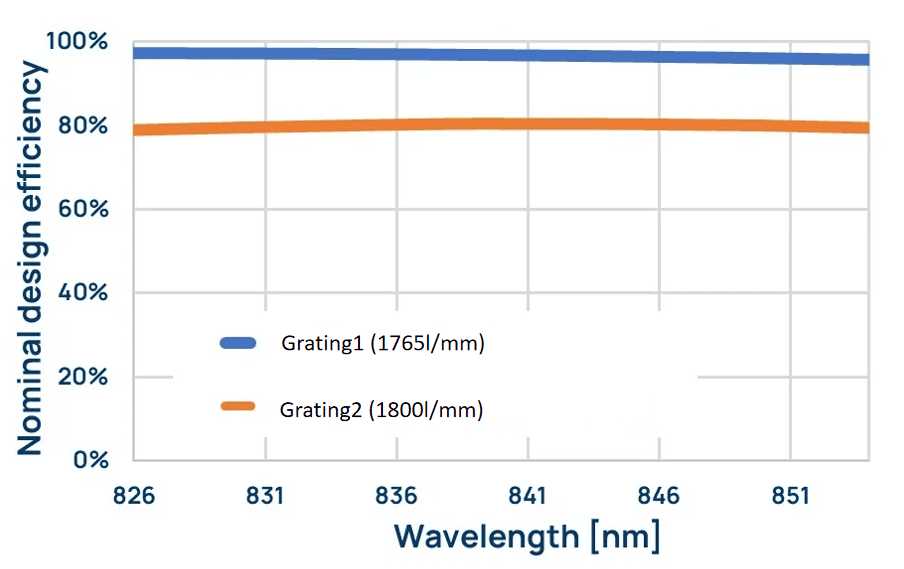

The 826-854 nm OCT spectrometer is a high-speed, high-resolution spectral detection module designed for SD-OCT (Spectral-Domain Optical Coherence Tomography) systems. Employing a high-efficiency transmission grating and a 2048-pixel high-speed linear array detector, it achieves a spectral resolution of 0.015 nm, an axial measurement depth of 12.9 mm in air, and a full-pixel acquisition rate of up to 61 kHz, with a 1024-pixel binning mode reaching up to 101 kHz. The module features excellent roll-off performance and a compact OEM design, making it suitable for industrial OCT, medical OCT, long-range OCT, 3D imaging, and in-line inspection systems.
