2.8um 10W Mid-Infrared Continuous-Wave Power Fiber Laser

2.8um 10W Mid-Infrared Continuous-Wave Power Fiber Laser

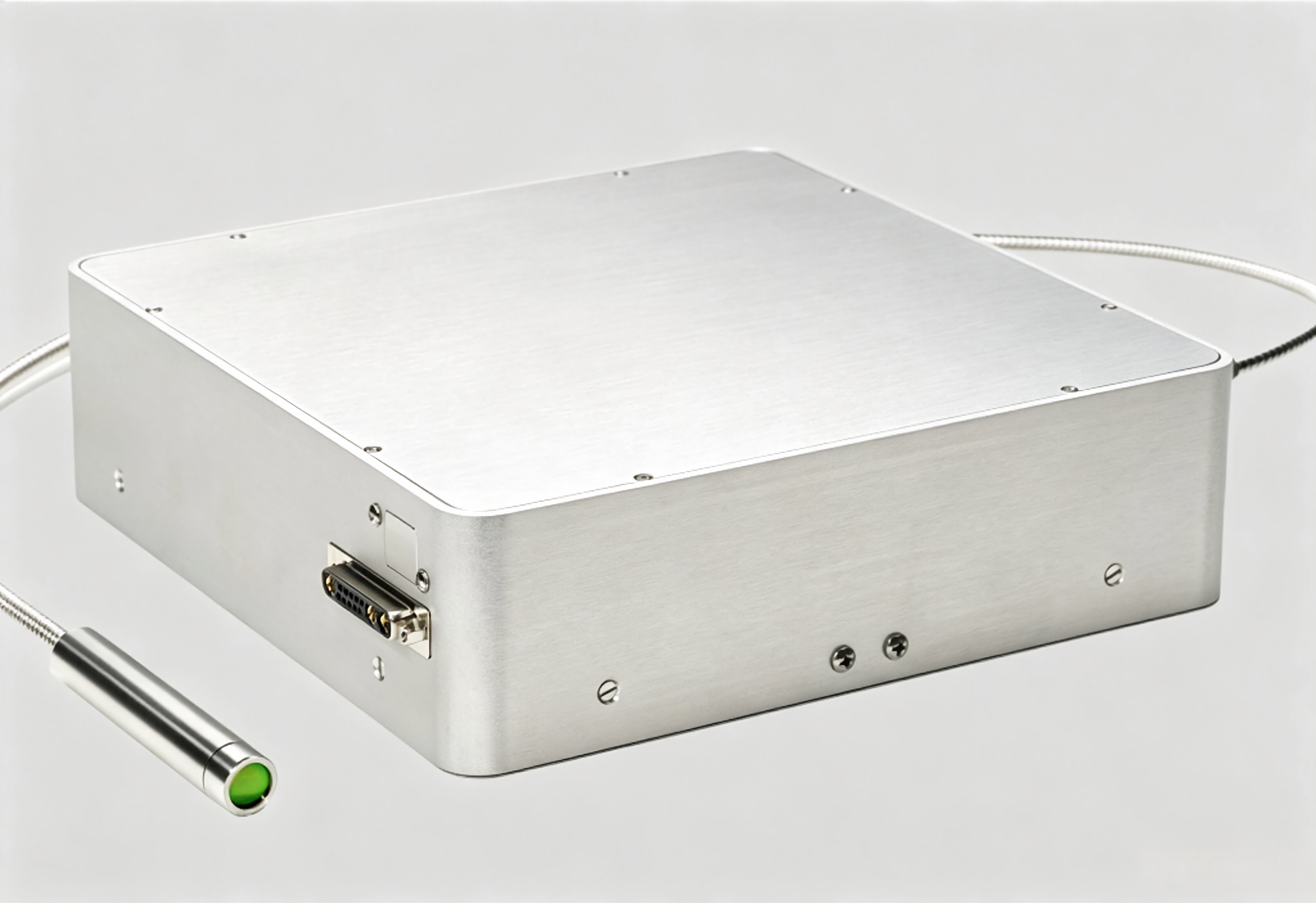

The 2800 series features a rugged, all-fiber design and delivers 10 W of average power at the water absorption peak. Its standard emission wavelengths are 2825 nm or 2910 nm, and it can also be customized to any wavelength between 2790 nm and 2940 nm to meet your specific needs. The 2800 series is highly absorbed by water-rich biological tissues, making it ideal for medical and aesthetic applications. With diffraction-limited beam quality, a compact design, and flexible delivery, the beam can be directed precisely where you need it.

Product features：Mid-infrared output; High continuous-wave power; All-fiber structure; Efficient heat dissipation design; Compact modularity

Part Number：MP-FLS-2800-C-10

Application area：Medical Surgery | Material Processing | Gas Sensing | Spectral Analysis | Defense & Security

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power Linewidth

2.825um(nominal) 10W <1nm

Dimension Drawing

General Parameters

Optical Parameters

Optical Parameter
Output Power	1，5，10W
Center Wavelength	2.825µm（nominal）（other wavelengths between 2.79µm and 2.94µm also available）
Linewidth	＜1nm
Polarization	Random
Operating Mode	CW or QCW (up to 100 Hz)
Output Beam Quality（M²）	＜1.3
Output Beam	Diverging output from single-mode fiber (collimated output optional)
Electrical Parameters
Operating Current	0.9-13A
Operating Voltage	＞14V
Power Consumption	＜200W
Mechanical and Environmental Parameters
Output Fiber Length	1.5米（customizable）
Dimensions（LHW）	23.6 cm X 23.6 cm X 6.6 cm
Weight	10 lbs(4.5 kg)
Cooling Interface	Conductive substrate with water-cooling option
Operating Temperature and Humidity	15 to 30°C, 5 to 85% RH (non-condensing)
