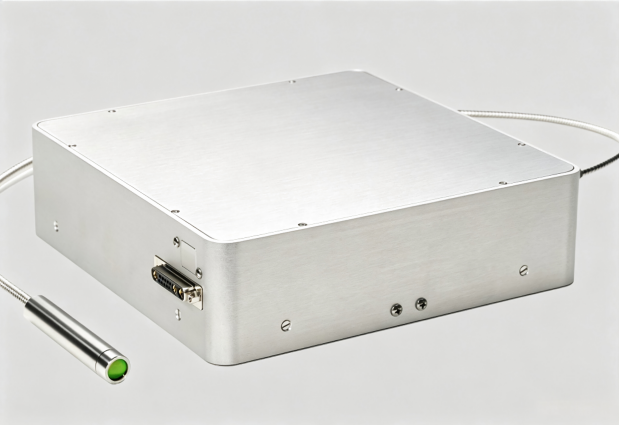

    • 3.2um 5W Mid-Infrared Continuous-Wave Power Fiber Laser

    The 3200 series delivers 5W of average power at 3.25μm, meeting the demands of most organic material processing, sensing, and defense applications. Its design can be customized to any wavelength between 3.1μm and 3.3μm to suit your specific application. The 3200 series is particularly well-suited for interacting with organic molecules containing C-H bonds, including most polymers and gases such as methane. The combination of high power and excellent beam quality makes it the tool of choice for destructive processing and detection applications.

    Product features：Mid-infrared output; High continuous-wave power; All-fiber structure; Efficient heat dissipation design; Compact modularity

    Part Number：MP-FLS-3250-C-5

    Application area：Medical Surgery | Material Processing | Gas Sensing | Spectral Analysis | Defense & Security

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power Linewidth

    3.25um(nominal) 5W <1nm

  • Dimension Drawing
    • General Parameters

    Optical Parameters

    Optical Parameter


    Output Power

    up to 5W

    Center Wavelength

    3.25µm（nominal）（other wavelengths between 3.1µm and 3.3µm also available）

    Linewidth

    ＜1nm

    Polarization

    Random

    Operating Mode

    CW or QCW (up to 1kHz)

    Output Beam Quality（M2）

    ＜1.3

    Output Beam

    Diverging output from single-mode fiber (collimated output optional)

    Electrical Parameters


    Operating Current

    0.9-13A

    Operating Voltage

    ＞14V

    Power Consumption

    ＜200W

    Mechanical and Environmental Parameters


    Output Fiber Length

    1.5米（customizable）

    Dimensions（L*H*W）

    23.6 cm X 23.6 cm X 10 cm

    Weight

    11 lbs(5 kg)

    Cooling Interface

    Conductive substrate with water-cooling option

    Operating Temperature and Humidity

    15 to 30°C, 5 to 85% RH (non-condensing)
