    • 1550nm 5W 0.05nm Bandwidth Fiber Laser Source

    The fiber laser source features high efficiency, excellent beam quality, compact design, and high stability and reliability. It is widely used in industrial processing, material treatment, medical, scientific research, and communication fields.

    Product features：High power output; Stable wavelength; Efficient heat dissipation; Air-cooled package; Compact design

    Part Number：MP-FLS-1550-5W

    Application area：Laser Processing | Additive Manufacturing | Medical Equipment | Scientific Research Experiments | Defense Applications

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Average Power 3dB Bandwidth ASE Suppression

    1550nm 5W <0.05nm >50dB

  • Dimension Drawing
    • General Parameters

    Detailed Parameter

    Parameter

    Unit

    1 µm

    1.2 µm

    1.3 µm

    1.4 µm

    1.5 µm

    1.7 µm

    2 µm

    3 µm

    Center Wavelength

    nm

    1010-1100

    1100-1260

    1260-1380

    1390-1500

    1510-1630

    1640-1800

    1810-2350

    2600-3200

    Bandwidth

    nm

    <0.05

    <0.05

    <0.05

    <0.05

    <0.05

    <0.5

    <1

    <1

    Output Power

    W

    0.5 - 20

    0.5 - 20

    0.5 - 20

    0.5 - 20

    0.5 - 20

    < 1

    0.5 - 20

    0.02

    ASE Suppression

    dB

    > 50

    > 50

    > 50

    > 50

    > 50

    > 40

    > 50

    > 40

    Output Fiber Type


    SMF28-e or compatible

    SMF28

    SMF, MMF, DCF Free space, ZBLAN

    Output Connector


    FC, ST, SC or collimated

    Polarization


    Linear or Random

    Operating Temperature

    °C

    0-50

    Dimensions

    cm

    7 x 19 x 31 or 32x37x16

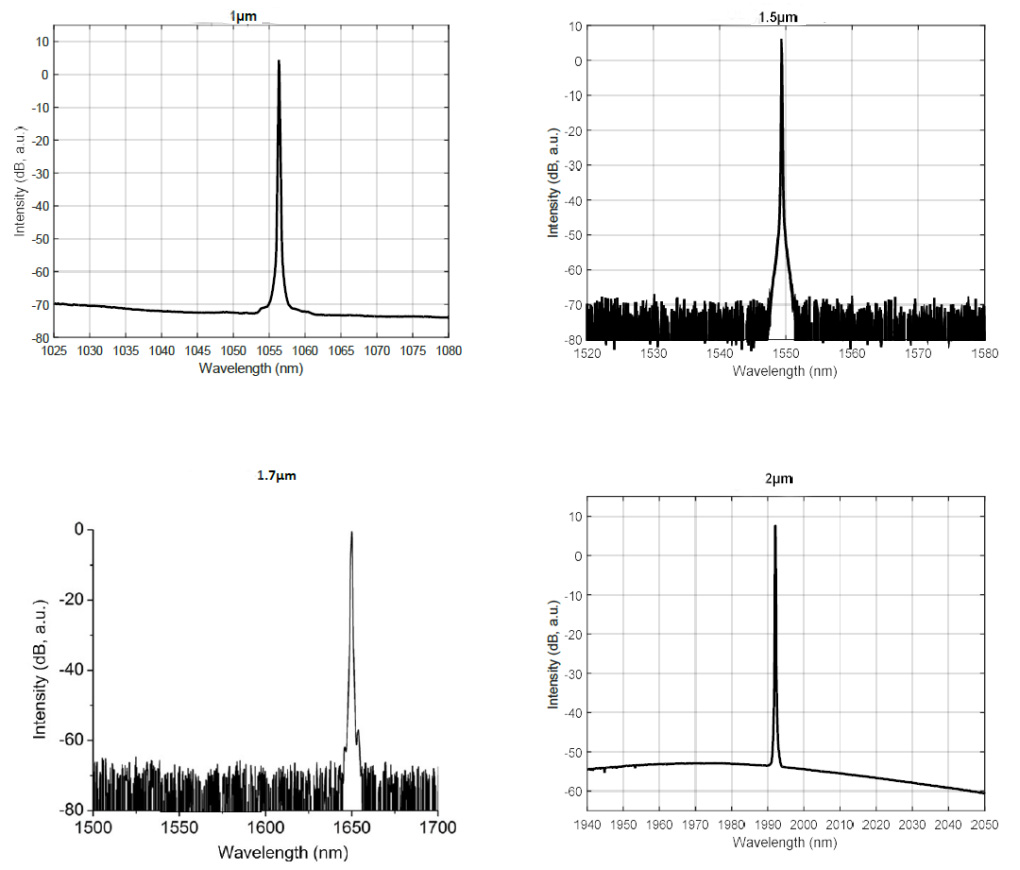

    Characteristic Curves



    Optional Configurations

    --

    Downloads
