515nm 80W 30ps Industrial High-Power Picosecond Quasi-Continuous Fiber Laser

515nm 80W 30ps Industrial High-Power Picosecond Quasi-Continuous Fiber Laser

This is a quasi-continuous fiber laser that delivers high-power, high-frequency picosecond pulses. Its innovative fiber design achieves high power, high pulse repetition rate, and picosecond pulses, all within a single-mode beam at 515 nm visible light. The combination of fiber technology with a simple and efficient laser head architecture makes OYAT a rugged, cost-effective visible QCW laser suitable for demanding industrial applications.

Product features：High-power green output;Ultrashort pulse duration;High repetition rate;Industrial-grade reliability;Intelligent control system

Part Number：MP-FLS-515-P-PS30-30M-80

Application area：OLED screen cutting | Photovoltaic cell scribing | Ceramic drilling | Semiconductor packaging | Medical stent engraving

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power Pulse Duration

515nm 80W@30MHz 30ps

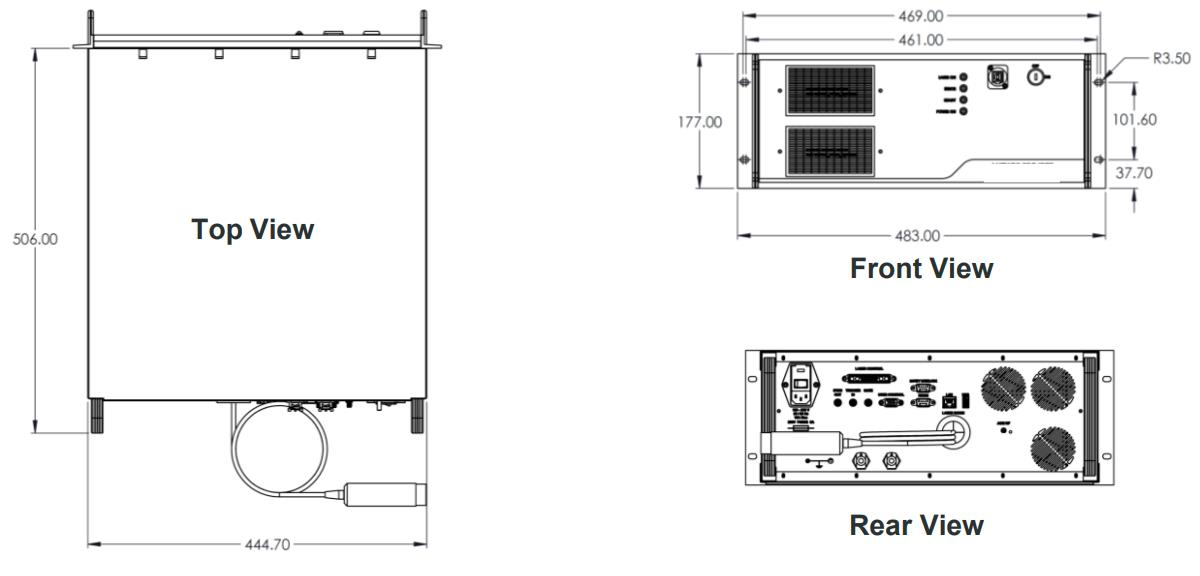

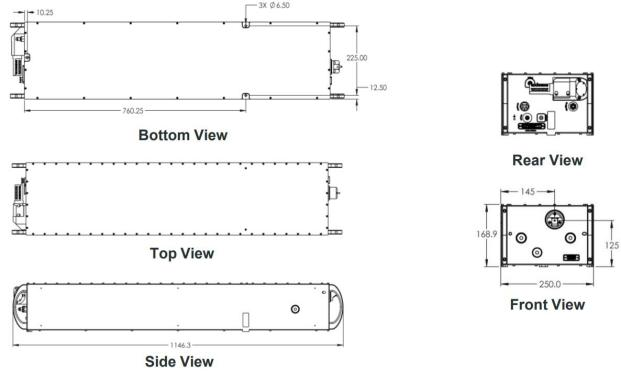

Dimension Drawing

General Parameters

Parameter	Specification
Wavelength	515nm
Power	80W@30MHz
Pulse Duration	30ps
Beam Quality	30MHz

Output Characteristics
Parameter	Specification
Center Wavelength	515±0.1nm
Power	80W
Pulse Width	30ps
Pulse Repetition Rate	30MHz
Power Stability	<2%, 2σ over 8 hours
Pulse-to -Pulse Energy Stability	<3% RMS
Beam Characteristics
Spatial Mode	TEM00
M2	≤ 1.2
Polarization Ratio	≥ 100:1 Linear
Polarization Direction	Vertical, ± 2°
Beam Divergence(Full Angle)	< 0.45 mrad
4σ Beam Diameter at Exit (Nominal)	3.5 mm ± 0.35 mm
Waist Location (from exit face of output window)	0 m ± 4 m
Astigmatism	≤ 30%
Beam Circularity	≥ 90%
Long-term Beam Pointing Stability, over 8 hours	≤ 25 µrad, full angle
Operating Conditions
External Communication	Ethernet/RS-232/USB
Cold Start	≤ 30 minutes
Hot Start	≤ 10 minutes
Voltage Requirements	100 – 240V AC
Line Frequency	50 to 60 Hz
Power Consumption	< 900 W
Temperature Range	15°C to 35°C (59°F to 95°F)
Humidity	10% to 95% RH, non-condensing
Altitude (non-adjustable)	0 to 11000 meters
Cooling Water Temperature	25°C ± 0.1°C
Minimum Cooling Power	700W
Cooling Water Flow Rate	5 liters/min, 3 liters/min minimum
Dimensions(LxWxH)	Laser Head: 1146×250×169mm (45.11 x 9.84 x 6.65 in) Control Unit: 506 x 483 x 177 mm (19.92 x 19.01 x 6.97 in)
Weight	Laser Head: 50 kg (110 lbs) without water Control Unit: 25 kg (55 lbs)
Internal Power Monitoring	Monitors power at every stage of the laser
Pulse Characteristics with Power Variation	Constant pulse width, pulse energy, and beam parameters
Data Extraction	Long-term and short-term laser operation logs, diagnostics, maintenance
Alignment Beam	Low-power mode for laser installation and alignment
Sacrificial Window	Field-replaceable unit
Best Practices	Sealed laser head, multi-level components cleaned and assembled in ISO Class 6 cleanroom

Power Dimension

Optional Configurations

Downloads
