  • 1290nm 21dBm BOA Fiber-Coupled Booster Semiconductor Optical Amplifier

    A high-power fiber-coupled booster optical amplifier (BOA) designed specifically for the O-band with a central wavelength of 1290nm. This product utilizes advanced quantum dot gain materials and proprietary anti-reflection coating technology, delivering a saturated output power of up to 21dBm, making it suitable for various applications requiring high-power, broadband optical signal amplification.

    Product features:Fiber-coupled; high-power amplification; wide wavelength range; low noise; compact package

    Part Number:MP-BOA-1290-125-35-XA

    Application area:Fiber Communication | Laser Processing | Sensing System | Medical Laser | National Defense Technology

    Add to Cart Request for Quotation Consult Favorite

    Main parameters
  • Core parameters
  • Central Wavelength Peak Output Power@-3dB Bandwidth @ -3dB

    1290nm 21dBm 35nm

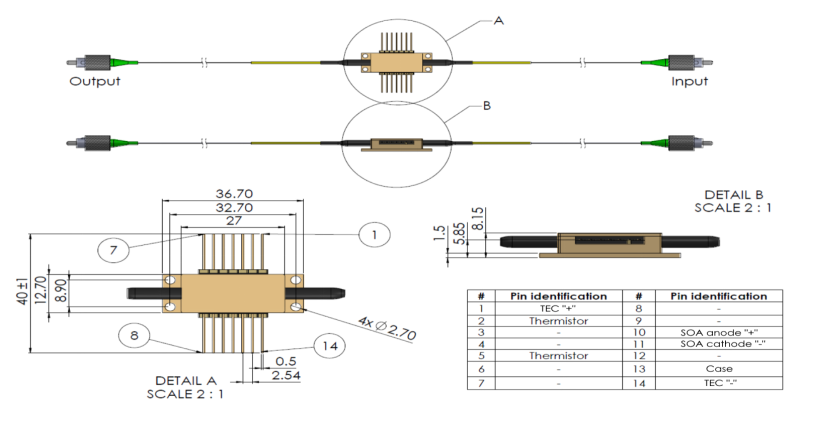

  • Dimension Drawing
  • General Parameters

    Detailed Specifications

    Recommended Operating Conditions

    @ CW, Tcase = 25°C

    Parameter

    Min.

    Typ.

    Max.

    Unit

    Chip Temperature

    20

    25

    40

    Forward Current

    2000

    3000

    mA

    Output Power (Amplification Mode)

    400

    mW

    Input Optical Power

    -20

    10

    15

    dBm



    Gain Characteristics

    @ CW, 25°C, 2000mA, Input Signal 10dBm, 1290nm

    Parameter

    Min.

    Typ.

    Max.

    Unit

    Forward Current @ 400mW

    3000

    mA

    Saturation Output Power @ -3dB

    17

    21

    dBm

    Gain

    12

    16

    dB

    Small Signal Gain @ Pin = -20dBm

    36

    41

    dB

    Peak Wavelength

    1280

    1290

    1300

    nm

    Bandwidth @ -3dB

    65

    nm

    Noise Figure @ Pin = -20dBm

    5.8

    dB



    ASE Characteristics

    @ CW, 25°C, 2000mA, No Input Signal

    Parameter

    Min.

    Typ.

    Max.

    Unit

    Output Power (Per Port)

    120

    mW

    Forward Voltage

    2.2

    2.8

    V

    Average Wavelength

    1225

    nm

    Bandwidth (FWHM)

    44

    nm

    Ripple (RMS)**

    0.04

    1

    dB

    Polarization Extinction Ratio (PER)

    12

    16

    dB

    Polarization

    TE

    ** Measured within 1nm range near the spectral maximum with 20pm resolution



    Absolute Maximum Ratings

    Parameter

    Min.

    Max.

    Unit

    Output Optical Power

    1000

    mW

    Input Optical Power

    20

    dBm

    Forward Current

    4000

    mA

    Reverse Voltage

    2

    V

    TEC Current

    3

    A

    TEC Voltage

    4

    V

    Chip Operating Temperature

    5

    50

    Case Operating Temperature

    0

    50

    Storage Temperature

    0

    50

    Lead Soldering Temperature (10s max, Max. Case Temp 120°C)

    300

    Fiber Bend Radius

    3

    cm

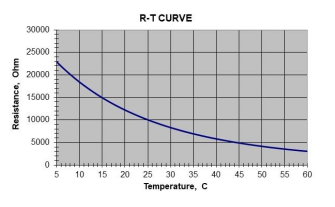

    Thermistor Specifications

    Fiber Specifications

    Parameter

    Value

    Unit

    Parameter

    PM980

    HI1060

    Unit

    Thermistor Type

    NTC

    Numerical Aperture, typical

    0.12

    0.14

    Resistance @ 25 °C

    10 ± 0.1

    Cutoff Wavelength

    900 ± 70

    920 ±50

    Nm

    Beta (25–85 °C)

    3435 ± 1%

    K

    Mode Field Diameter (@ 1060 nm)

    6.6 ± 0.3

    6.2 ± 0.3

    μm


    Cladding Diameter

    125±1

    125±1

    μm

    Coating Diameter

    245±15

    245±15

    μm

    Loose Tube Diameter (Optional)

    900

    900

    μm

    Connector

    FC/APC (narrow key)

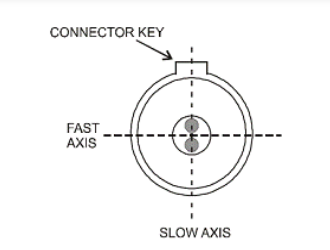

    Connector Alignment aligned with PANDA fiber


    Output light is polarized along the slow axis of the PM fiber.



    Characteristic CurvesTypical Performance (For Reference Only)

    @ CW, Tcase = 25°C

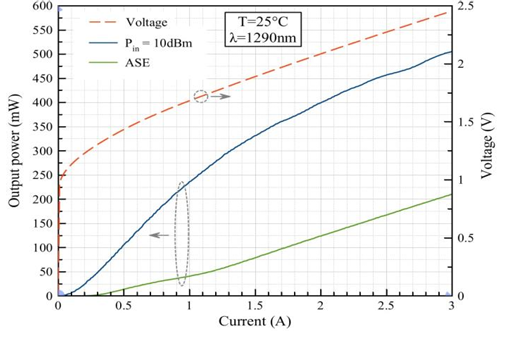

    Output Power vs Operating Current

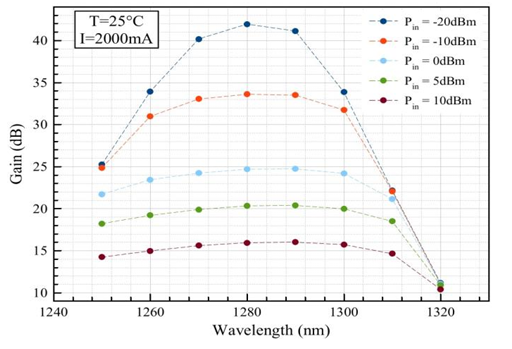

    Gain spectra

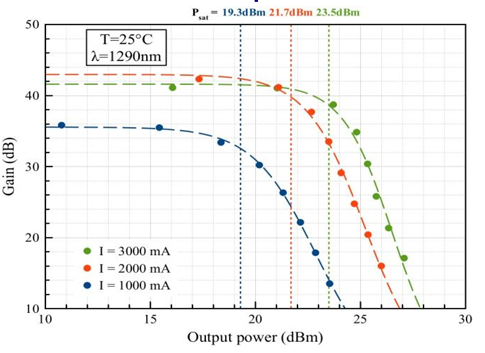

    Gain vs Output Power

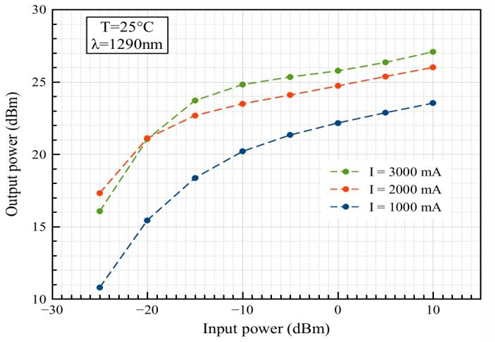

    Output Power vs Input Power

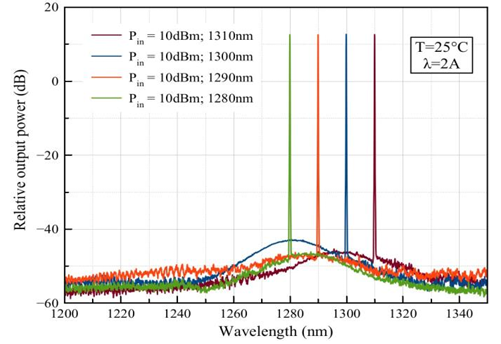

    Optical Spectra of amplified optical signals

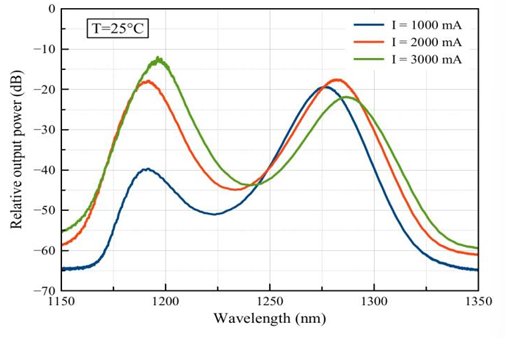

    Optical spectra(ASE)






    Safety and Operating Instructions

    The light emitted by this device is invisible and harmful to human eyes. Avoid direct eye exposure to the fiber connector while the device is in operation. Proper laser safety goggles must be worn when operating with the connector open.

    Absolute maximum ratings should only be applied to the device for short periods. Prolonged exposure to maximum ratings or exposure to multiple maximum ratings simultaneously may damage the device or impair its reliability. Operation beyond the absolute maximum ratings may result in device failure or safety hazards. A power supply suitable for the assembly must be used to ensure the maximum forward current is not exceeded.

    Devices mounted on a heat radiator require an appropriate heat sink. The device must be installed on the heat sink using 4 screws (cross-tightened with an initial torque of 0.075 Nm and a final torque of 0.15 Nm) or a clamping mechanism. The flatness deviation of the heat sink surface must be less than 0.05 mm. The use of indium foil or a soft thermally conductive material as a thermal interface between the bottom of the package and the heat sink is recommended. Thermal grease is not suitable for this purpose.

    Avoid back-reflection to the device. It may degrade the device performance in terms of spectral and power stability.It may also cause catastrophic facet damage. The use of an optical isolator to suppress back-reflection is strongly recommended.

    Do not pull the fiber. Do not bend the fiber with a radius smaller than 3 cm. The fiber tip shall be protected against contamination or damage at all times during installation. After removing the dust cap from the fiber tip, carefully clean it by wiping in one direction with optical lens cleaning paper or a cotton swab moistened with isopropyl alcohol or ethanol. Operate the device only with clean fiber connectors.

    ESD Protection – Electrostatic discharge is a major cause of unexpected product failure. Extreme caution shall be taken to prevent ESD. ESD protection must be maintained during device installation – use wrist straps, grounded work surfaces, and strict anti-static techniques when handling the product.


    Optional Configurations

    --
