1030nm 30mW PM Narrow Linewidth Laser Diodes

1030nm 30mW PM Narrow Linewidth Laser Diodes

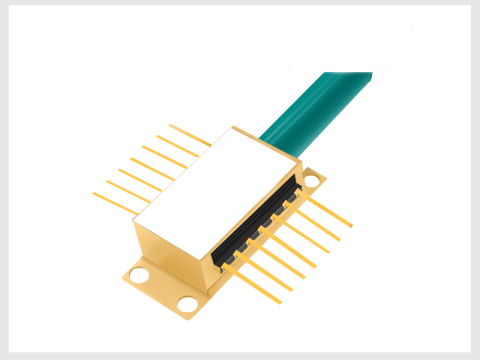

Single frequency FBG-stabilized laser diode module designed for optical measurement and communication. The laser is packaged in Butterfly package with monitor photodiode and thermo-electric cooler (TEC). Module is pigtailed with 0.5-0.9 m of single mode or polarization maintaining (optional) fiber and connectorized by FC/APC connector.

Product features：Optical output: 30mW；Narrow linewidth (Δν < 1MHz)；Wavelength: 1030nm @ 25℃；SMor PMFiber (ø0.9mm)；FC-APC connector；14-pin butterfly package；Internal monitor PD and TEC；Low power consumption

Part Number：MP-NL-1030-A-A81-PA

Application area：Coherent Optical Communication | High-Precision Fiber Optic Sensing | LiDAR | Optical Metrology & Spectroscopy | Microwave Photonics

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Wavelength Output Power Fiber Type

1030nm 30mW PM

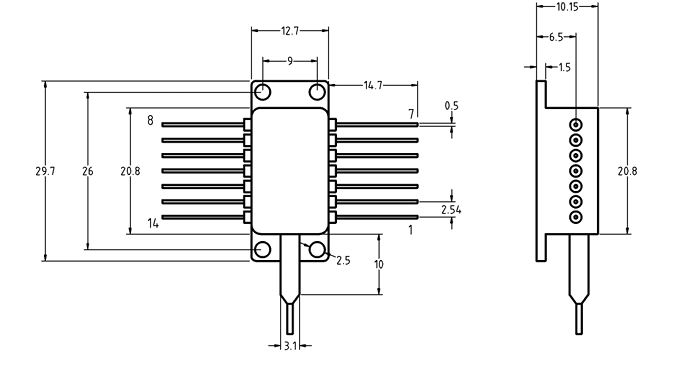

Dimension Drawing

General Parameters

Optical and Electrical Characteristics

Parameter	Symbol	Test condition	Min.	Typ.	Max.	Unit
Optical Power	P_f	CW	20	30		mW
Pulsed Optical Power	P_fp	Pulse, τ=10µs, D=1%		40		mW
Treshold Current	I_th		15	20	30	мА
Forward Current	I_f	P_f		150	200	mA
Pulsed Forward Current	I_fp	P_fp, τ=10µs, D=1%		300		mA
Forward Voltage	V_f	P_f			2.5	V
Center Wavelength	λ_c	P_f	1029	1030	1031	nm
Spectral Width	Δλ_c	P_f			1	MHz
Side Mode Suppression Ratio		SMSR	30			dB
Single-Frequency Continuous Tuning Range	Δf		1			GHz
Current Tuning	Δλ/ΔI			0.001		nm/mA
Temperature Tuning	Δλ/ΔT			0.08		nm/°C
Monitor Current	I_m	P_f	20		500	µA
PD Dark Current	I_d	V_rd=5V			0.1	µA
TEC Current	I_t	I_t			1.4	A
TEC Voltage	V_t	TC=70°C			2.7	V
Thermal Resistance	R₀	T=25°С, B=3900±100K	9.5	10	10.5	kΩ
Extinction Ratio (PM fiber)	X_p	P_f	20			dB

Absolute maximum ratings:

Parameter	Symbol	Rating	Unit
Forward Current	If	300	mA
Reverse Voltage	Vf	1.8	V
PD Reverse Voltage	Vrd	7	V
Minimum Operation Case Temperature	Tol	-40	℃
Maximum Operation Caser Temperature	Toh	70	℃
Minimum Storage Temperature	Tsi	-40	℃
Maximum Storage Temperature	Tsh	70	℃
TEC Current	It	1.5	A

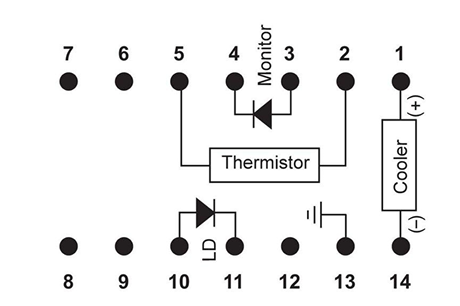

Pin definition


None PZT Bulit inside
NO	Parameter	NO	Parameter
1	Cooler anode+	8	NC
2	Thermistor	9	NC
3	PD anode-	10	LD anode+
4	PD cathode+	11	LD cathode-
5	Thermistor	12	NC
6	NC	13	Case
7	NC	14	Cooler cathode-

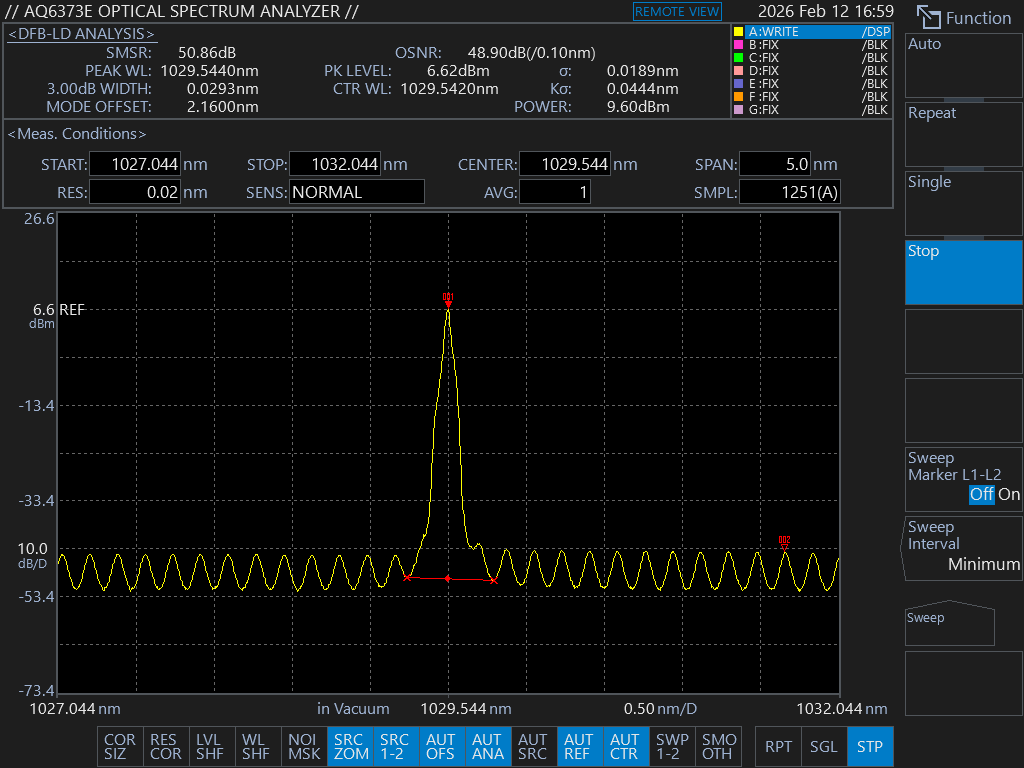

Spectrum

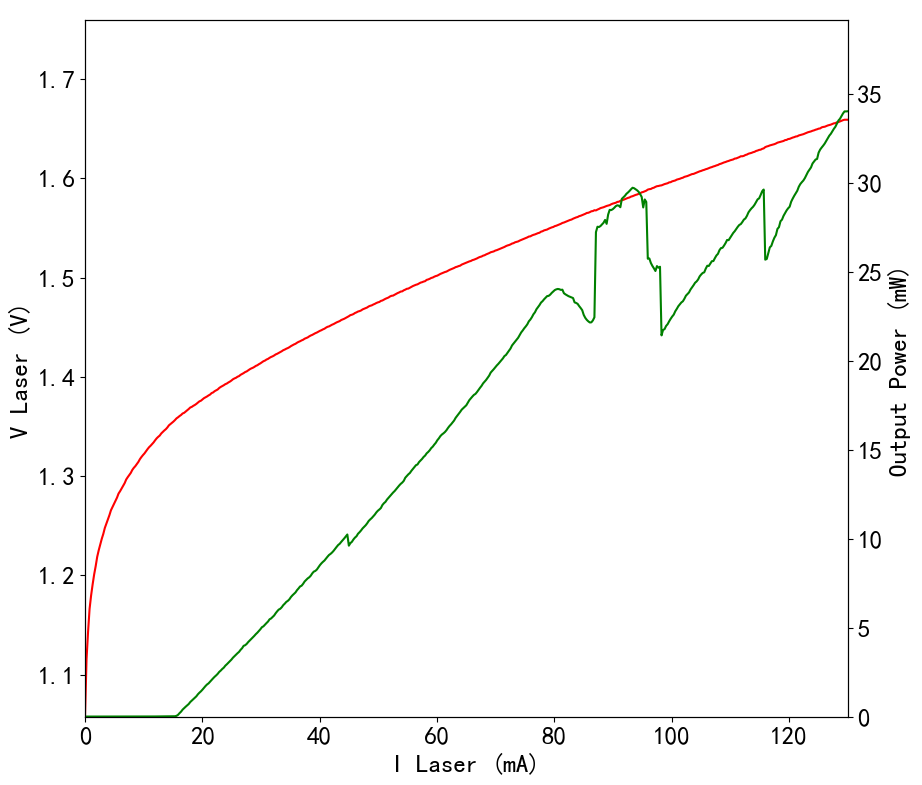

L-I-V Curve


Fiber Pigtail Specifications

Parameters	Description
Fiber Type	PM fiber
Jacket Type	900μm loose tube
Pigtail Length	1.0±0.1m
Connector Type	FC/APC
PM fiber Connector Orientation	Please see the right figure


Note: The PM fiber and the connector key are aligned to the slow axis,fast axis is blocked
