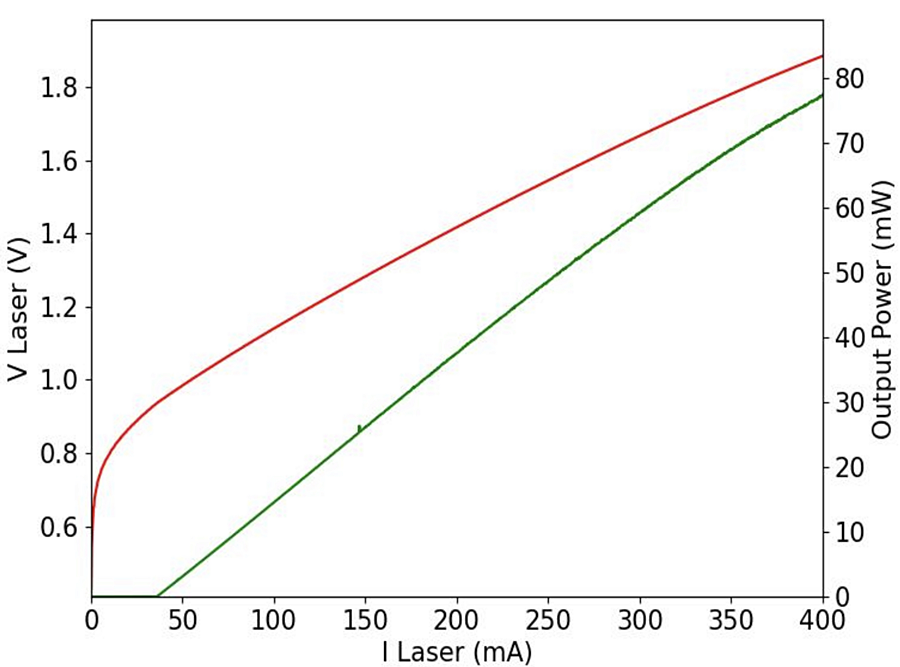

Output Power

Po

50

70

—

mW

Continuous Wave (CW)

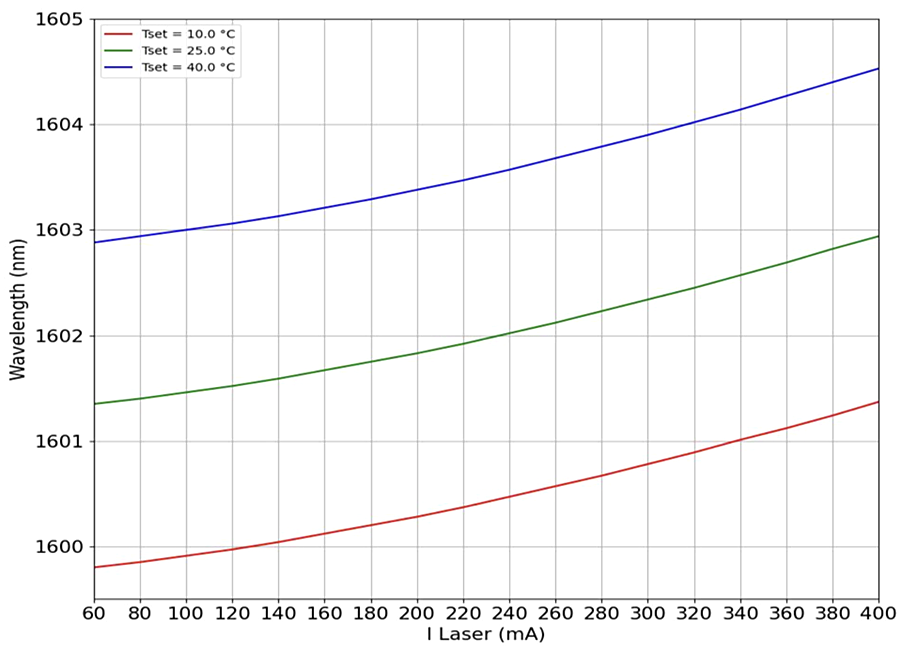

Center Wavelength

λc

1601.5

1602

1602.5

nm

T = 25 ℃

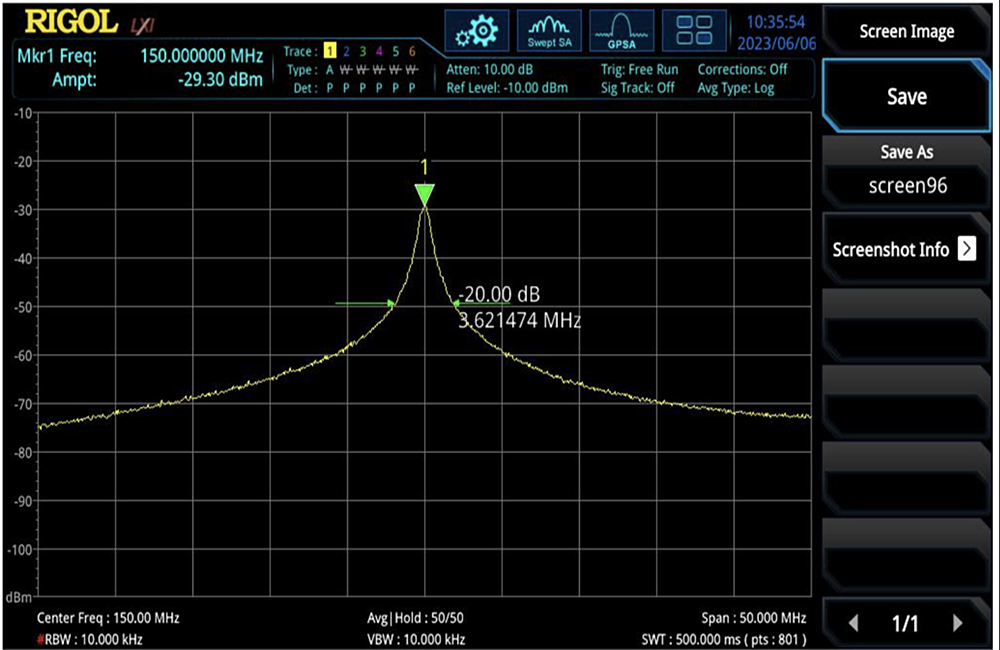

Spectral Linewidth (FWHM)

ΔνL

—

200

300

kHz

Lorentzian linewidth

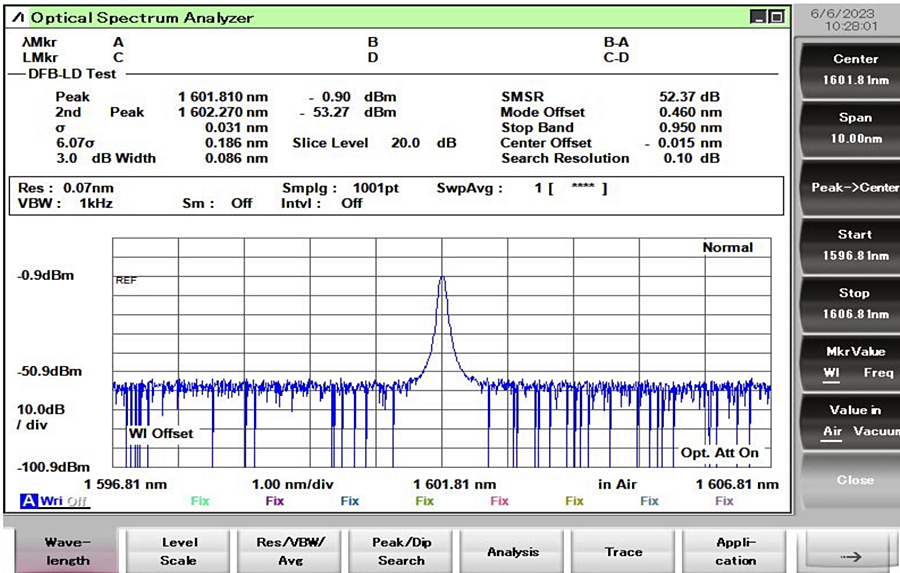

Side Mode Suppression Ratio

SMSR

40

—

—

dB

CW, at output power Po

Polarization Extinction Ratio

PER

20

—

—

dB

For PM devices, along slow axis

Relative Intensity Noise

RIN

—

-163

-155

dB/Hz

—

Optical Isolation

ISO

40

—

—

dB

—

TEC Set Temperature

TTEC

15

—

40

℃

—

Threshold Current

Ith

—

15

30

mA

At TEC set temperature TTEC

LD Operating Current

Ib

—

—

400

mA

CW, at output power Po

LD Forward Voltage

Vf

—

1.5

1.8

V

CW, at output power Po

Photodetector Bias Voltage

VR

4.75

5

5.25

V

Cathode to anode

Photodetector Current

Imc

—

—

2

mA

At output power Po

Photodetector Dark Current

Imd

—

—

1

nA

At bias voltage VR = 5 V

Operating Temperature

To

-40

25

80

℃

—

Storage Temperature

Ts

-40

—

80

℃

—

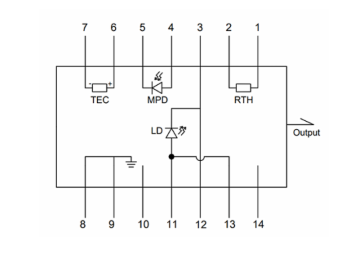

1

Thermistor

8

Case Ground

2

Thermistor

9

Case Ground

3

LD(-)

10

NC

4

Detector (+)

11

LD(+)

5

Detector (-)

12

LD(-), RF

6

TEC (+)

13

LD(+)

7

TEC (-)

14

NC
