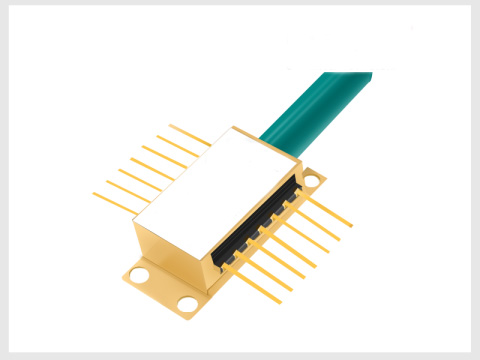

    • 660nm 20mW SM FBG stabilized Tunable laser diode

    This series Fiber Bragg Grating laser is single frequency laser diode module designed for optical measurement and communication. The laser is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC).The Single-Frequency Continuous Tuning Range: > 1.2 nm by adjust the Mini PZT Built in the laser diode.

    Product features：Optical output: 20mW；Narrow linewidth (Δν < 1MHz)；Wavelength: 660nm @ 25℃；SMor PMFiber (ø0.9mm)；FC-APC connector；14-pin butterfly package；Internal monitor PD and TEC；Low power consumption

    Part Number：MP-NL-0660-B-A81-SA-PZT

    Application area：Laser interference experiment | Optical Test and Instrumentation | Sensors

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Output Power Fiber Type

    660nm 20mW SM

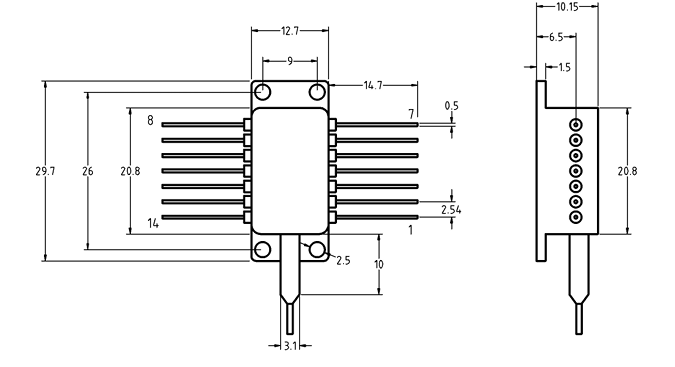

  • Dimension Drawing
    • General Parameters

    Optical Characteristics (at 25 °C laser temperature)

    Parameter

    Symbol

    Condition

    Min.

    Typical

    Max.

    Unit

    Center Wavelength

    λc

    TL=15～35℃ CW

    650

    660

    670

    nm

    Peak Optical Output Power

    PO

    -

    -

    10

    20

    mW

    Spectral linewidth

    LW

    -

    -

    1

    10

    MHZ

    Relative Intensity Noise

    RIN



    -

    -135

    db/HZ

    SMSR

    SMSR

    CW

    30

    40

    -

    dB

    PER

    ER

    -

    20

    -

    -

    dB

    Wavelength drift with case (-10 to 70 ºC) temperature

    △λ

    TL=15～35℃

    -

    -

    ±1

    pm

    Tuning Range(For PZT Version)

    Δf


    0.5


    1

    nm

    PZT Driving Voltage( PZT Version)

    VT


    0


    150

    V

    Mode Hope free Range

    ΔI



    3


    mA



    Electrical Characteristics (at 25 °C laser temperature)

    Parameter

    Symbol

    Condition

    Min.

    Typical

    Max.

    Unit

    Threshold Current

    ITH

    -

    -

    45

    65

    mA

    Operating Current

    Iop

    CW

    -

    120

    150

    mA

    TEC set temperature

    Ts

    -

    15

    -

    35

    ℃

    Laser Forward Voltage

    VF

    CW output power@15 mW

    -

    1.3

    2.5

    V

    Monitor Dark Current

    ID

    Pf=15mw   VRD=5V

    -

    -

    0.1

    μA

    Thermistor Current

    ITC

    -

    10

    -

    100

    μA

    Thermistor Resistance

    RTH

    TLD=25°C, B=3900±100K

    9.5

    10

    10.5

    KΩ

    TEC Current

    ITEC

    IF=EOL,   TC=70°C

    -

    -

    1.4

    A

    TEC Voltage

    VTEC

    IF=EOL,   TC=70°C

    -

    -

    2.8

    V



    Spectrum

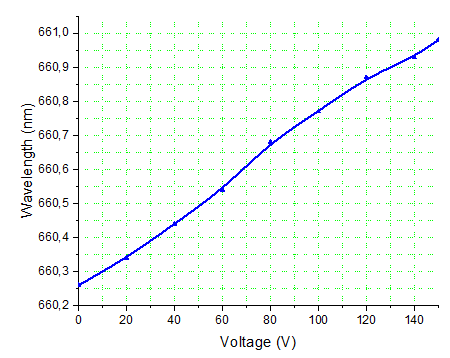

    Voltage Vs Wavelength(PZT Version)

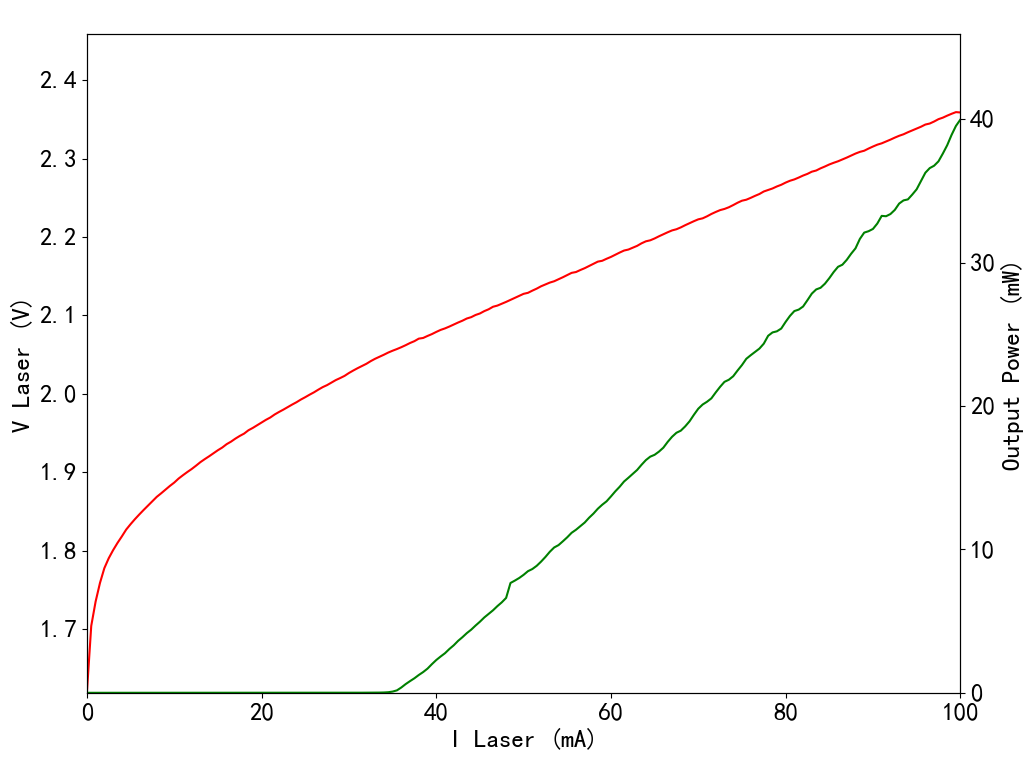

    L-I Curve

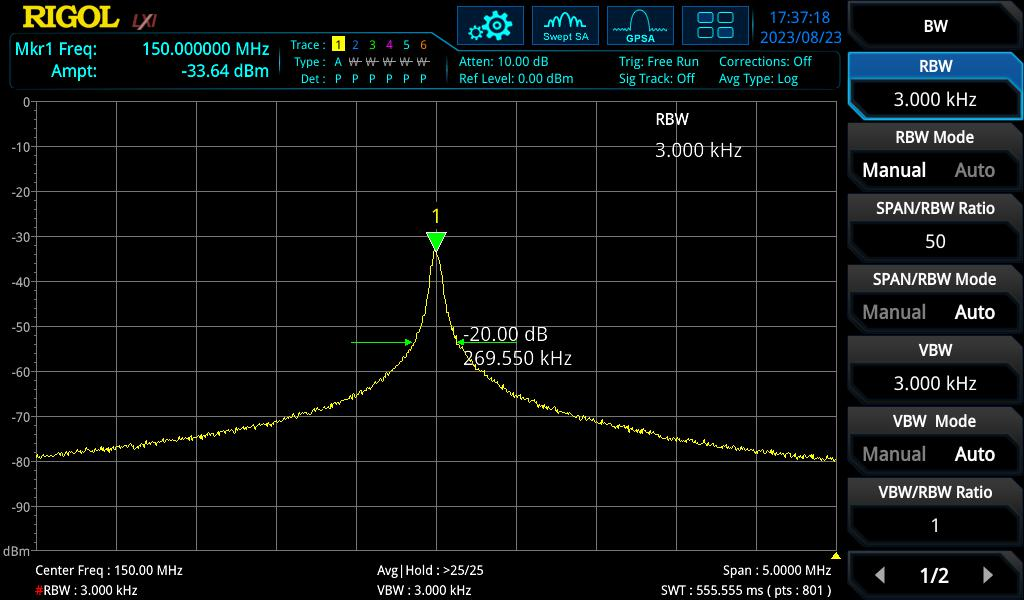

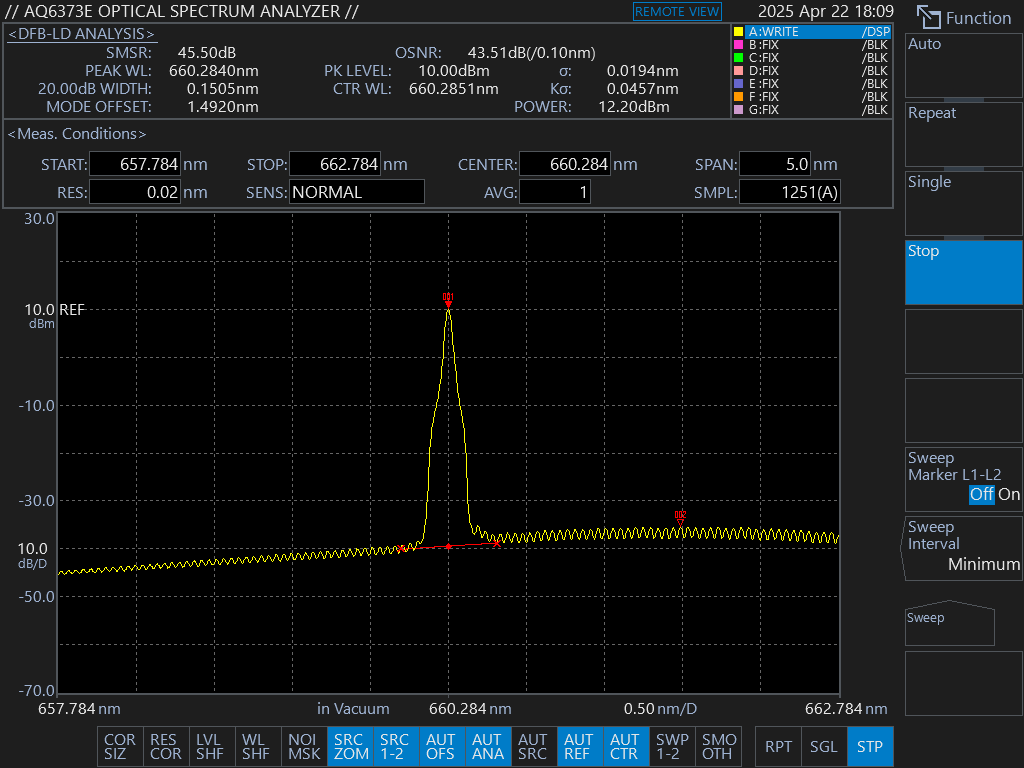

    Linewidth Testing Result

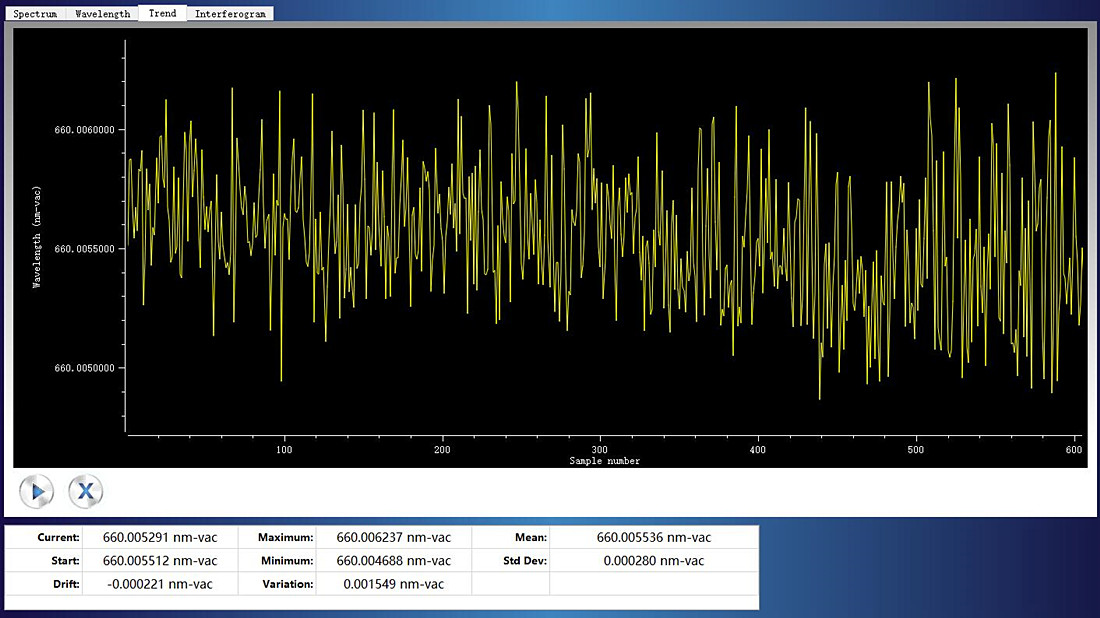

    wavelength Stability

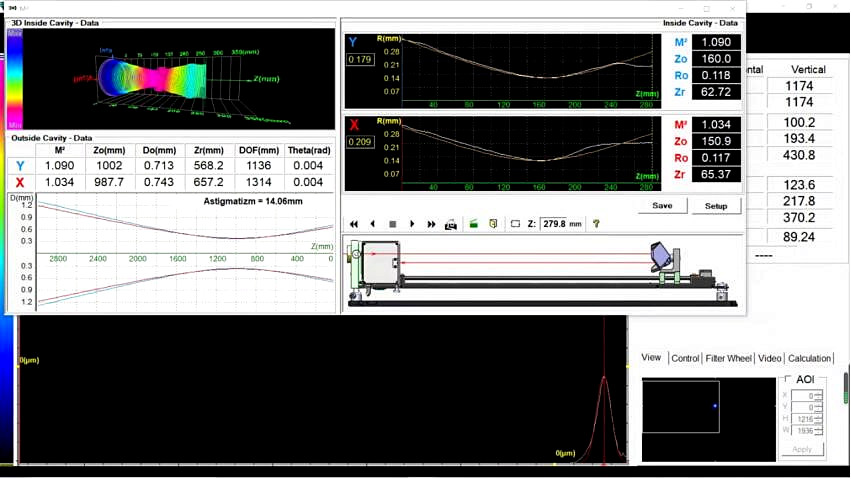

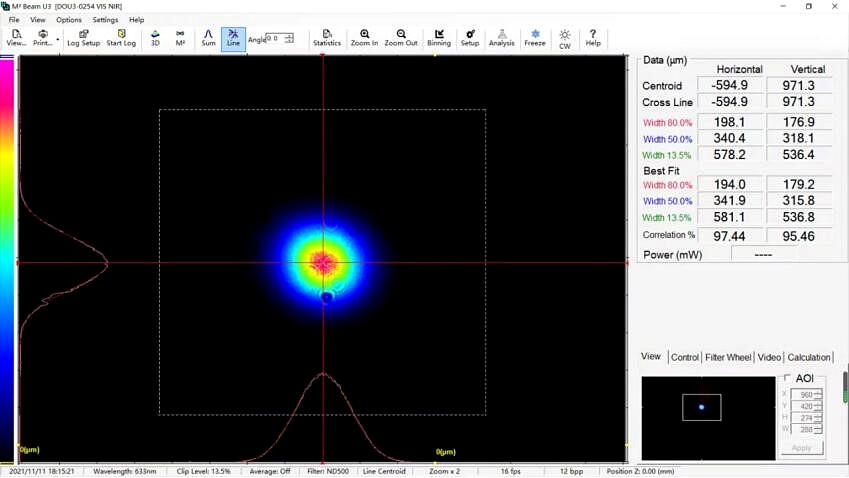

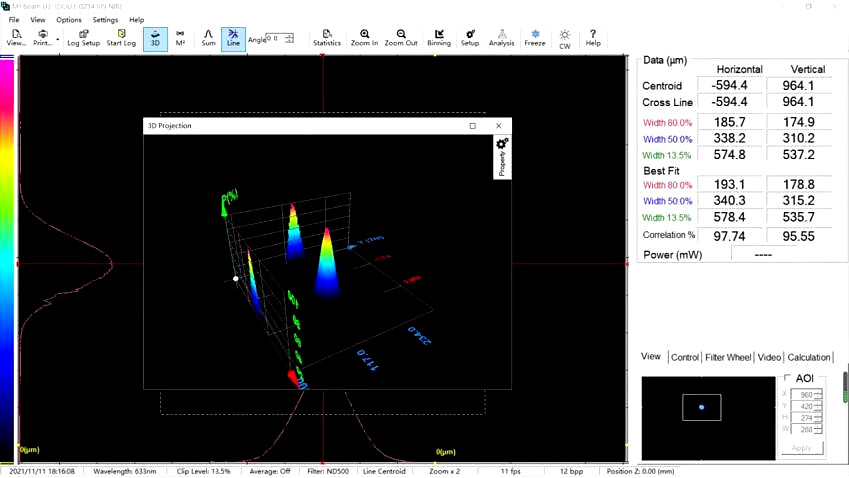

    Beam Quality(M2,2D/3D Beam）





    Absolute maximum ratings:

    Parameter

    Unit

    Min

    Typ

    Max

    Case Temperature

    °C

    -40

    25

    70

    Chip Temperature

    °C

    +10

    25

    40

    Operating Current

    mA

    0

    150

    170

    Forward Voltage

    V

    0.8

    1.2

    1.8

    TEC Current

    A

    -

    1.2

    1.4

    Reverse Voltage(LD)

    V

    -

    -

    1.8

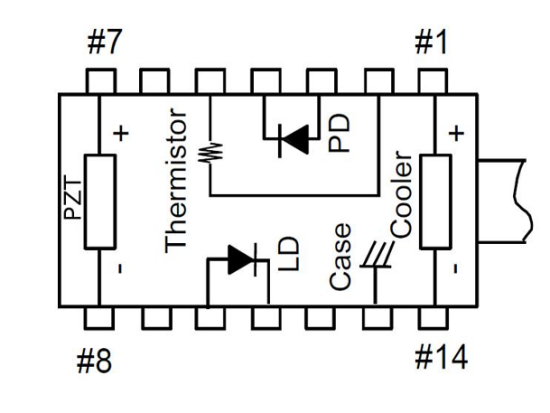

    Pin definition


    None PZT Bulit inside

    NO

    Parameter

    NO

    Parameter

    1

    Cooler anode+

    8

    PZT tuning -

    2

    Thermistor

    9

    NC

    3

    PD anode-

    10

    LD anode+

    4

    PD cathode+

    11

    LD cathode-

    5

    Thermistor

    12

    NC

    6

    NC

    13

    Case

    7

    PZT tuning +

    14

    Cooler cathode-






    Fiber Pigtail Specifications

    Parameters

    Description

    Fiber Type

    SM fiber

    Jacket Type

    900μm loose tube

    Pigtail Length

    1.0±0.1m

    Connector Type

    FC/APC

    PM fiber Connector Orientation

    Please see the right figure




    Note: The PM fiber and the connector key are aligned to the slow axis,fast axis is blocked


    Optional Configurations

    --

    Downloads

    660nm 20mW SM FBG stabilized Tunable laser diode.pdf
