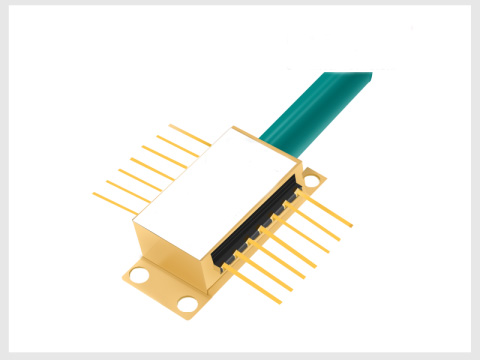

    • 770nm 10mW PM FBG stabilized Tunable laser diode

    This series Fiber Bragg Grating laser is single frequency laser diode module designed for optical measurement and communication. The laser is packaged in 14-pin standard butterfly package with monitor photodiode and thermo-electric cooler (TEC).The Single-Frequency Continuous Tuning Range: > 1.2 nm by adjust the Mini PZT Built in the laser diode.

    Product features：Optical output: 10mW；Narrow linewidth (Δν < 1MHz)；Wavelength: 770nm @ 25℃；SMor PMFiber (ø0.9mm)；FC-APC connector；14-pin butterfly package；Internal monitor PD and TEC；Low power consumption

    Part Number：MP-NL-0770-A-A81-PA-PZT

    Application area：Laser interference experiment | Drop-side of DWDM long-haul transport equipment | Optical Test and Instrumentation | Microwave Photonics | CATV networks | Sensors

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Output Power Fiber Type

    770nm 10mW PM

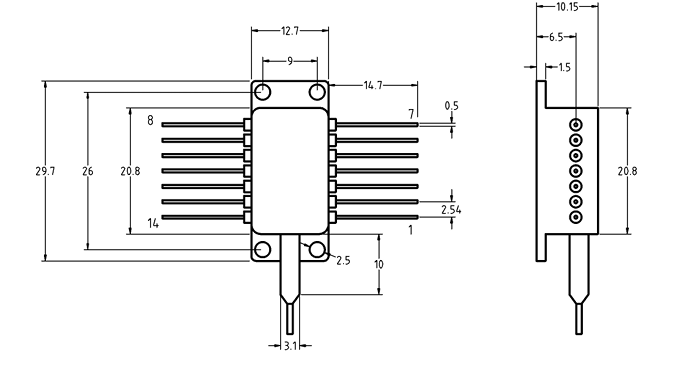

  • Dimension Drawing
    • General Parameters

    Optical Characteristics (at 25 °C laser temperature)

    Parameter

    Symbol

    Condition

    Min.

    Typical

    Max.

    Unit

    Center Wavelength

    λc

    TL=15～35℃ CW

    769

    770

    771

    nm

    Peak Optical Output Power

    PO

    -

    10

    15

    25

    mW

    Spectral linewidth

    LW

    -

    -

    100


    KHz

    Side-mode Suppression Ratio

    SMSR

    CW

    40

    45

    -

    dB

    Optical Isolation

    -

    -10 < TC < +70 ºC

    30

    -

    -

    dB

    Polarization Extinction Ratio

    ER

    -

    20

    -

    -

    dB

    Relative Intensity Noise

    RIN

    CW, output power 10mW

    -

    -

    -145

    dB/HZ

    Wavelength drift with case   (-10 to 70 ºC) temperature

    △λ

    TL=15～35℃

    -

    -

    ±30

    pm



    Electrical Characteristics (at 25 °C laser temperature)

    Parameter

    Symbol

    Condition

    Min.

    Typical

    Max.

    Unit

    Threshold Current

    ITH

    -

    -

    45

    65

    mA

    Slope Efficiency

    ƞ

    CW , 10 mW

    0.064

    0.1

    -

    mW/mA

    Operating current

    Iop

    CW

    -

    150

    200

    mA

    TEC set temperature

    Ts

    -

    15

    -

    35

    ℃

    Laser Forward Voltage

    VF

    CW output power 5 mW

    -

    1.3

    1.8

    V

    Monitor Dark Current

    ID

    -

    -

    -

    0.1

    μA

    Cooler Voltage

    Vc

    IF=EOL, TC=70°C



    2.7

    V

    Cooler Current

    Ic

    IF=EOL, TC=70°C

    -

    -

    1.4

    A

    Thermistor Resistance

    RTH

    TL =   25 °C

    9.5

    10

    10.5

    KΩ

    TEC Current

    ITEC

    TL = 25 °C, TC = 70 °C

    -

    -

    1.8

    A

    TEC Voltage

    VTEC

    TL = 25 °C, TC = 70 °C

    -

    -

    3.5

    V

    Tuning Range

    Δf


    1


    1.5

    nm

    PZT Tuning Voltage

    VT


    0


    150

    V

    Mode Hop Free Range

    ΔI



    3


    mA

    Extinction   Ratio

    XP

    CW 10 mW

    17



    dB

    TEC capacity

    ΔT

    Tc = 70℃

    -

    -

    50

    °C

    Thermistor temperature

    -

    -

    -

    -

    100

    °C

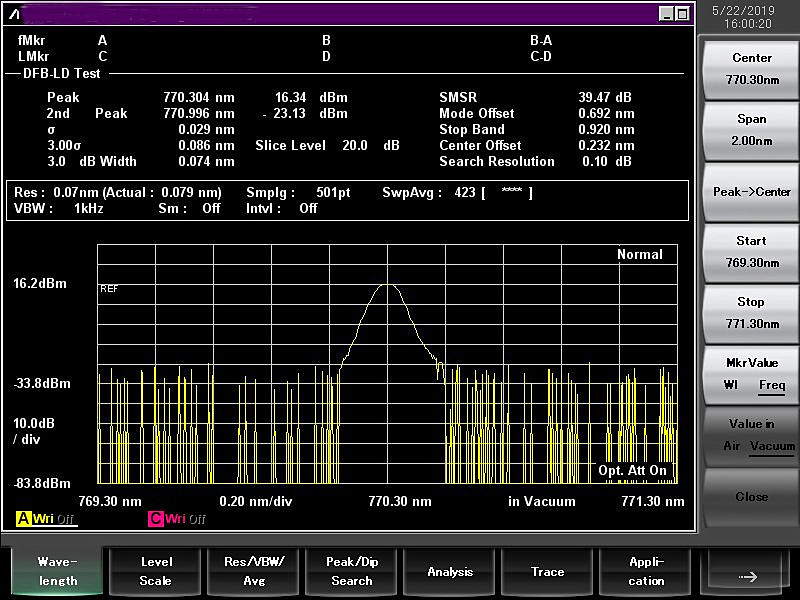

    Spectrum

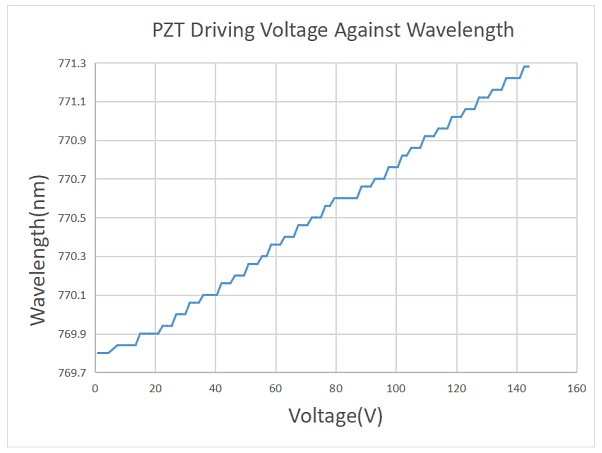

    Voltage Vs Wavelength(PZT Version)

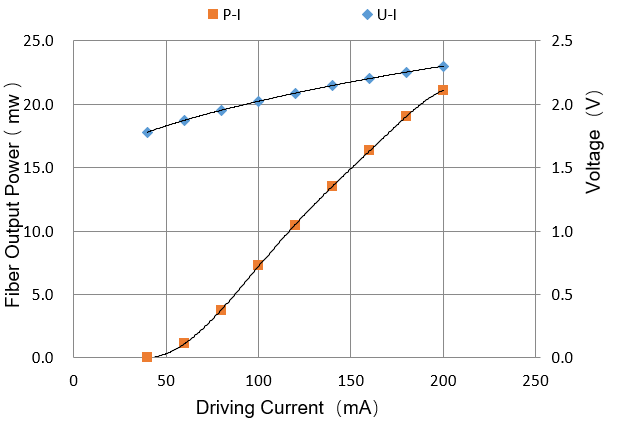

    L-I Curve

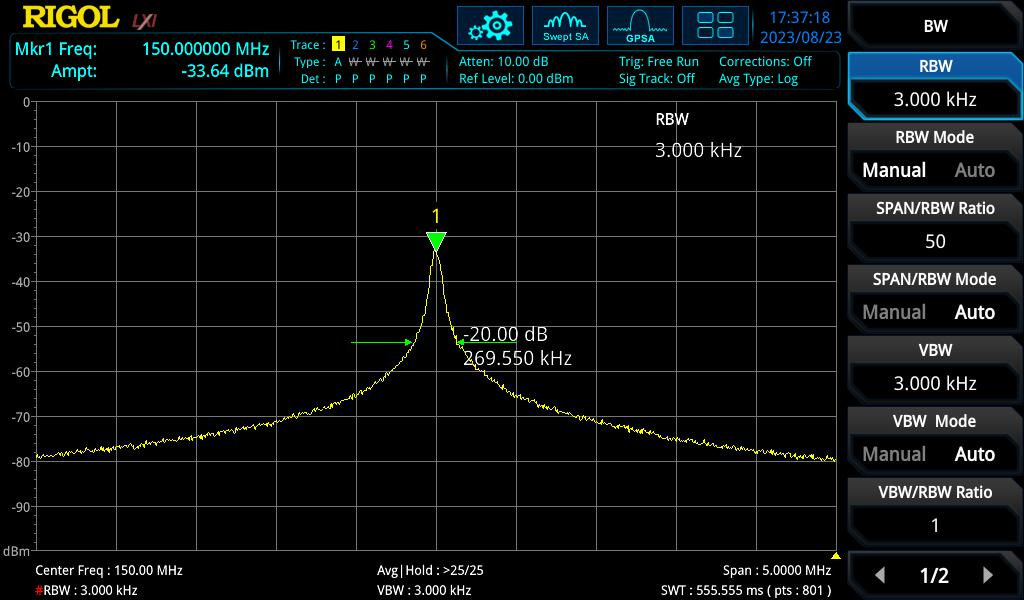

    Linewidth Testing Result

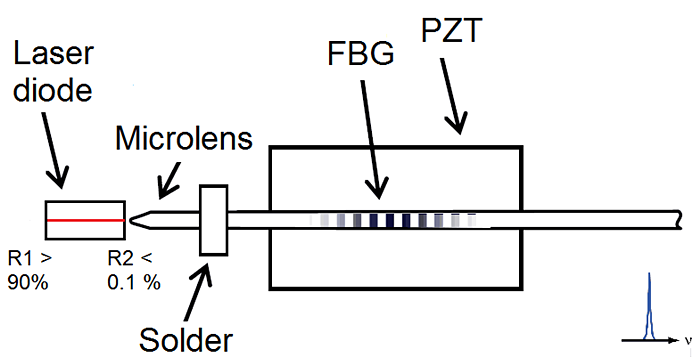

    Working Structure




    Beam Quality(M2,2D/3D Beam）





    Absolute maximum ratings:

    Parameter

    Unit

    Min

    Typ

    Max

    Case Temperature

    °C

    -40

    25

    70

    Chip Temperature

    °C

    +10

    25

    40

    Operating Current

    mA

    0

    150

    170

    Forward Voltage

    V

    0.8

    1.2

    1.8

    TEC Current

    A

    -

    1.2

    1.4

    Reverse Voltage(LD)

    V

    -

    -

    1.8

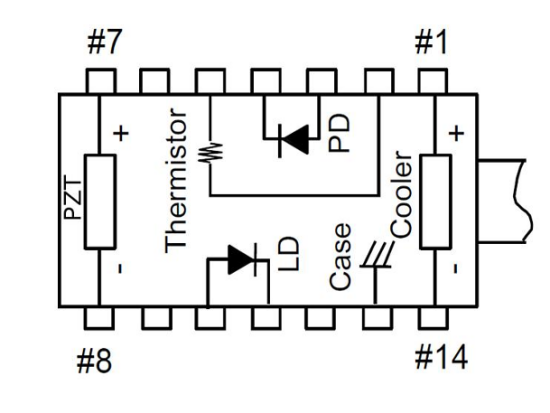

    Pin definition


    None PZT Bulit inside

    NO

    Parameter

    NO

    Parameter

    1

    Cooler anode+

    8

    PZT tuning -

    2

    Thermistor

    9

    NC

    3

    PD anode-

    10

    LD anode+

    4

    PD cathode+

    11

    LD cathode-

    5

    Thermistor

    12

    NC

    6

    NC

    13

    Case

    7

    PZT tuning +

    14

    Cooler cathode-




    Fiber Pigtail Specifications

    Parameters

    Description

    Fiber Type

    PM fiber

    Jacket Type

    900μm loose tube

    Pigtail Length

    1.0±0.1m

    Connector Type

    FC/APC

    PM fiber Connector Orientation

    Please see the right figure




    Note: The PM fiber and the connector key are aligned to the slow axis,fast axis is blocked






    Optional Configurations

    --

    Downloads

    770nm 10mW PM FBG stabilized Tunable laser diode.pdf
