Laser Wavelength

224.3 nm

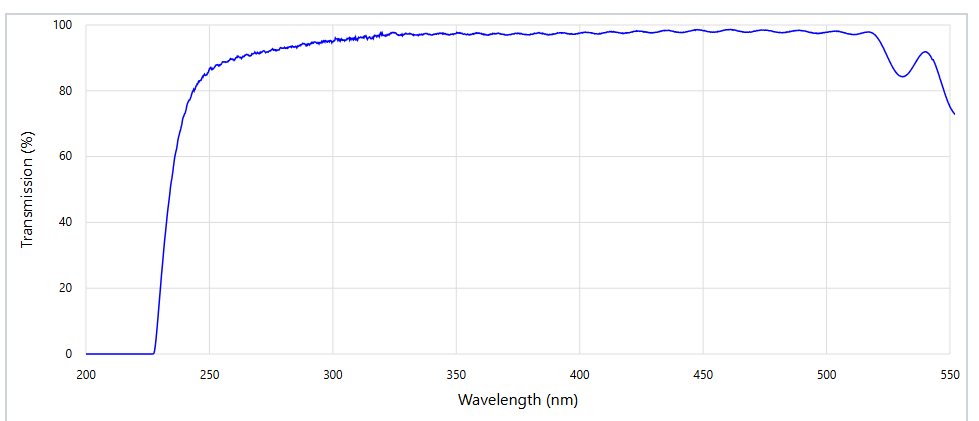

Transmission Band

T_avg > 90%  235 -505.9 nm

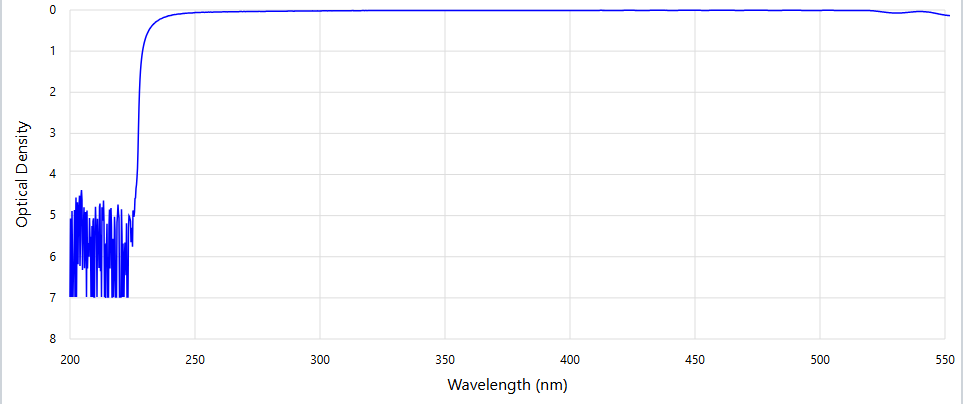

Blocking Band

OD > 6  224.3 nm

Blocking Band

OD_avg > 6  202 – 224.3 nm (typical)

Edge Steepness

0.033

Edge Steepness

1424.2 cm⁻¹

Edge Steepness

Ultrasteep (for Raman)

Edge Steepness

7.4

Edge Wavelength

235.6 nm

Transition Width

10.1 nm

Transition Width

1920 cm^-¹

Angle of Incidence

0 ± 2°

Cone Half-angle

5°

Clear Aperture

≥ 22 mm

Transverse Dimensions, Diameter

25 mm

Filter Thickness, Mounted

3.5 mm

Filter Thickness Tolerance, Mounted

± 0.1 mm

Filter Thickness, Unmounted

2.0 mm

Filter Thickness Tolerance, Unmounted

± 0.1 mm

Surface Quality (Scratch-Dig)

60-40

Filter Effective Index

3.2

Optical Damage Rating

0.5 J/cm2 @ 266 nm (10 ns pulse width),1 J/ @ 53 cm2 2 nm (10 ns pulse width)

Orientation

Arrow on ring is preferred direction of propagation of light

Substrate Type

Fused Silica
