    • 700 nm Bandpass Filter

    The 700 nm high-performance bandpass filter is primarily designed for efficient selective transmission of the target wavelength band while providing deep blocking of out-of-band spectra on both sides of the transmission band. The filter features high transmittance, narrowband spectral selectivity, high out-of-band cut-off depth, and excellent optical stability, effectively reducing the influence of background light and stray light on detected signals. Its circular mounted configuration facilitates integration into imaging, detection, and spectroscopy systems. With optical durability verified through prolonged high-power xenon arc lamp exposure, it is suitable for applications such as fluorescence detection, spectral imaging, machine vision, biomedical optics, and research analysis instruments.

    Product features：700 nm narrowband selection；High transmission performance；Up to OD8 blocking design；Wide blocking range；Narrowband spectral performance；Long lifetime and high environmental stability

    Part Number：MP-BPF-700

    Application area：Fluorescence microscopy | Biomedical detection | Laser optical systems | Research and industrial inspection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    700 nm Tavg > 93% 693.5 – 706.5 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 93%  693.5 – 706.5 nm

    Blocking Band

    ODavg >5  300 -­ 676 nm

    Blocking Band

    ODavg > 6  490 -­ 545 nm

    Blocking Band

    ODavg > 8  545 -­ 656 nm

    Blocking Band

    OD > 3.5  680 nm

    Blocking Band

    ODavg > 5  726 ­- 1050 nm

    FWHM Bandwidth

    20.4nm

    Guaranteed Minimum Bandwidth

    13

    Angle of Incidence

    0 ± 5°

    Cone Half-angle

    7°

    Clear Aperture

    ≥21mm

    Transverse Dimensions, Diameter

    25 mm

    Filter Thickness, Mounted

    5.0 mm

    Filter Thickness Tolerance, Mounted

    ±0.1mm

    Filter Thickness, Unmounted

    2.0 mm

    Filter Thickness Tolerance, Unmounted

    ±0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    2.04

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

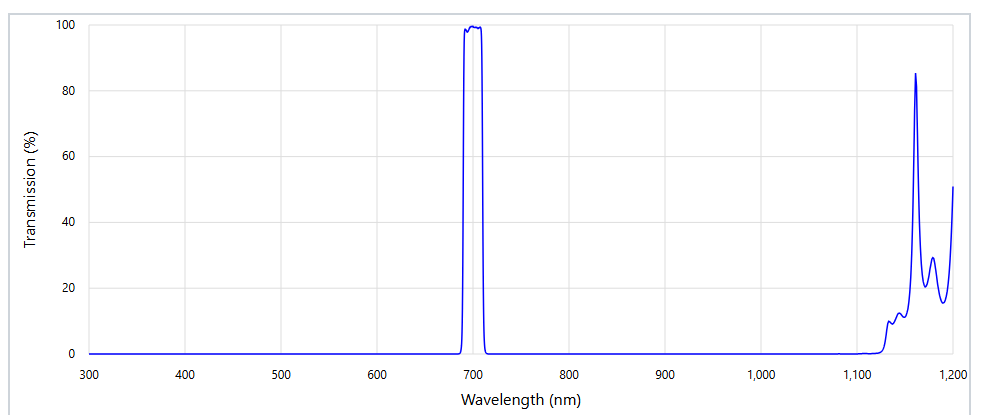

    Transmittance-Wavelength Spectrum

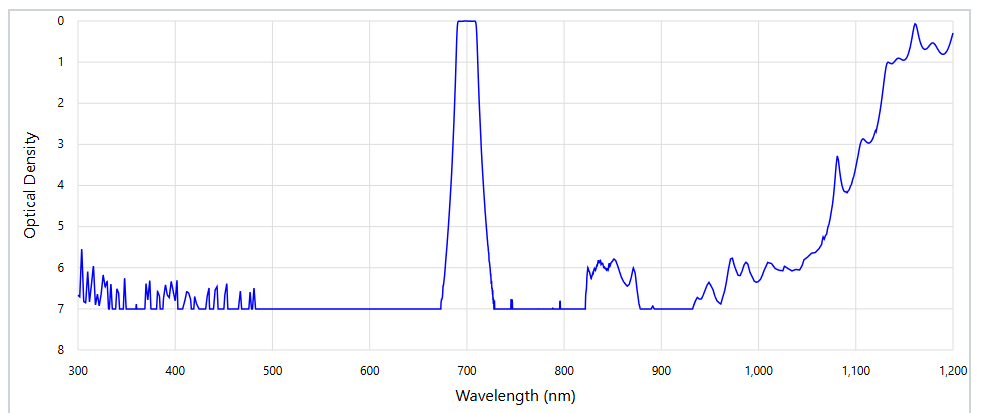

    Optical Density Spectrum
