    • 460 nm Narrow Bandpass Optical Filter

    The 460 nm narrow bandpass optical filter is manufactured using a high-performance hard dielectric multilayer coating process. It is specifically designed for blue-band excitation applications, including fluorescence microscopy, flow cytometry, laser detection, biomedical instrumentation, spectral analysis, and precision optical systems. The filter offers high transmittance in the 453-467 nm band while providing efficient rejection outside the passband. It effectively suppresses background stray light, improves system signal-to-noise ratio and detection accuracy, and meets the demanding performance requirements of research and industrial applications.

    Product features：Center wavelength 460 nm；Average passband transmittance >90%；24.4 nm full width at half maximum (FWHM)；Maximum out‑of‑band blocking up to OD5；Hard dielectric coating with excellent environmental durability；High stability and long service life

    Part Number：MP-NBP-460

    Application area：Fluorescence microscopes | Confocal microscopes | Photoelectric sensors | Spectral analysis instruments | Research and laboratory equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    460 nm Tavg > 90% 453–467 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 90%  453–467 nm

    Blocking Band

    ODavg > 5  360–435 nm

    Blocking Band

    ODavg > 3.5  438.5 nm

    Blocking Band

    ODavg > 3.5  481 nm

    FWHM Bandwidth

    24.4nm

    Guaranteed Minimum Bandwidth

    14

    Angle of Incidence

    0 ± 5 °

    Cone Half-angle

    7°

    Clear Aperture

    ≥ 21 mm

    Transverse Dimensions, Diameter

    25mm

    Filter Thickness, Mounted

    5.0mm

    Filter Thickness Tolerance, Mounted

    ± 0.1mm

    Filter Thickness, Unmounted

    3.0mm

    Filter Thickness Tolerance, Unmounted

    ± 0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    2.0

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

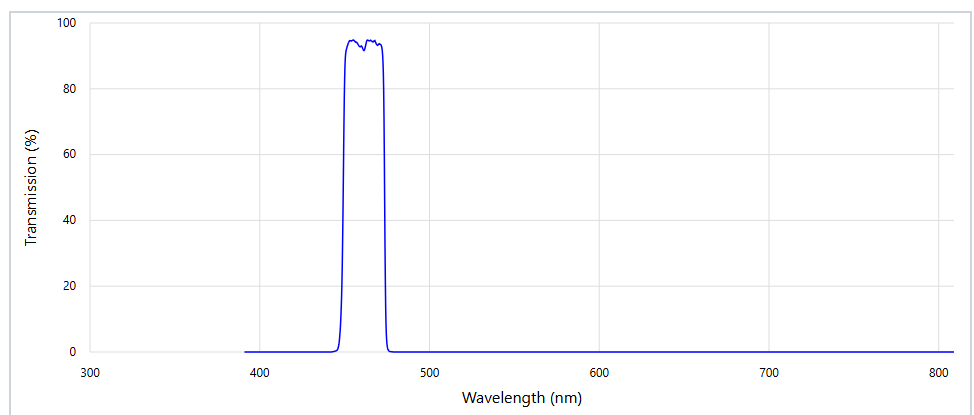

    Transmittance-Wavelength Spectrum

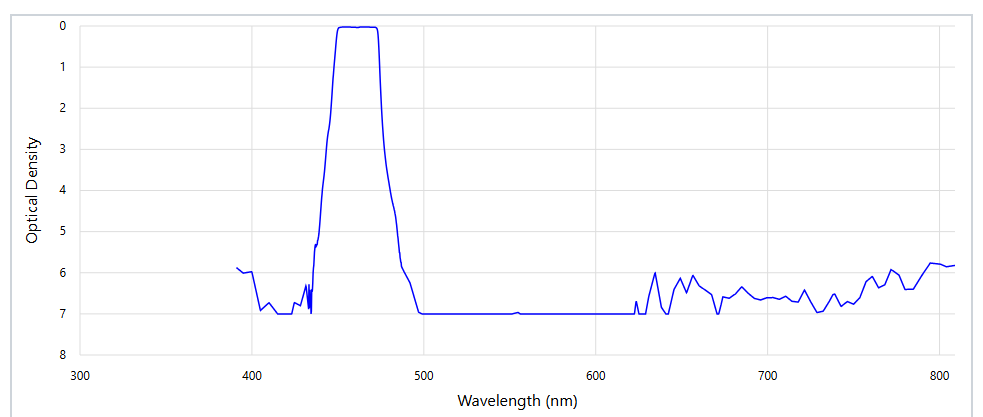

    Optical Density Spectrum
