    • 704 nm Bandpass Filter

    The MP-BPF-704 is a high-performance optical bandpass filter designed for optical systems that require precise spectral selection and efficient stray light suppression. Employing precision thin-film filter technology, it offers excellent transmission in the target band while providing deep blocking of out-of-band spectra. It features good wide-angle incidence adaptability, maintaining stable spectral performance under different incident angles. With a compact structure and steep spectral transition edges, the filter is easy to integrate into various precision optical instruments and is suitable for applications such as spectral imaging, machine vision, industrial inspection, optical sensing, spectral analysis, and research instrumentation.

    Product features：High transmission performance； Wide angle adaptability；High transmission at large angles；Wide blocking range；Stable optical parameters

    Part Number：MP-BPF-704

    Application area：Spectral imaging systems | Industrial optical inspection | Optical sensors | Fluorescence detection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    704 nm Tavg > 90%

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 90%

    Transmission Band, @ 60 deg

    Tavg > 85%

    Blocking Band

    ODavg > 6  275 – 1100 nm

    Blocking Band, @ 60 deg

    ODavg > 5  275 – 925

    FWHM Bandwidth

    20nm

    Guaranteed Minimum Bandwidth

    13

    Angle of Incidence

    0 – 60°

    Cone Half-angle

    0°

    Cutoff Transition Width

    3% (from transmission to blocking)

    Cutoff Transition Width, @ 60 deg

    2.5% (from transmission to blocking)

    Cuton Transition Width

    2% (from blocking to transmission)

    Cuton Transition Width, @ 60 deg

    3% (from blocking to transmission)

    Clear Aperture

    ≥ 80% (elliptical)

    Transverse Dimensions, LxW

    25.2 mm × 35.6 mm

    Filter Thickness, Unmounted

    2.0 mm

    Filter Thickness Tolerance, Unmounted

    ±0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    1.82

    Optical Damage Rating

    Not tested

    Orientation

    Reflective surface marked with part-Orient in incoming light



    Spectral Characteristic Curves

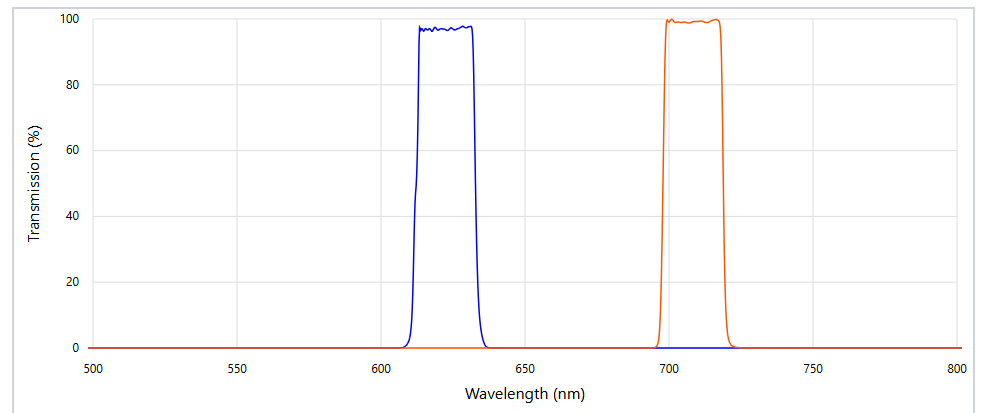

    Transmittance-Wavelength Spectrum

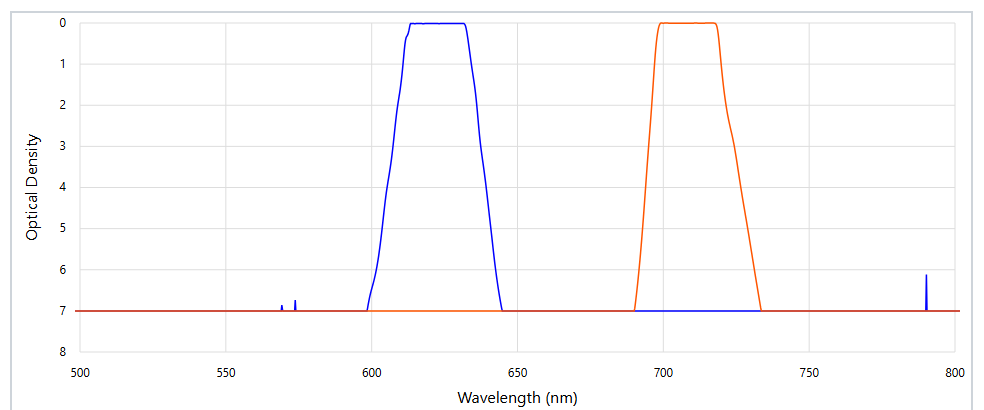

    Optical Density Spectrum
