Home/ Products/ Optical Accessories/ Optical Components/ Filter/ UV filter/ 360 nm Bandpass Filter

    • 360 nm Bandpass Filter

    The 360 nm Bandpass Filter is a high-performance narrowband filter designed for ultraviolet fluorescence detection, life sciences, microscopy imaging, and spectral analysis. Manufactured with precision multi-layer dielectric coatings, it provides high transmission around the 360 nm centre wavelength while offering deep blocking of out-of-band light, effectively suppressing stray light and improving system signal-to-noise ratio and detection accuracy. Its excellent spectral performance, stable environmental reliability, and precise fabrication quality make it suitable for advanced optical systems in research, industrial inspection, and medical devices.

    Product features：Centre wavelength at 360 nm for UV‑band applications；Average transmission > 90 % in the 348–371 nm band for efficient light utilisation；FWHM of 28 nm ensuring good wavelength selectivity；Guaranteed minimum bandwidth of 23 nm for high product consistency；Designed for 0°angle of incidence, compatible with standard optical paths；High‑durability dielectric coatings for long‑term stable performance

    Part Number：MP-BPF-360

    Application area：UV fluorescence microscopy | Fluorescence imaging systems | Biomedical detection | Raman spectrometers | Research and laboratory equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    360 nm Tavg > 90% 348 – 371 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 90%  348 – 371 nm

    Blocking Band

    ODavg > 3  300 – 340 nm

    Blocking Band

    ODavg > 5  380 – 850 nm

    FWHM Bandwidth

    28nm

    Guaranteed Minimum Bandwidth

    23

    Angle of Incidence

    0 ± 5 °

    Cone Half-angle

    7°

    Clear Aperture

    ≥ 22 mm

    Transverse Dimensions, Diameter

    25mm

    Filter Thickness, Mounted

    3.5mm

    Filter Thickness Tolerance, Mounted

    ± 0.1mm

    Filter Thickness, Unmounted

    2.0mm

    Filter Thickness Tolerance, Unmounted

    ± 0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    2.0

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

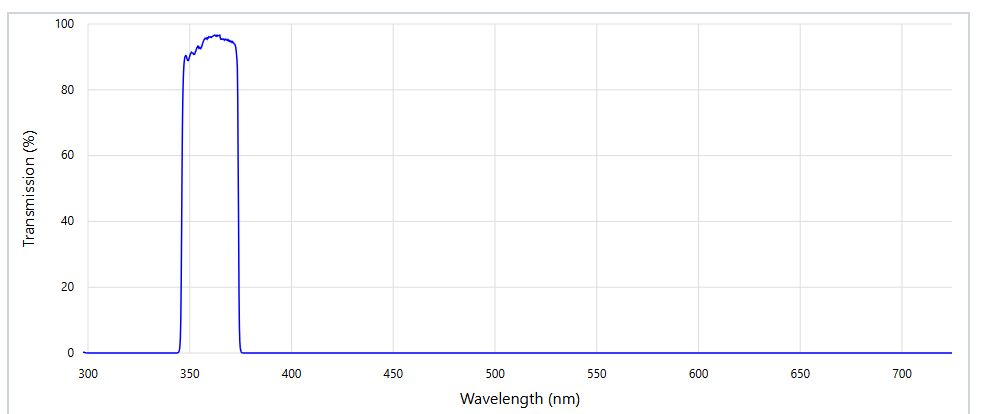

    Transmittance-Wavelength Spectrum

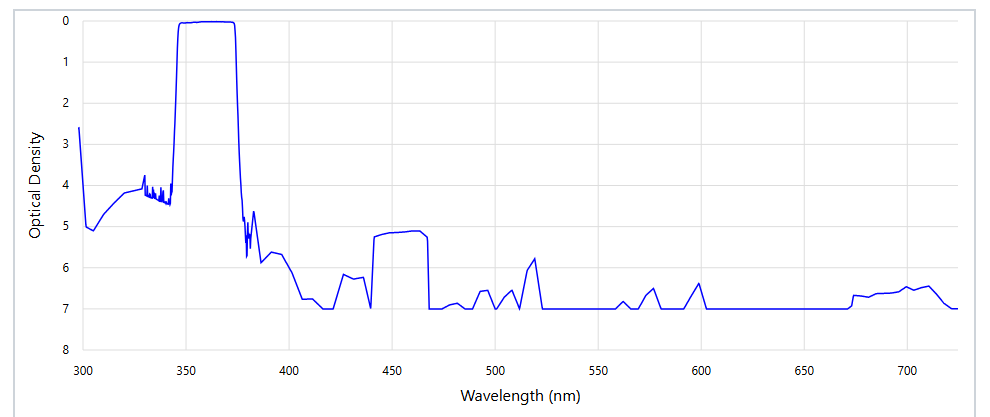

    Optical Density Spectrum
