    • 567 nm Narrow Bandpass Optical Filter

    The 567 nm narrow bandpass optical filter is manufactured using a high-performance hard dielectric multilayer coating process. It is specifically designed for yellow-green band excitation and detection applications, and is widely used in fluorescence microscopy, confocal microscopy, flow cytometry, biomedical detection, Raman spectroscopy, and precision optical instrumentation. The filter offers exceptionally high transmittance in the 559.5-574.5 nm band while providing broad-spectrum, high-rejection performance outside the passband. It effectively suppresses excitation light leakage and background stray light, improves detection sensitivity and imaging contrast, and meets the demanding requirements of research and industrial applications.

    Product features：Center wavelength 567 nm；Average passband transmittance >95%；22.7 nm full width at half maximum (FWHM)；Multi‑band high‑blocking design, maximum blocking up to OD5；Hard dielectric coating with excellent environmental durability；High stability and long service life

    Part Number：MP-NBP-567

    Application area：Fluorescence microscopes | Confocal microscopes | Photoelectric sensors | Spectral analysis instruments | Research and laboratory equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    567 nm Tavg > 95% 559.5–574.5 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 95%  559.5–574.5 nm

    Blocking Band

    OD > 5  488 nm

    Blocking Band

    ODabs > 2  500–550 nm

    Blocking Band

    OD> 5  532 nm

    Blocking Band

    ODabs > 2  585–630 nm

    Blocking Band

    ODabs > 5  632–642 nm

    Blocking Band

    ODabs > 4  640–700 nm

    FWHM Bandwidth

    22.7nm

    Guaranteed Minimum Bandwidth

    15

    Angle of Incidence

    0 ± 5 °

    Cone Half-angle

    7°

    Clear Aperture

    ≥ 22 mm

    Transverse Dimensions, Diameter

    25mm

    Filter Thickness, Mounted

    3.5mm

    Filter Thickness Tolerance, Mounted

    ± 0.1mm

    Filter Thickness, Unmounted

    2.0mm

    Filter Thickness Tolerance, Unmounted

    ± 0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    1.84

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

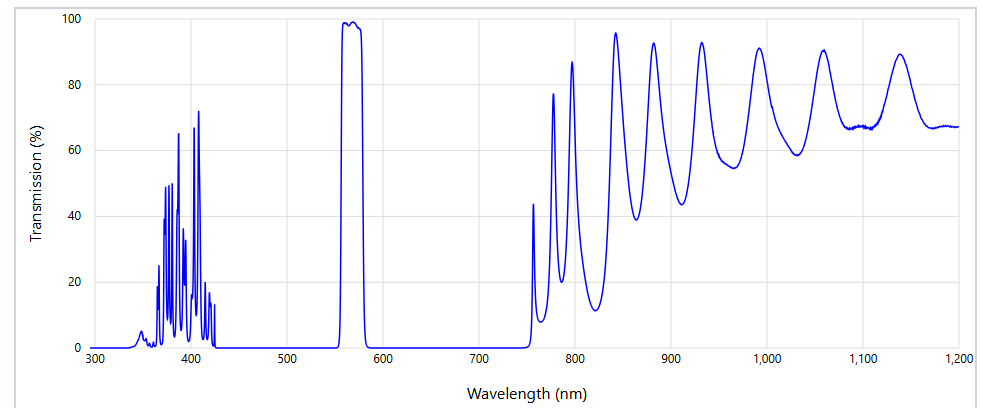

    Transmittance-Wavelength Spectrum

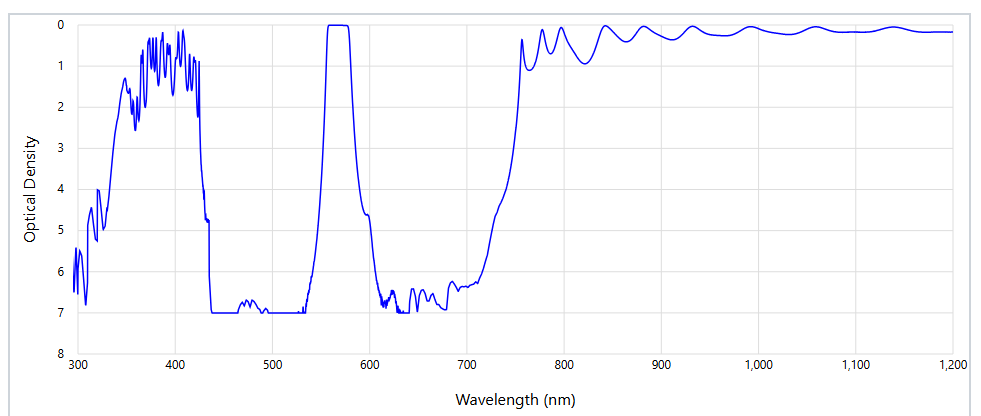

    Optical Density Spectrum



    Optional Configurations

    --
