Laser Wavelength

407 nm

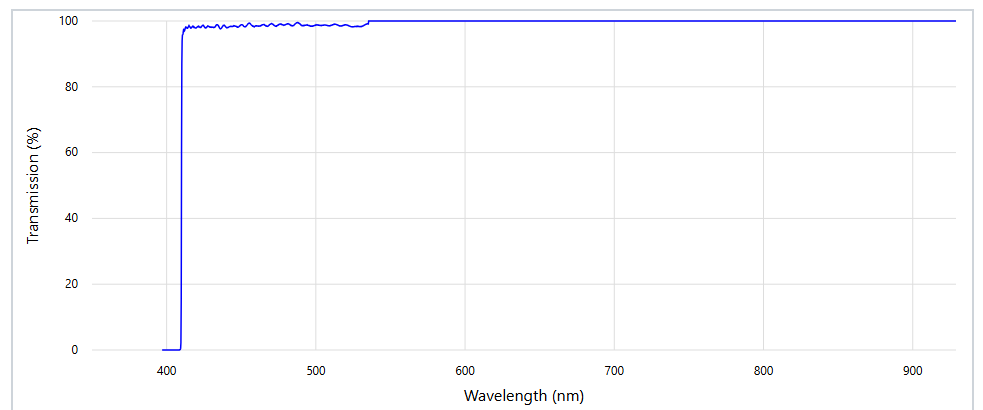

Transmission Band

T_avg > 93 %  412.3–918 nm

Blocking Band

OD > 6  407 nm

Blocking Band

OD_avg > 6  330.1 – 407 nm (typical)

Edge Steepness

0.5 %

Edge Steepness

122.2 cm^-1

Edge Steepness

Ultrasteep (for Raman)

Edge Steepness

2.0

Edge Wavelength

410 nm

Transition Width

4.1 nm

Transition Width

243 cm^-1

Angle of Incidence

0 ± 2°

Cone Half-angle

5°

Clear Aperture

22 mm

Transverse Dimensions, Diameter

25 mm

Filter Thickness, Mounted

3.5 mm

Filter Thickness Tolerance, Mounted

± 0.1 mm

Filter Thickness, Unmounted

2.0 mm

Filter Thickness Tolerance, Unmounted

± 0.1 mm

Surface Quality (Scratch-Dig)

60-40

Filter Effective Index

2.2

Optical Damage Rating

0.5 J/cm2 @ 266 nm (10 ns pulse width),1 J/ @ 53 cm2 2 nm (10 ns pulse width)

Orientation

Arrow on ring is preferred direction of propagation of light

Substrate Type

Fused Silica
