    • 786 nm Narrow Bandpass Optical Filter

    The 786 nm narrow bandpass optical filter is a high-performance narrowband interference filter with a center wavelength of 786 nm, featuring high transmittance, broad out-of-band blocking, and excellent spectral selectivity. Manufactured using high-precision multi-layer dielectric coating technology, it effectively suppresses out-of-band stray light and improves the signal-to-noise ratio in the target wavelength band. It is widely used in Raman spectroscopy, fluorescence detection, biomedical imaging, laser systems, spectral analysis, and precision optical instruments.

    Product features：Center wavelength: 786 nm；Average passband transmittance: >93%；Full width at half maximum (FWHM): 29.9 nm；Efficient out‑of‑band blocking (OD5 and above)；Hard dielectric coating with excellent environmental durability；High stability and long service life

    Part Number：MP‑NBP‑786

    Application area：Raman spectroscopy systems | Fluorescence detection systems | Laser systems | Spectral analysis instruments | Scientific research and experimental equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    786 nm Tavg > 93% 775–797 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 93%  775–797 nm

    Blocking Band

    ODavg > 5  537–756 nm

    Blocking Band

    ODavg >5  815–1044nm

    FWHM Bandwidth

    29.9nm

    Guaranteed Minimum Bandwidth

    22 nm

    Angle of Incidence

    0 ± 5°

    Cone Half-angle

    7°

    Clear Aperture

    ≥22mm

    Transverse Dimensions, Diameter

    25 mm

    Filter Thickness, Mounted

    3.5 mm

    Filter Thickness Tolerance, Mounted

    ±0.1mm

    Filter Thickness, Unmounted

    2.0 mm

    Filter Thickness Tolerance, Unmounted

    ±0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    1.84

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

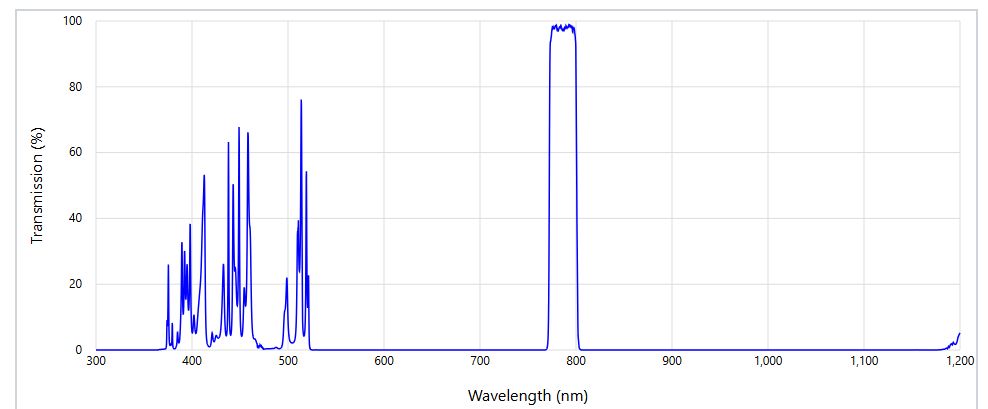

    Transmittance-Wavelength Spectrum

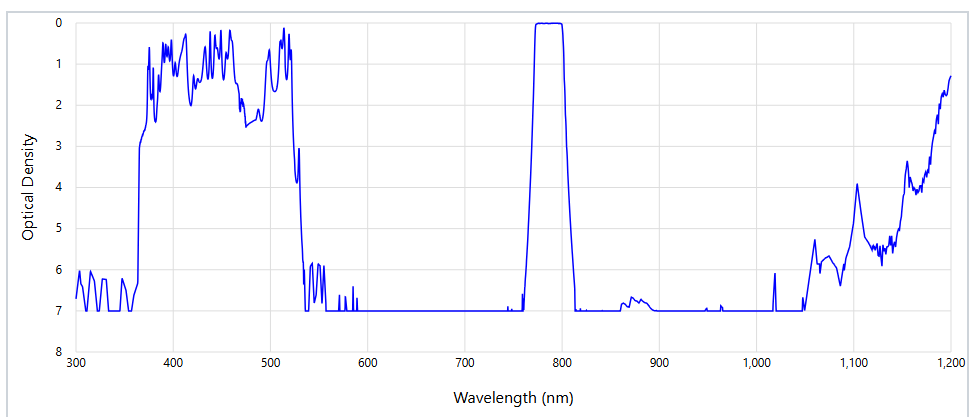

    Optical Density Spectrum



    Optional Configurations

    --

    Downloads

    No resources available
