Home/ Products/ Optical Accessories/ Optical Components/ Filter/ UV filter/ 280 nm Bandpass Filter

    • 280 nm Bandpass Filter

    The MP-BPF-280 is a high-performance bandpass filter designed for ultraviolet (UV) spectral applications. It features a center wavelength of 280 nm and a full width at half maximum (FWHM) of 22 nm. Manufactured with advanced hard dielectric coatings, the filter provides excellent transmission in the target band while offering deep blocking of visible light and out-of-band UV wavelengths, effectively improving system signal-to-noise ratio. This filter is suitable for UV fluorescence detection, UV imaging, life science analysis, environmental monitoring, UV laser systems, and other applications, making it a critical optical component in research and industrial instruments.

    Product features：Center wavelength 280 nm；FWHM bandwidth 22 nm；Guaranteed minimum bandwidth 20 nm；Average transmission > 65% in the passband；Hard dielectric coating with excellent environmental durability；High stability and long service life

    Part Number：MP-BPF-280

    Application area：UV fluorescence analysis | Protein detection | UV imaging systems | Environmental monitoring instruments | Research laboratory

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    280 nm Tavg > 65% 270 – 290 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 65%  270 – 290 nm

    Blocking Band

    ODavg > 5  200 – 260 nm

    Blocking Band

    ODavg > 5  310 – 380 nm

    Blocking Band

    ODavg > 4  380 – 700 nm

    FWHM Bandwidth

    22nm

    Guaranteed Minimum Bandwidth

    20

    Angle of Incidence

    0 ± 5 °

    Cone Half-angle

    7°

    Clear Aperture

    ≥ 21 mm

    Transverse Dimensions, Diameter

    25mm

    Filter Thickness, Mounted

    5.0mm

    Filter Thickness Tolerance, Mounted

    ± 0.1mm

    Filter Thickness, Unmounted

    2.0mm

    Filter Thickness Tolerance, Unmounted

    ± 0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    2.12

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Arrow on ring is preferred direction of propagation of light



    l Spectral Characteristic Curves

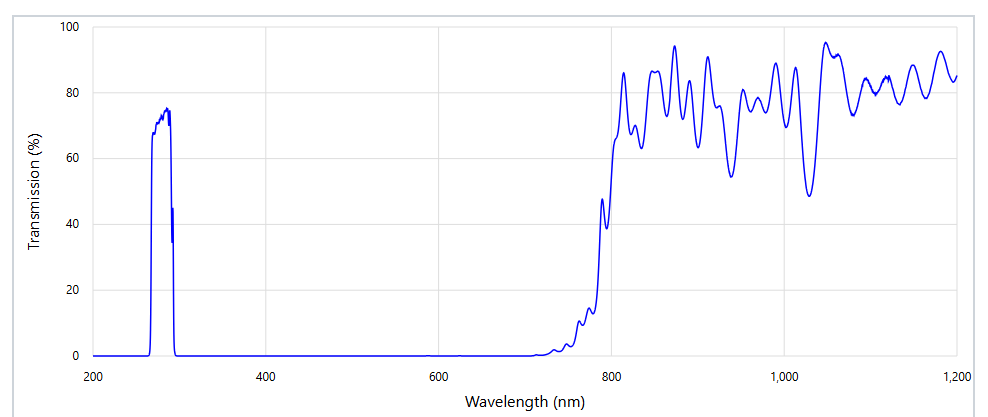

    Transmittance-Wavelength Spectrum

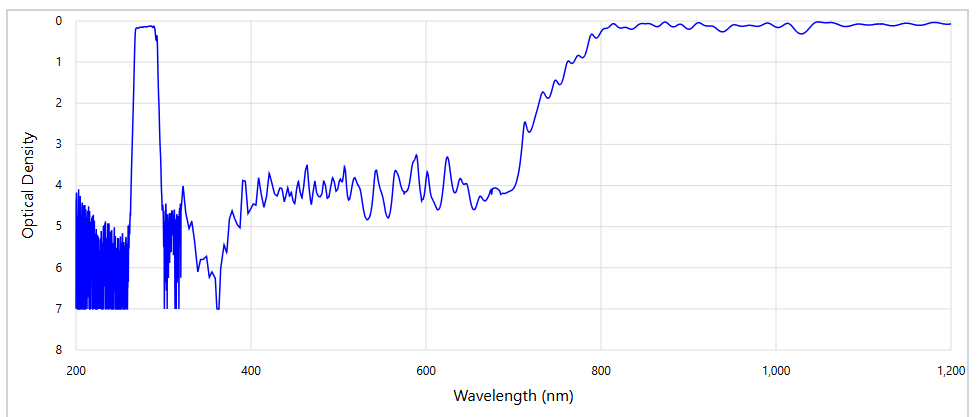

    Optical Density Spectrum
