395 nm Narrow Bandpass Optical Filter

395 nm Narrow Bandpass Optical Filter

The MP-NBP-395 is a narrow bandpass filter with a centre operating wavelength of approximately 395 nm. It is designed to selectively transmit the 389.5-400.5 nm band while efficiently blocking most out-of-band light from 200 nm to 925 nm. The filter exhibits an average transmission greater than 85 % in the passband and provides deep blocking with an average optical density greater than 6 over the 417-670 nm range, effectively suppressing UV, visible, and near-infrared background signals to improve the signal-to-noise ratio in fluorescence detection, spectral analysis, and precision imaging systems. The product comes in a 25 mm round mounted format and is suitable for optical systems operating at near‑normal incidence.

Product features：Narrowband high transmission from 389.5 nm to 400.5 nm；Average passband transmittance: >85%；Full width at half maximum (FWHM): 16.1 nm；Guaranteed minimum bandwidth of 11 nm；Standard 25 mm round mounted size；Excellent long‑term light

Part Number：MP‑NBP‑395

Application area：UV fluorescence excitation | Fluorescence microscopy imaging | UV imaging systems | Semiconductor and materials inspection | Research and laboratory equipment

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Laser Wavelength Transmission Band

395 nm Tavg > 85% 389.5–400.5 nm

Dimension Drawing

General Parameters

Specification	Value
Transmission Band	T_avg > 85% 389.5–400.5 nm
Blocking Band	OD_avg > 4 200 – 275 nm
Blocking Band	OD_avg >5 275 – 381nm
Blocking Band	OD_avg >5 408.5 – 417 nm
Blocking Band	OD_avg >6 417 – 670 nm
Blocking Band	OD_avg >5 670 – 750 nm
Blocking Band	OD_avg >5 750 – 925 nm
FWHM Bandwidth	16.1nm
Guaranteed Minimum Bandwidth	11 nm
Angle of Incidence	0 ± 5°
Cone Half-angle	7°
Clear Aperture	≥22mm
Transverse Dimensions, Diameter	25 mm
Filter Thickness, Mounted	3.5 mm
Filter Thickness Tolerance, Mounted	±0.1mm
Filter Thickness, Unmounted	2.0 mm
Filter Thickness Tolerance, Unmounted	±0.1mm
Surface Quality (Scratch-Dig)	60-40
Filter Effective Index	1.91
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Orientation	Arrow on ring is preferred direction of propagation of light

Spectral Characteristic Curves

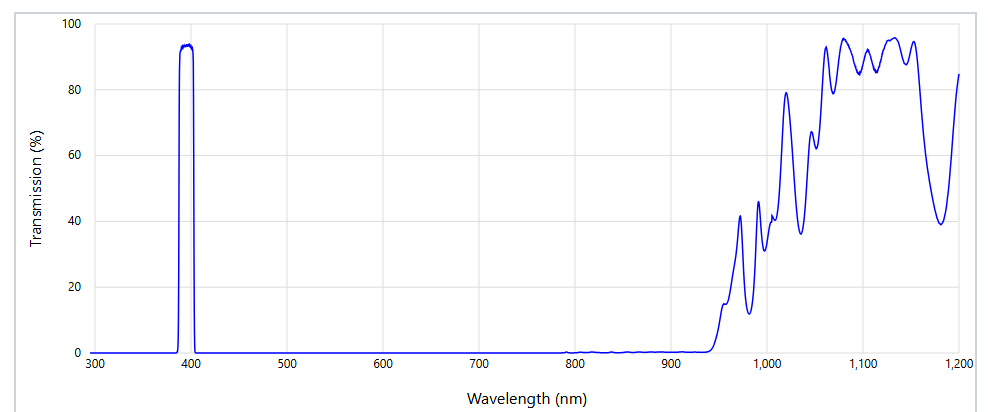

Transmittance-Wavelength Spectrum

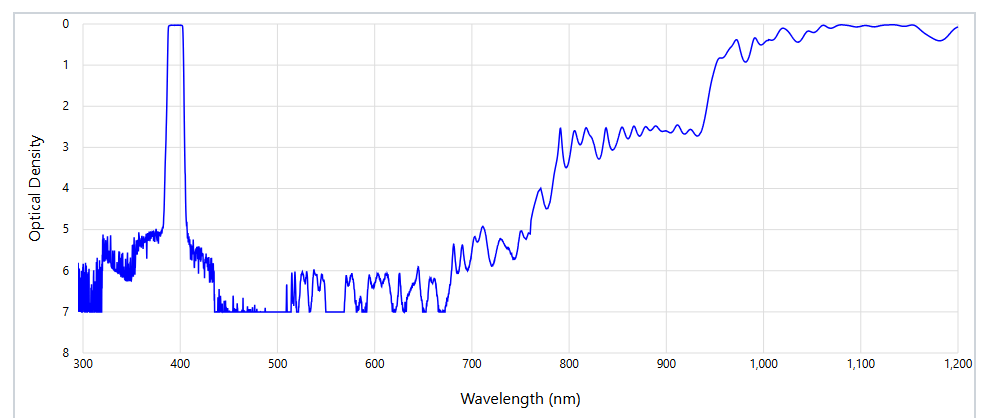

Optical Density Spectrum
