810 nm Narrow Bandpass Optical Filter

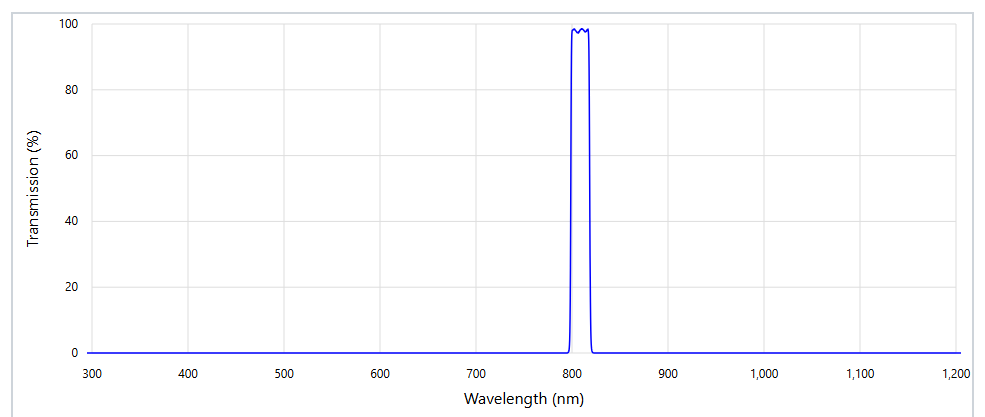

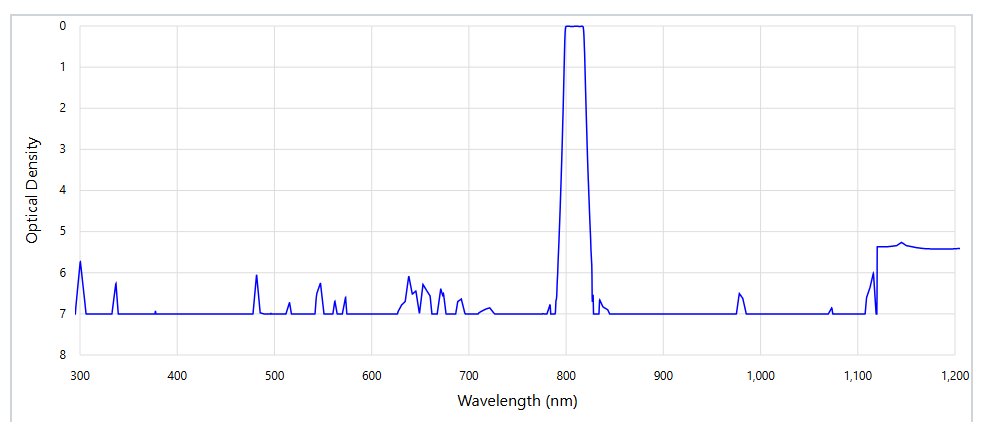

The MP-NBP-810 is a high-performance narrow bandpass filter with a center operating band near 810 nm. It is primarily used to selectively transmit near-infrared light around 810 nm from a broad spectral background, while providing deep blocking of ultraviolet, visible, and other near-infrared wavelengths.The filter offers an average transmittance Tavg > 90% over the 805-815 nm band, and provides high blocking with ODavg > 6 over the ranges 200-788 nm and 832-1200 nm, effectively suppressing out-of-band background light, stray light, and other unwanted wavelength signals. The MP-NBP-810 is suitable for near-infrared imaging, fluorescence detection, spectral analysis, laser detection, and other precision optical systems that require high signal-to-noise ratio spectral selection at 810 nm.
