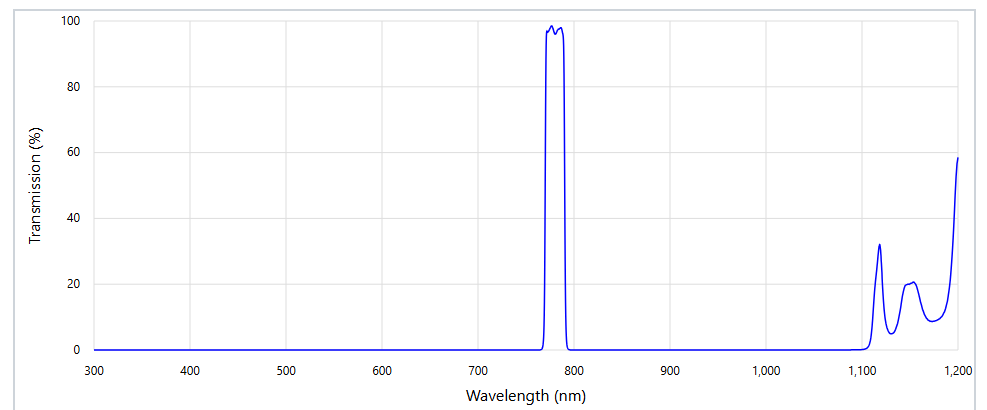

Transmission Band

T_avg > 93%  774 – 786 nm

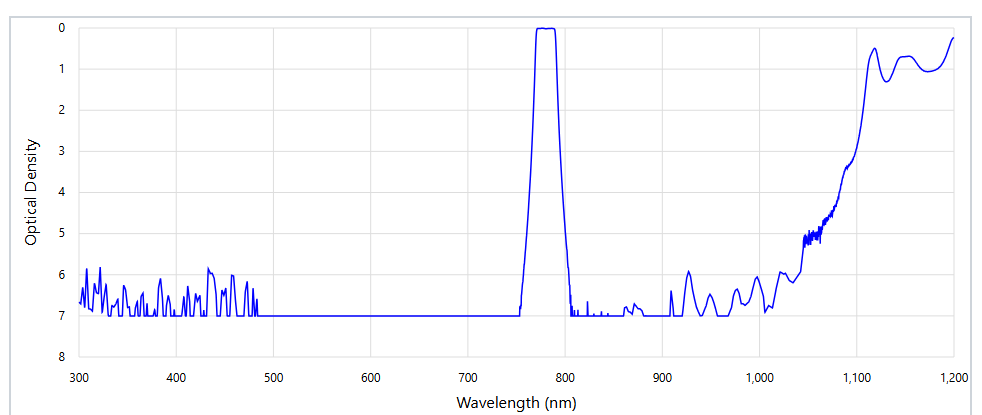

Blocking Band

OD_avg > 5  300 -­ 755 nm

Blocking Band

OD_avg > 6  490 -­ 615 nm

Blocking Band

OD_avg > 8  615 ­- 732 nm

Blocking Band

OD > 3.5  759 nm

Blocking Band

OD_avg > 5  807 ­- 1050 nm

FWHM Bandwidth

21nm

Guaranteed Minimum Bandwidth

12

Angle of Incidence

0 ± 5°

Cone Half-angle

7°

Clear Aperture

≥21mm

Transverse Dimensions, Diameter

25 mm

Filter Thickness, Mounted

5.0 mm

Filter Thickness Tolerance, Mounted

±0.1mm

Filter Thickness, Unmounted

2.0 mm

Filter Thickness Tolerance, Unmounted

±0.1mm

Surface Quality (Scratch-Dig)

60-40

Filter Effective Index

2.05

Optical Damage Rating

Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

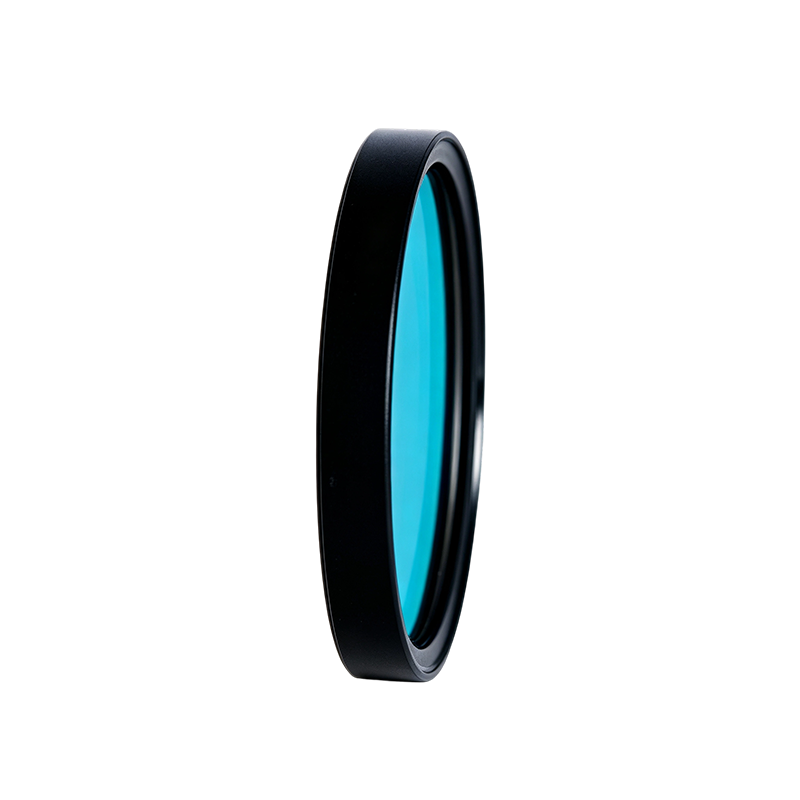

Orientation

Arrow on ring is preferred direction of propagation of light
