Laser Wavelength

785 nm

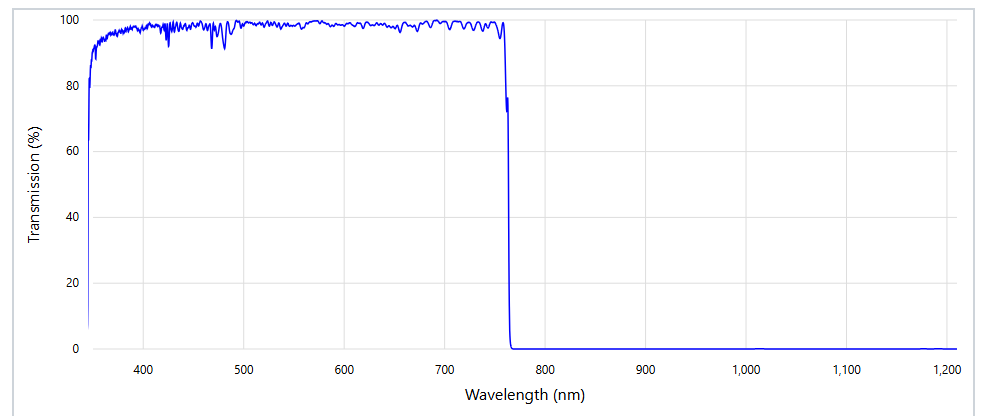

Transmission Band

T_avg > 80 %  350–400 nm

Transmission Band

T_avg > 93 %  400–758.2 nm

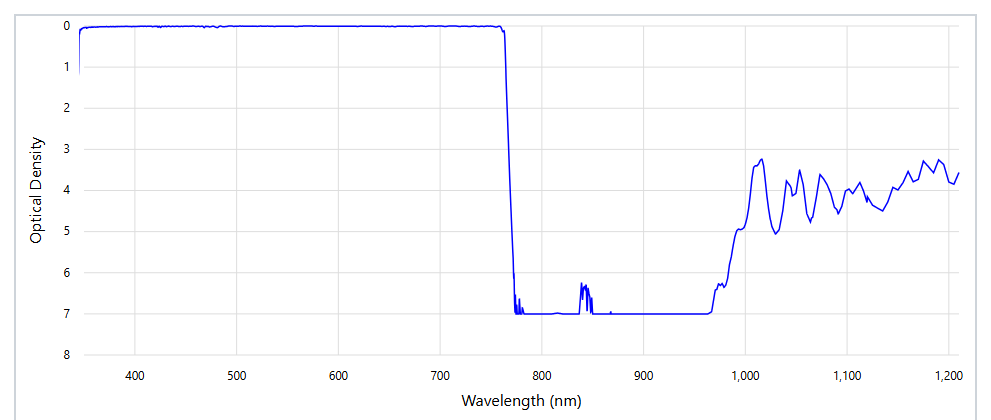

Blocking Band

OD_abs > 6  780.0–948.0 nm

Blocking Band

OD_avg > 3  948 – 1200 nm

Edge Steepness

0.015

Edge Steepness

189.5 cm^-1

Edge Steepness

Standard (for Raman)

Edge Steepness

11.7

Edge Wavelength

765.5 nm

Transition Width

19.5 nm

Transition Width

313 cm^-1

Angle of Incidence

0 ± 2°

Cone Half-angle

5°

Clear Aperture

22 mm

Transverse Dimensions, Diameter

25 mm

Filter Thickness, Mounted

3.5 mm

Filter Thickness Tolerance, Mounted

± 0.1 mm

Filter Thickness, Unmounted

2.0 mm

Filter Thickness Tolerance, Unmounted

± 0.1 mm

Surface Quality (Scratch-Dig)

60-40

Filter Effective Index

1.73

Optical Damage Rating

Not tested

Orientation

Arrow on ring is preferred direction of propagation of light
