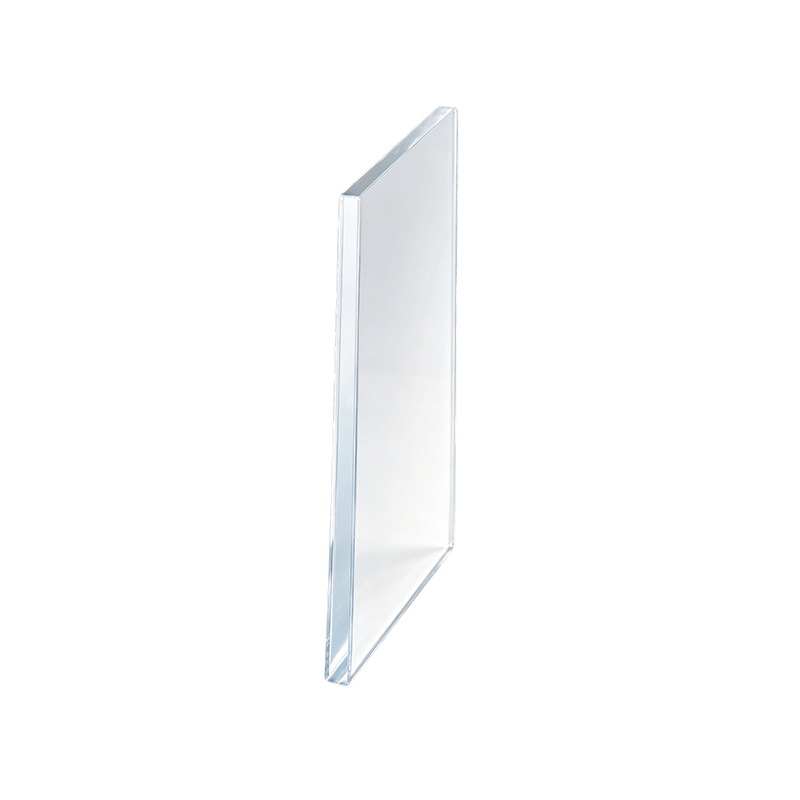

    • 930 nm Dichroic Filter

    The 930 nm Dichroic Beamsplitter is a highperformance splitting element designed for fluorescence imaging, spectral analysis, machine vision, and research optical systems. Manufactured with precision multilayer dielectric coatings, it provides high transmission in the nearinfrared band (750-880 nm) and high reflection in the 980-1140 nm band at a 45° angle of incidence. The filter features a steep cutoff edge, excellent wavefront quality, and robust environmental reliability. It is particularly suited for applications requiring efficient beam separation and lowaberration imaging.

    Product features：Average transmission > 93 % in the 750–880 nm band；High reflection in the 980–1140 nm band；930 nm cut‑off wavelength；Optimised for 45° incidence optical paths；High environmental stability and long service life；Suitable for high‑power illumination systems

    Part Number：MP-DF-930

    Application area：Fluorescence microscopy | Confocal microscopy | Raman spectroscopy systems | Laser beam separation | Research and laboratory equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Edge Wavelength Transmission Band Reflection Band

    930 nm 750–850 nm，Tavg >93% 980–1400 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Transmission Band

    Tavg > 93%  750 – 850 nm

    Reflection Band

    980 – 1140 nm

    Edge Steepness

    Standard (for Fluorescence)

    Edge Wavelength

    930nm

    Angle of Incidence

    45 ± 1.5 °

    Cone Half-angle

    2°

    Flatness / RWE Classification

    Image-splitting

    Reflected Wavefront Error

    < 2λ P-V RWE @ 632.8

    Clear Aperture

    ≥ 80% (elliptical)

    Transverse Dimensions, LxW

    25.2 mm x 35.6 mm

    Filter Thickness, Unmounted

    2.0mm

    Filter Thickness Tolerance, Unmounted

    ± 0.1mm

    Surface Quality (Scratch-Dig)

    60-40

    Filter Effective Index

    1.75

    Optical Damage Rating

    Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.

    Orientation

    Reflective surface marked with part-Orient in incoming light



    Spectral Characteristic Curves

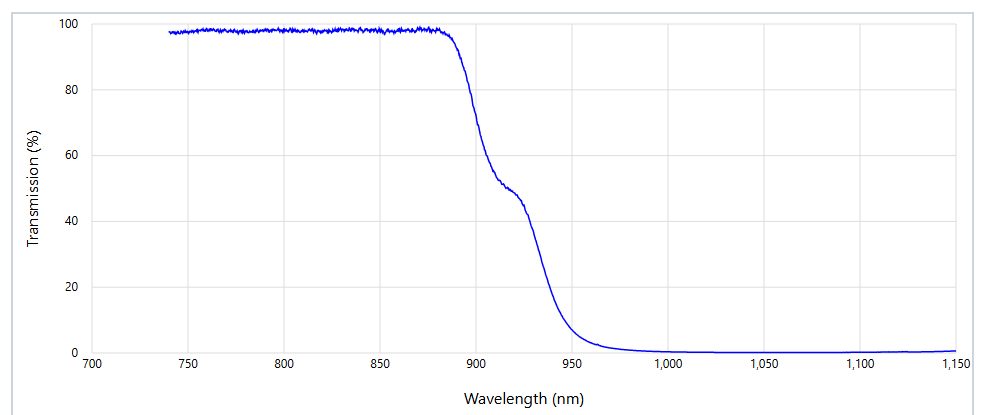

    Transmittance-Wavelength Spectrum

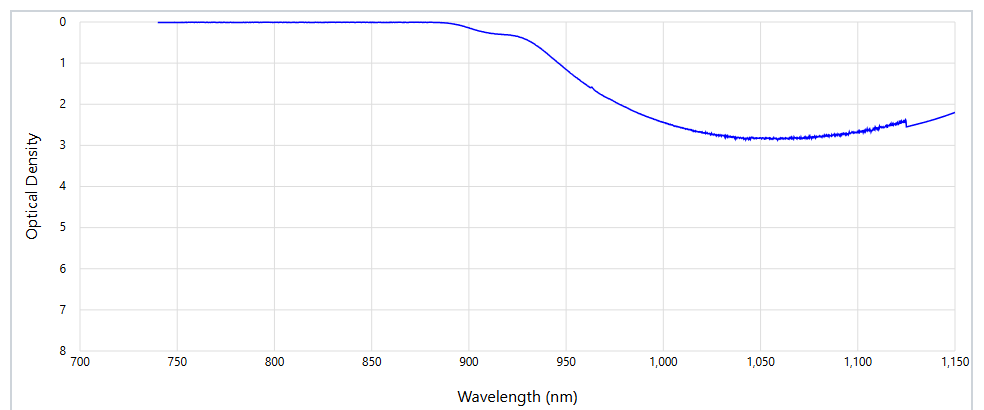

    Optical Density Spectrum



    Optional Configurations

    --
