670nm Short-Pass Dichroic Filter

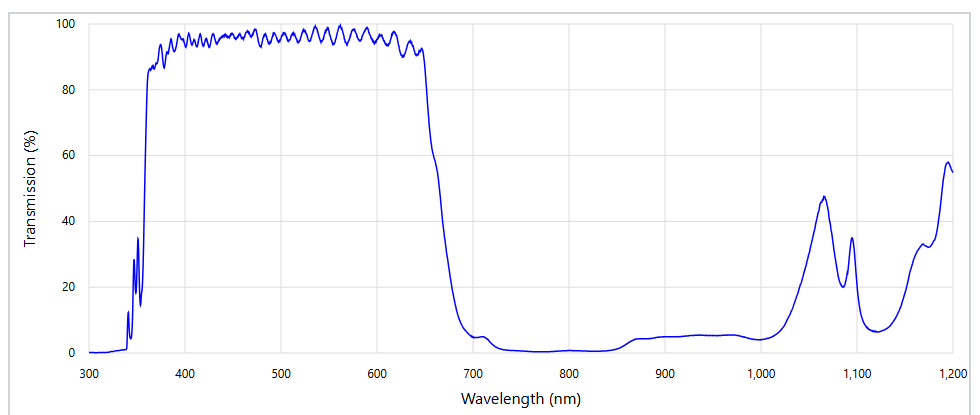

This product is a 670 nm shortpass dichroic beamsplitter specifically designed for optical systems with a 45°angle of incidence. Manufactured using high-performance dielectric multilayer coating technology, it provides high transmission with an average transmittance greater than 90% over the 360-650 nm band, while simultaneously achieving efficient reflection in the near-infrared regions of 680-1080 nm (s-polarization) and 700-1010 nm (p-polarization). The filter features standard fluorescence-grade edge steepness, excellent spectral stability, and outstanding environmental reliability. It is suitable for laser beam splitting, fluorescence microscopy, multispectral imaging, and biomedical detection applications. With a laser-grade optical flatness design, the filter is ideal for optical systems that demand high beam quality, offering a stable and reliable spectral separation solution for research, medical, bioanalytical, and industrial inspection equipment.
